Automatic Transaxle Location Index

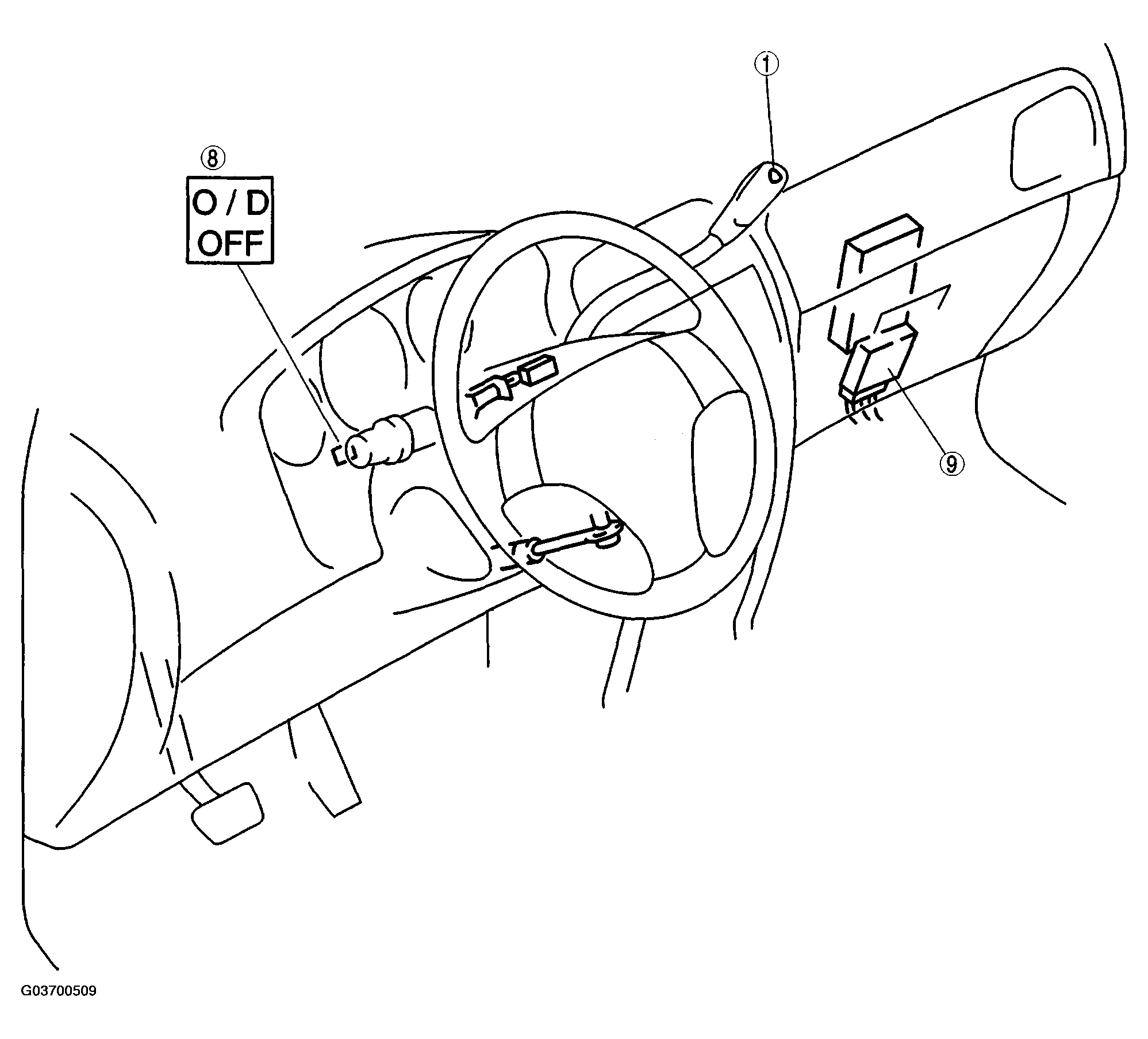

Fig 1: Locating O/D Off Switch

G03700509

Courtesy of MAZDA MOTORS CORP.

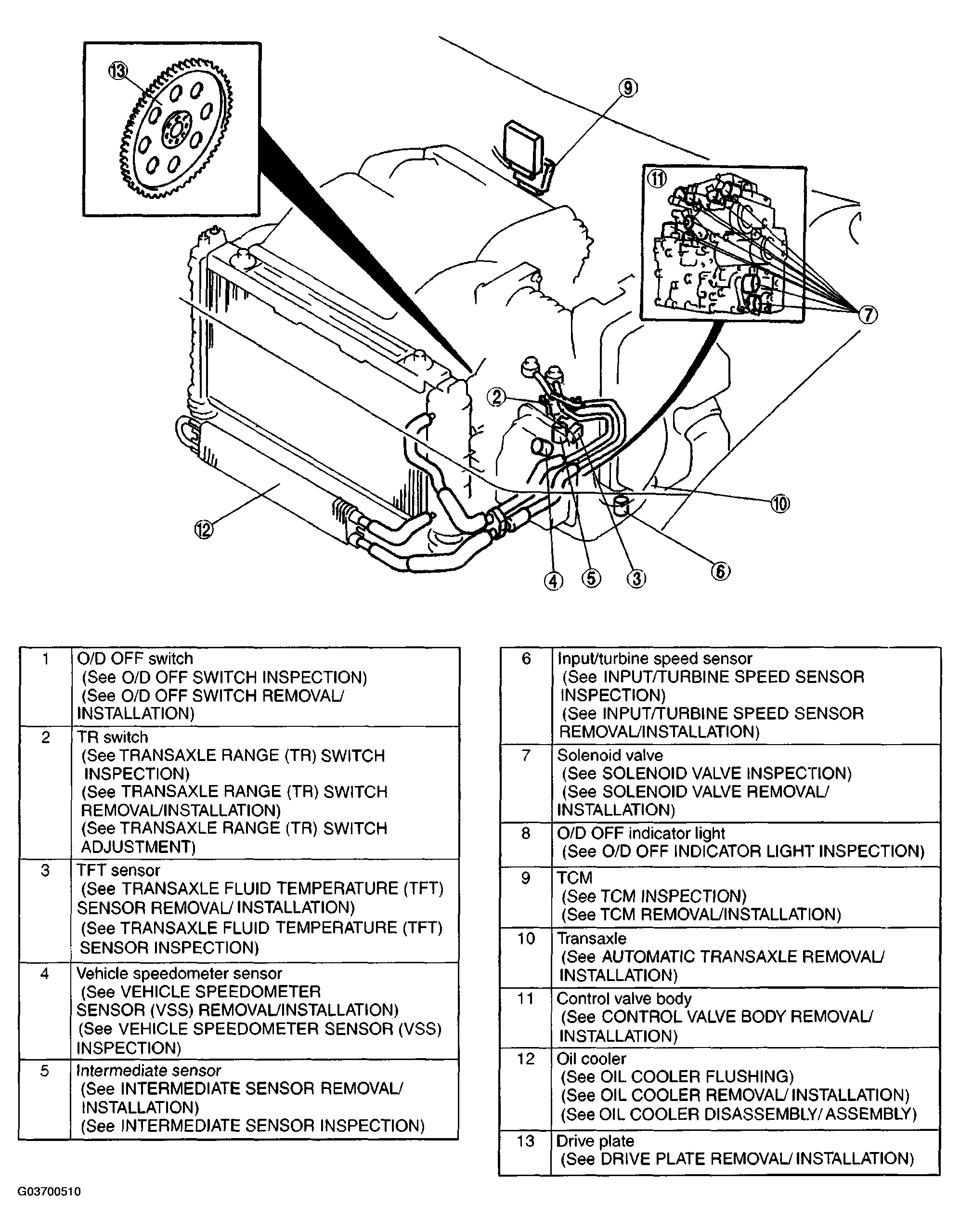

Fig 2: Identifying Automatic Transaxle Components

G03700510

Courtesy of MAZDA MOTORS CORP.
