Sliding Door Circuit Contact Connector End View

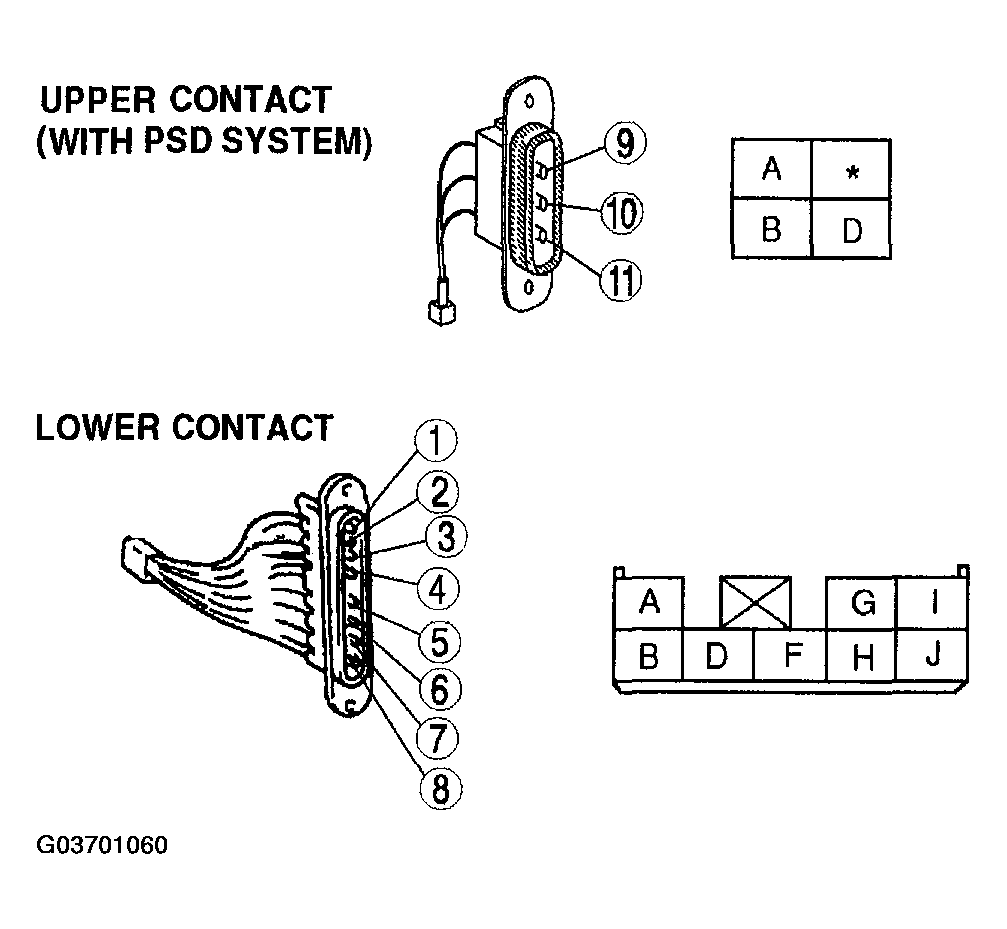

Fig 1: Sliding Door Circuit Contact Connector End View
G03701060Courtesy of MAZDA MOTORS CORP.

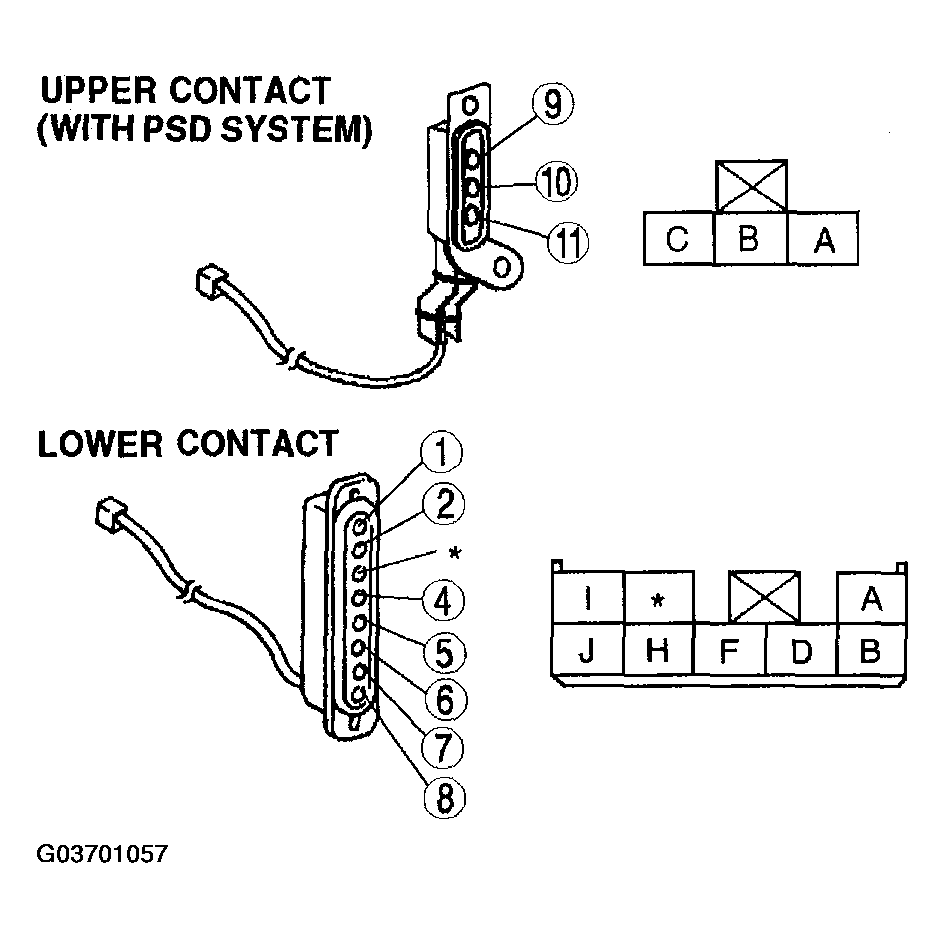

Fig 1: Sliding Door Circuit Contact Connector End View
G03701057Courtesy of MAZDA MOTORS CORP.
