Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting (Engine Control System) AJ >> No.1 Melting Of Main Or Other Fuses

No.1 Melting Of Main Or Other Fuses

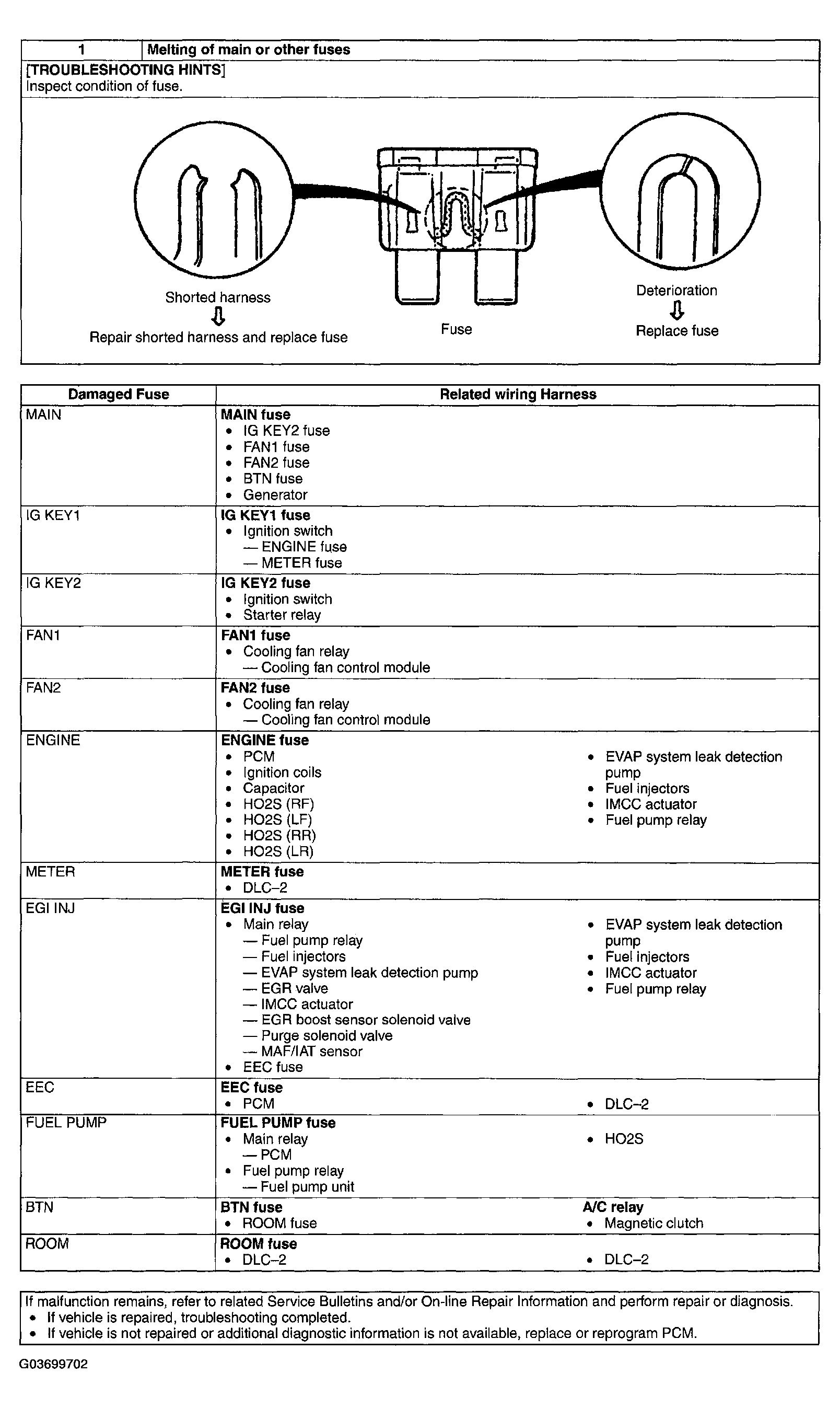

Fig 1: Troubleshooting Melting Fuses

G03699702

Courtesy of MAZDA MOTORS CORP.
