DTC 31: Brake Switch: Notes

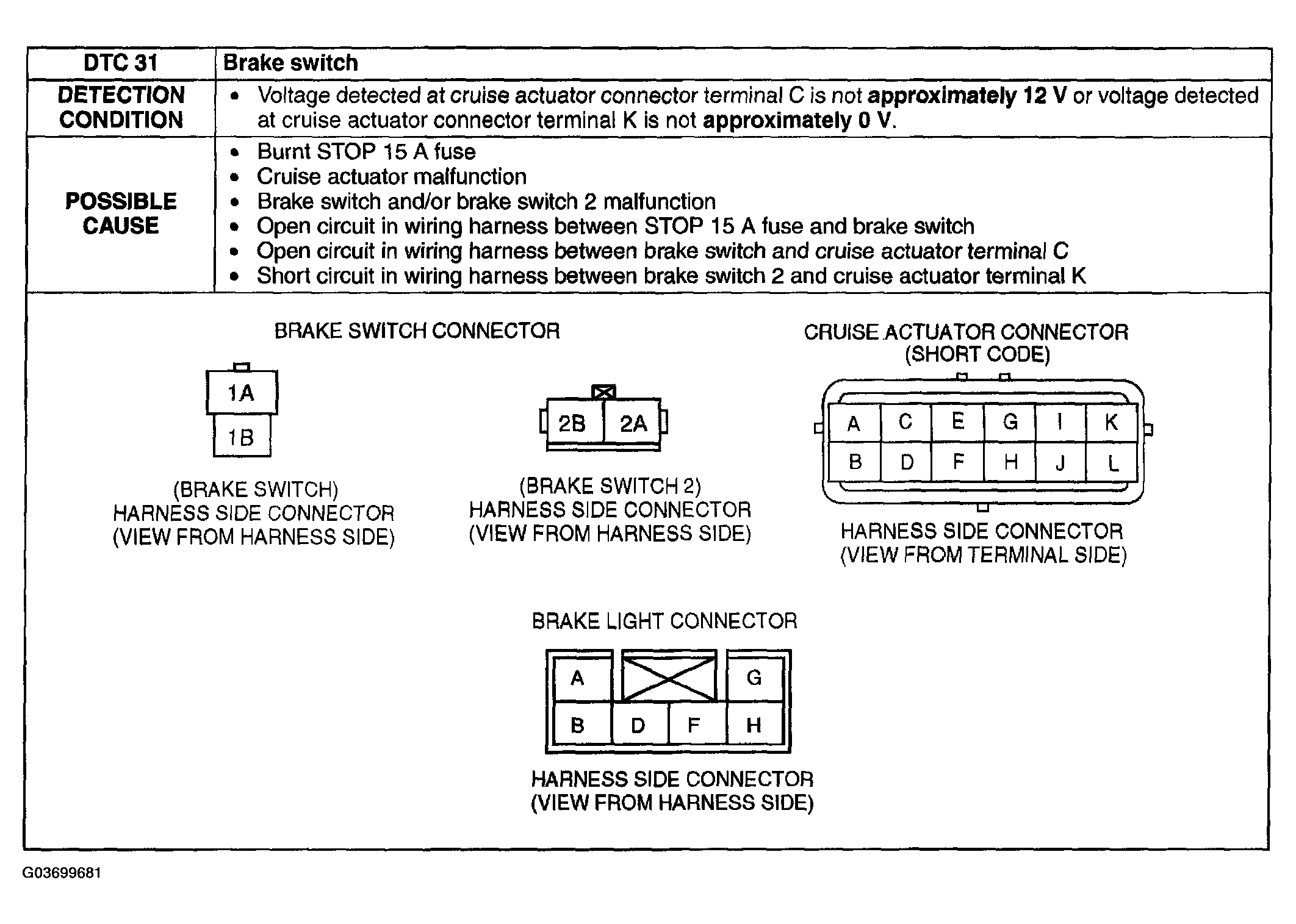

Fig 1: DTC 31 Detection Condition And Possible Causes

G03699681

Courtesy of MAZDA MOTORS CORP.
