Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> On-Board Diagnostic (Cruise Control System) >> DTC 07: Brake Switch, Brake Switch 2 >> Notes

DTC 07: Brake Switch, Brake Switch 2: Notes

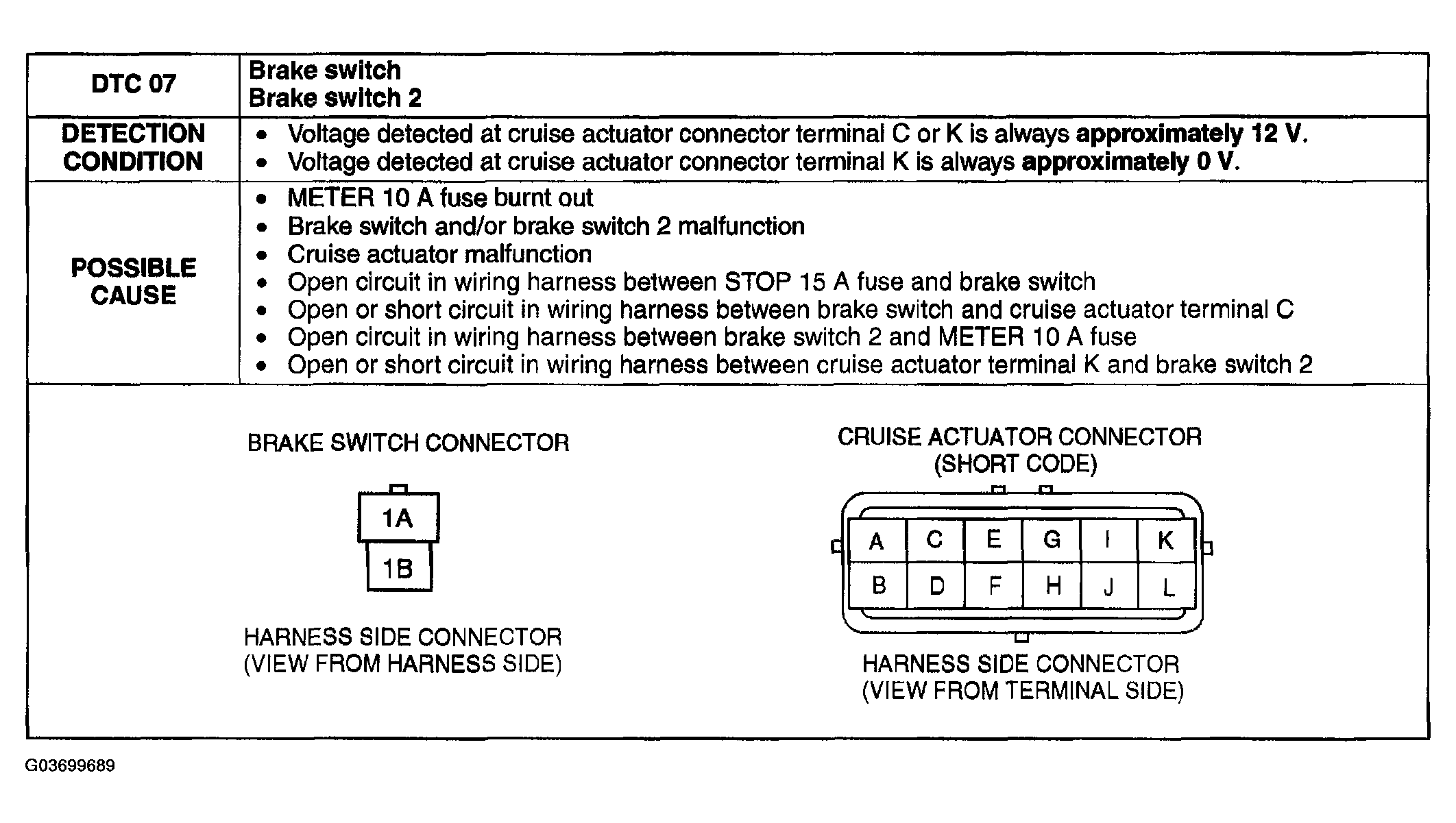

Fig 1: DTC 07 Detection Condition And Possible Causes

G03699689

Courtesy of MAZDA MOTORS CORP.
