Easy Closure Control Module Inspection

  1. Remove the easy closure control module.
  2. Inspect for continuity between the latch position switch terminals using an ohmmeter.
    • If not as specified, replace the easy closure control module.

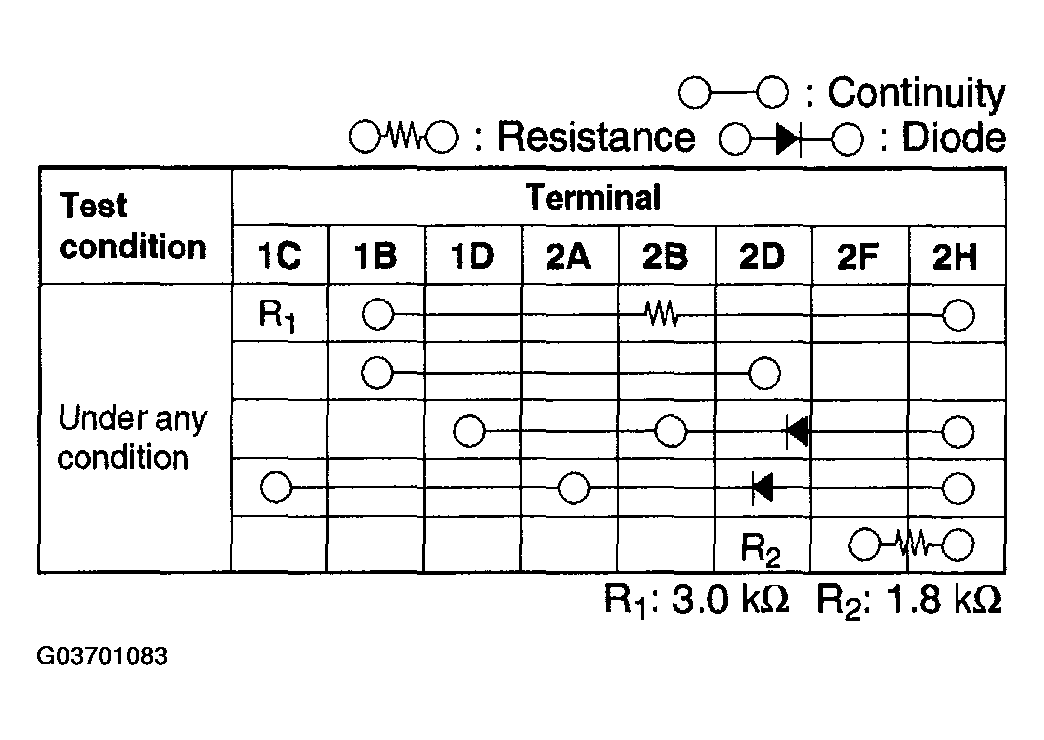

    Fig 1: Latch Position Switch Terminals Continuity Chart
    G03701083Courtesy of MAZDA MOTORS CORP.
    Fig 2: Checking Continuity Between Latch Position Switch Terminals
    G03701084Courtesy of MAZDA MOTORS CORP.
