Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

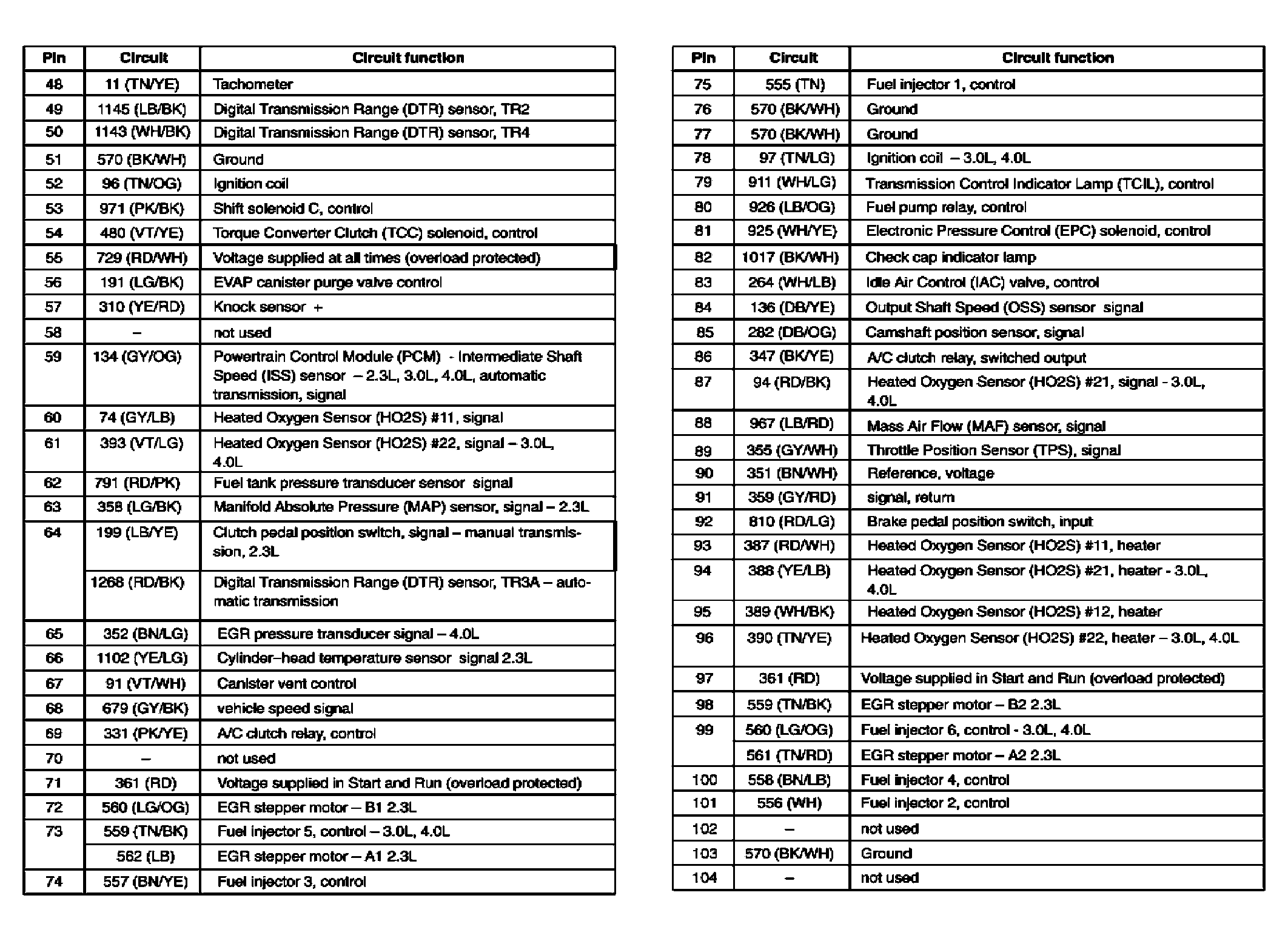

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03988000

Courtesy of FORD MOTOR CO.
