Removal and Installation

Remove the rotor shield. See DISC BRAKE FRONT, REMOVAL/INSTALLATION .
Disconnect the electrical connector.

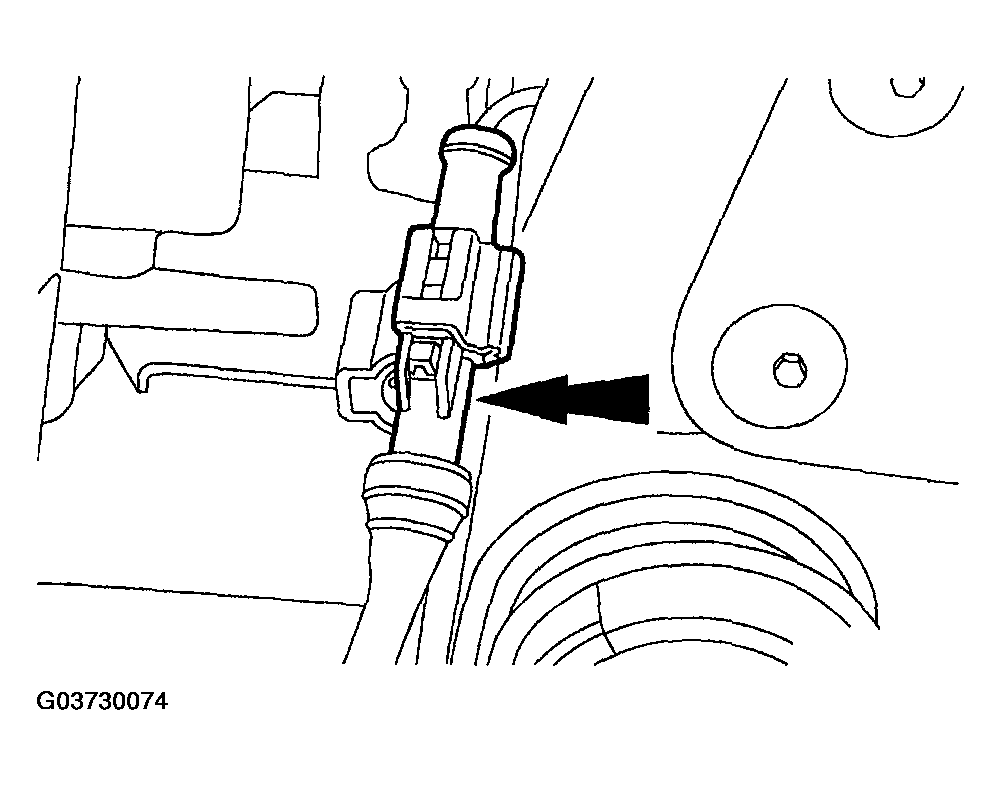

Fig 1: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Unclip the wire from the vehicle frame.

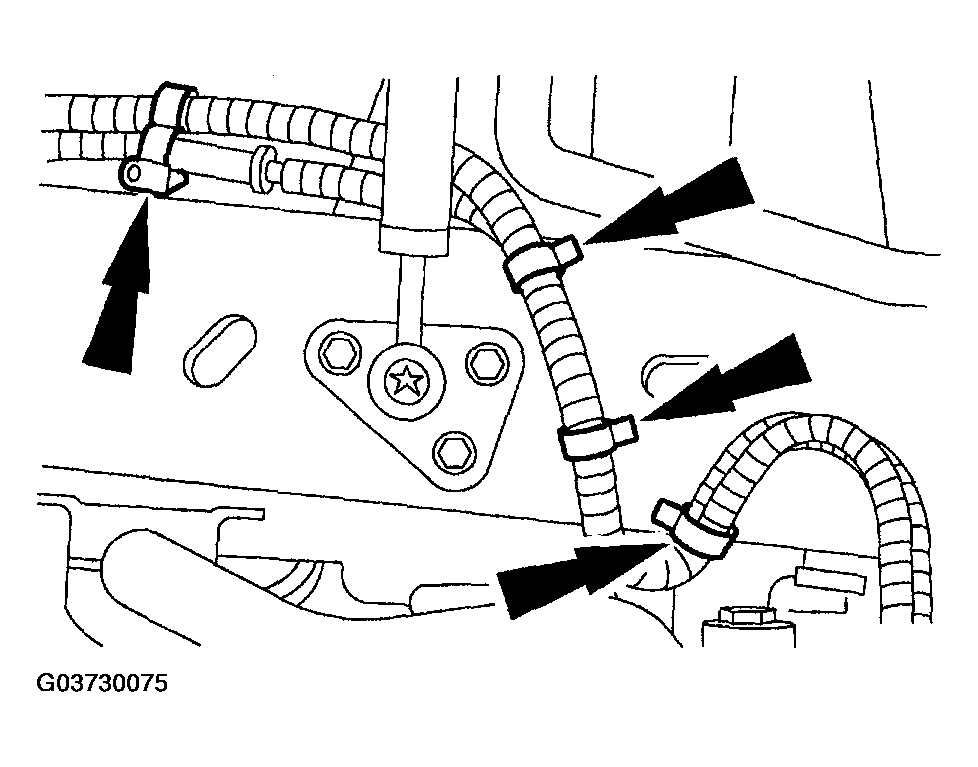

Fig 2: Unclipping Wire From Vehicle Frame
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

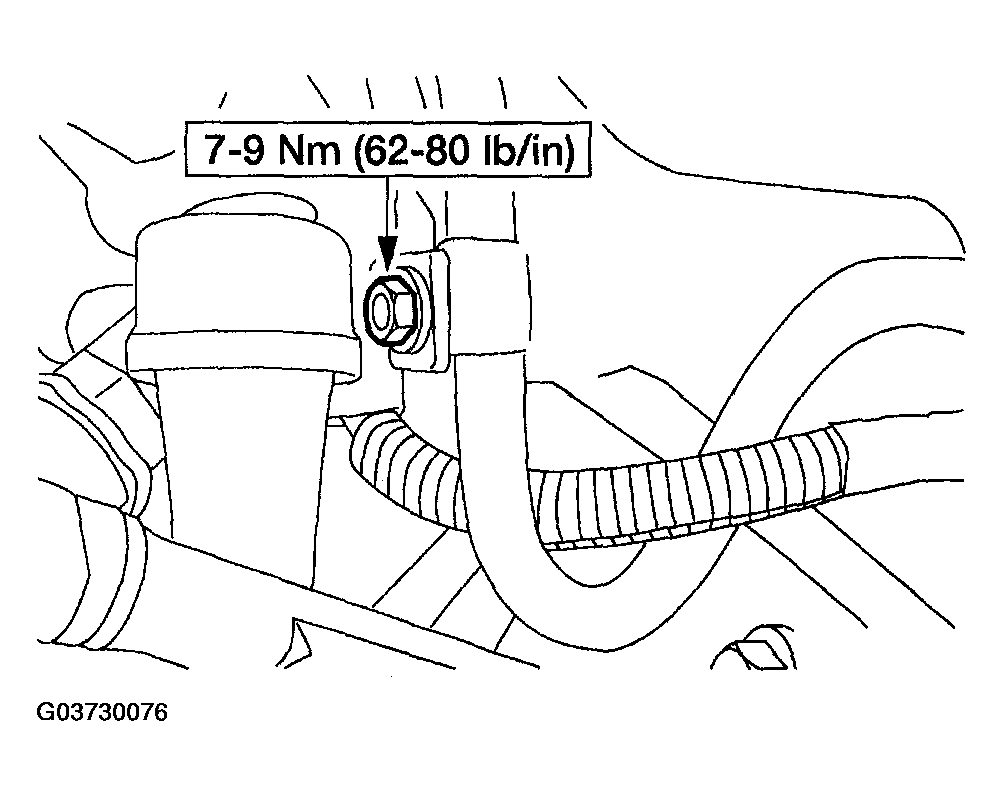

Fig 3: Removing Bolt - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Plug the sensor mount opening and thoroughly clean the mounting surface. Apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A meeting Mazda Specification ESA-M1C198-A.
Remove the front wheel speed sensor.
1. Remove the bolt and the sensor.

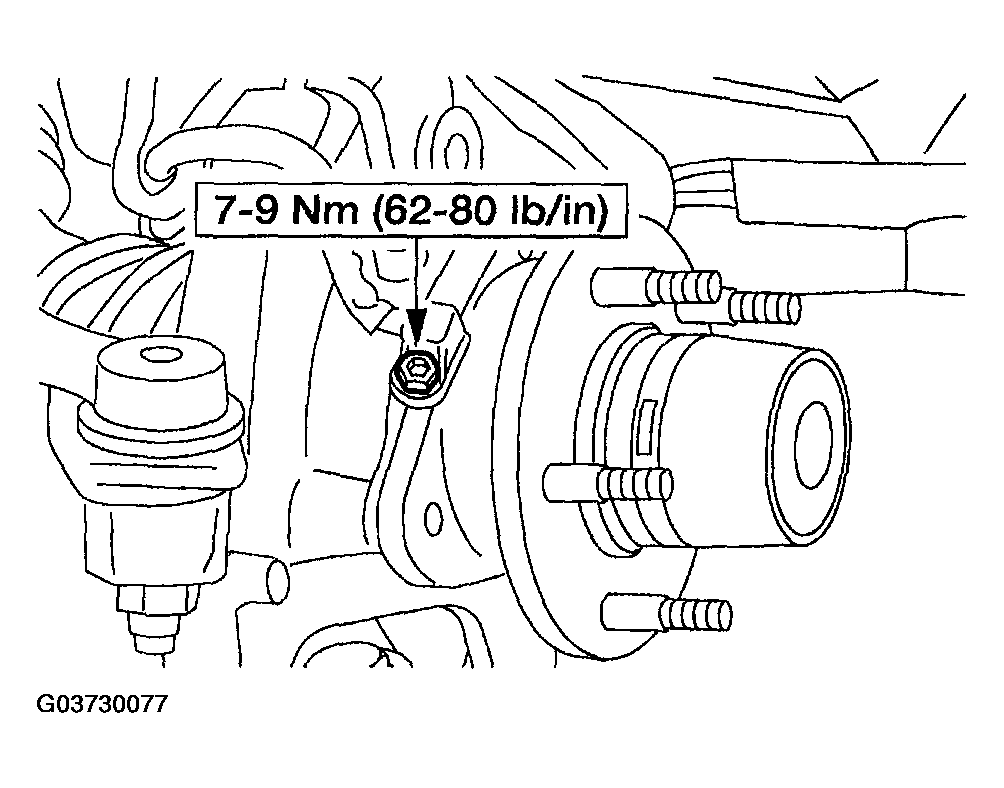

Fig 4: Removing Front Wheel Speed Sensor Bolt - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
