Home >> Mazda >> 2005 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System (L3) >> DTC P2196 >> California Emission Regulation Applicable ATX Model

California Emission Regulation Applicable ATX Model

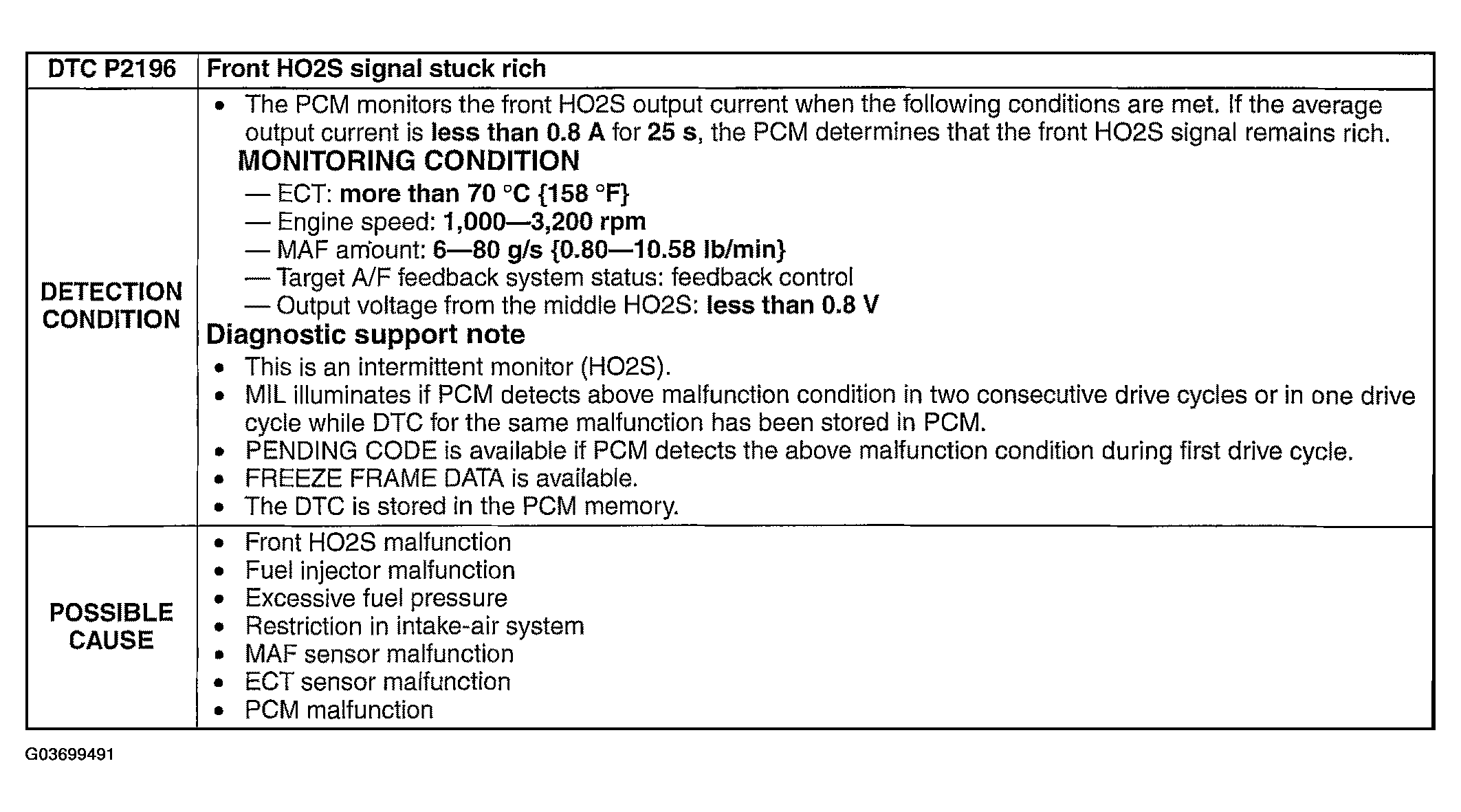

Fig 1: DTC P2196 [L3] (For California) Detection Condition And Possible Cause

G03699491

Courtesy of MAZDA MOTORS CORP.
