On-Board Diagnostic (Engine Control System (L3)
>>
Control System Wiring Diagram
>>
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model

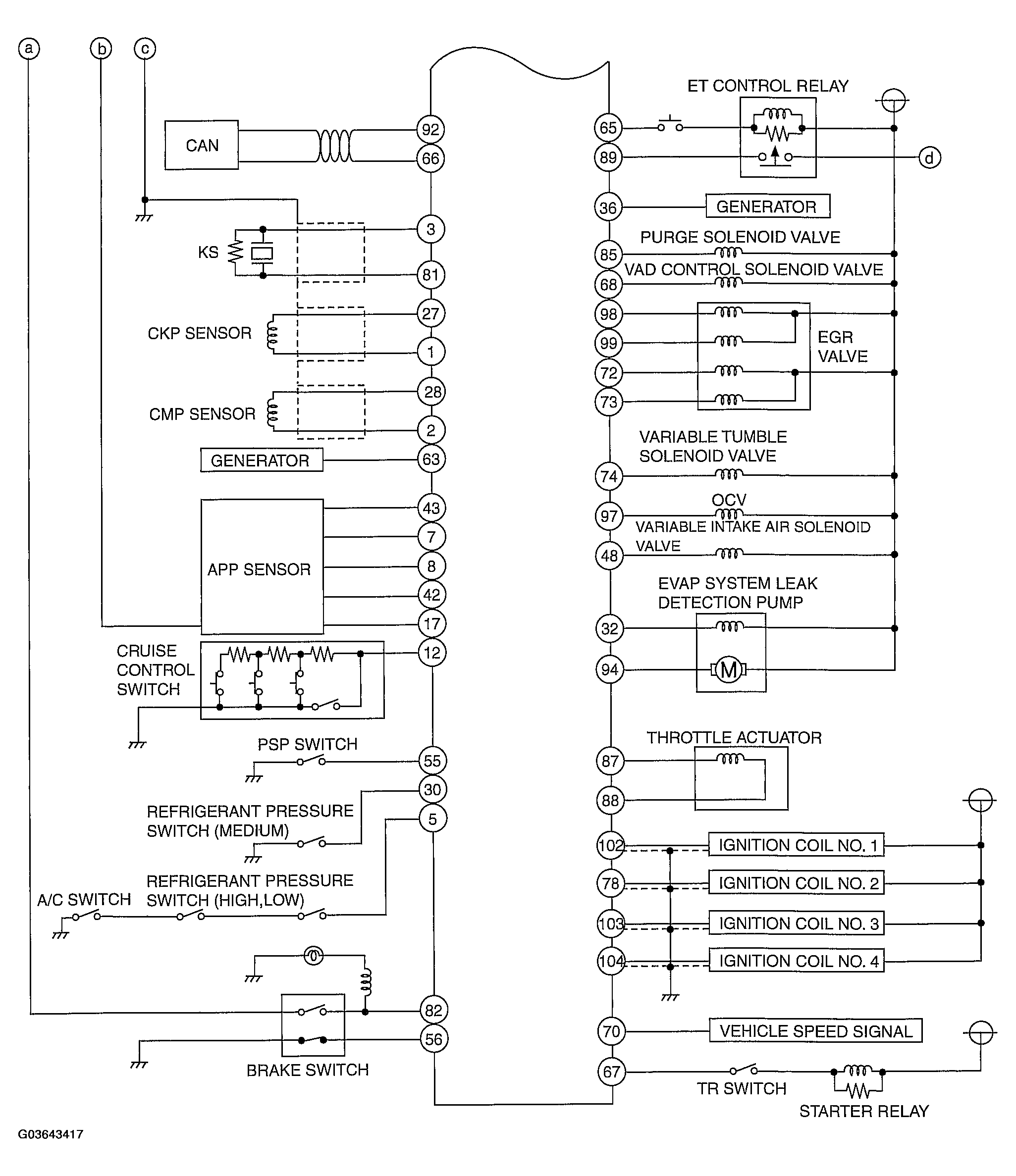

Fig 1: Control System Wiring Diagram [L3] For California Emission Regulation Applicable ATX Model (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

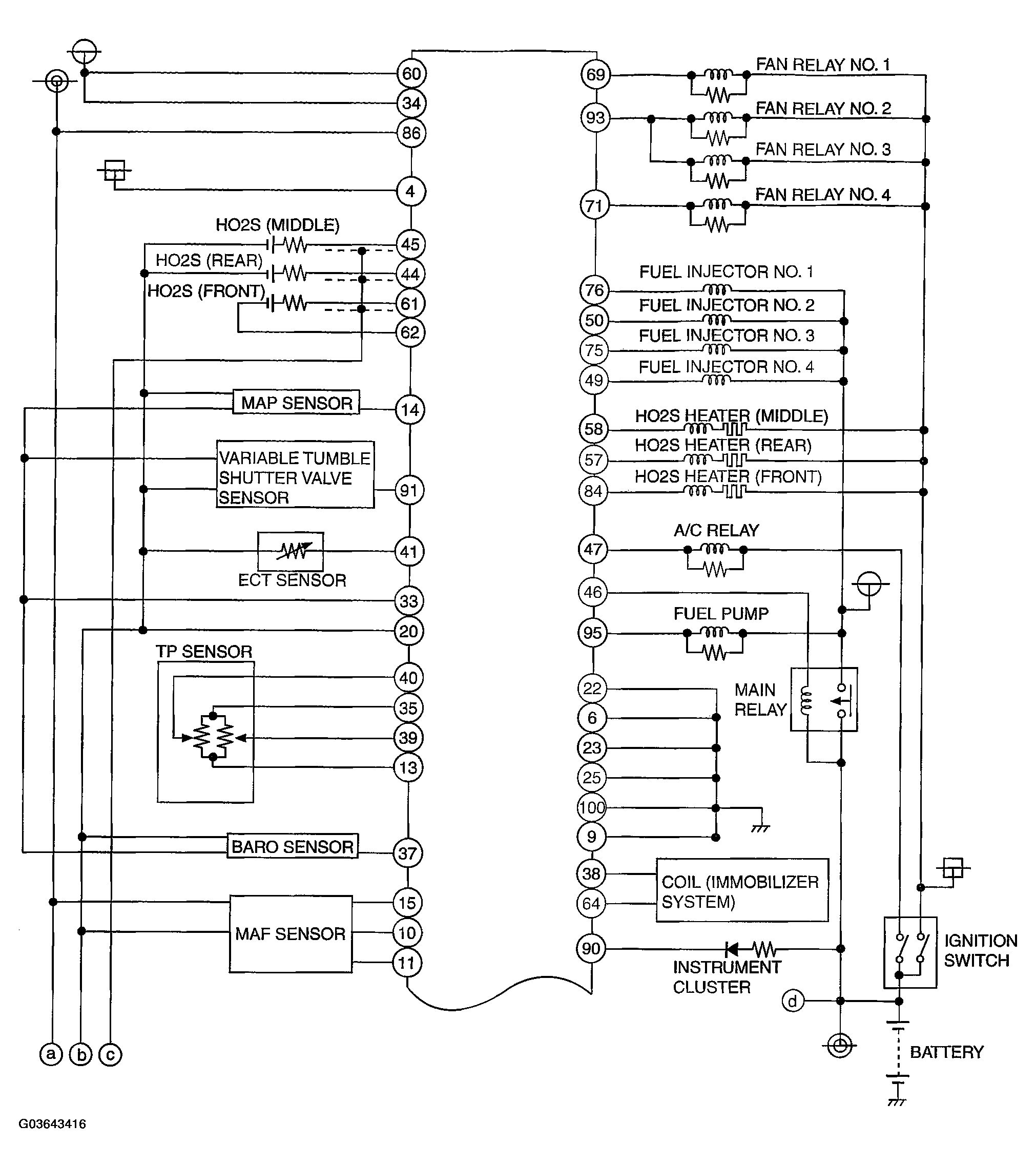

Fig 2: Control System Wiring Diagram [L3] For California Emission Regulation Applicable ATX Model (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
