Pressure control solenoid (+) signal

PCM terminals

• 1G (+)-Negative battery terminal (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• All of the following conditions are met.
  • Ignition switch is turned to the ON position, (engine off)
  • P or N position
  • CTP

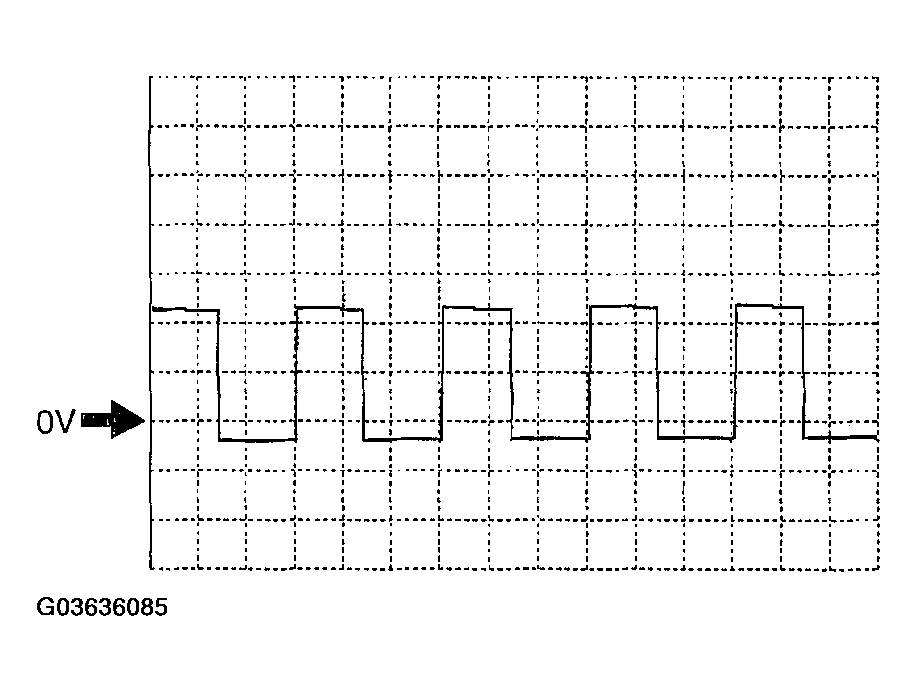

Fig 1: Pressure Control Solenoid (+) Signal Pattern

Courtesy of MAZDA MOTORS CORP.
