Home >> Mazda >> 2005 >> 3 i, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Symptom Troubleshooting [Keyless Entry System) >> No.2 All On-Board Diagnostic Functions Inoperative >> Notes

No.2 All On-Board Diagnostic Functions Inoperative: Notes

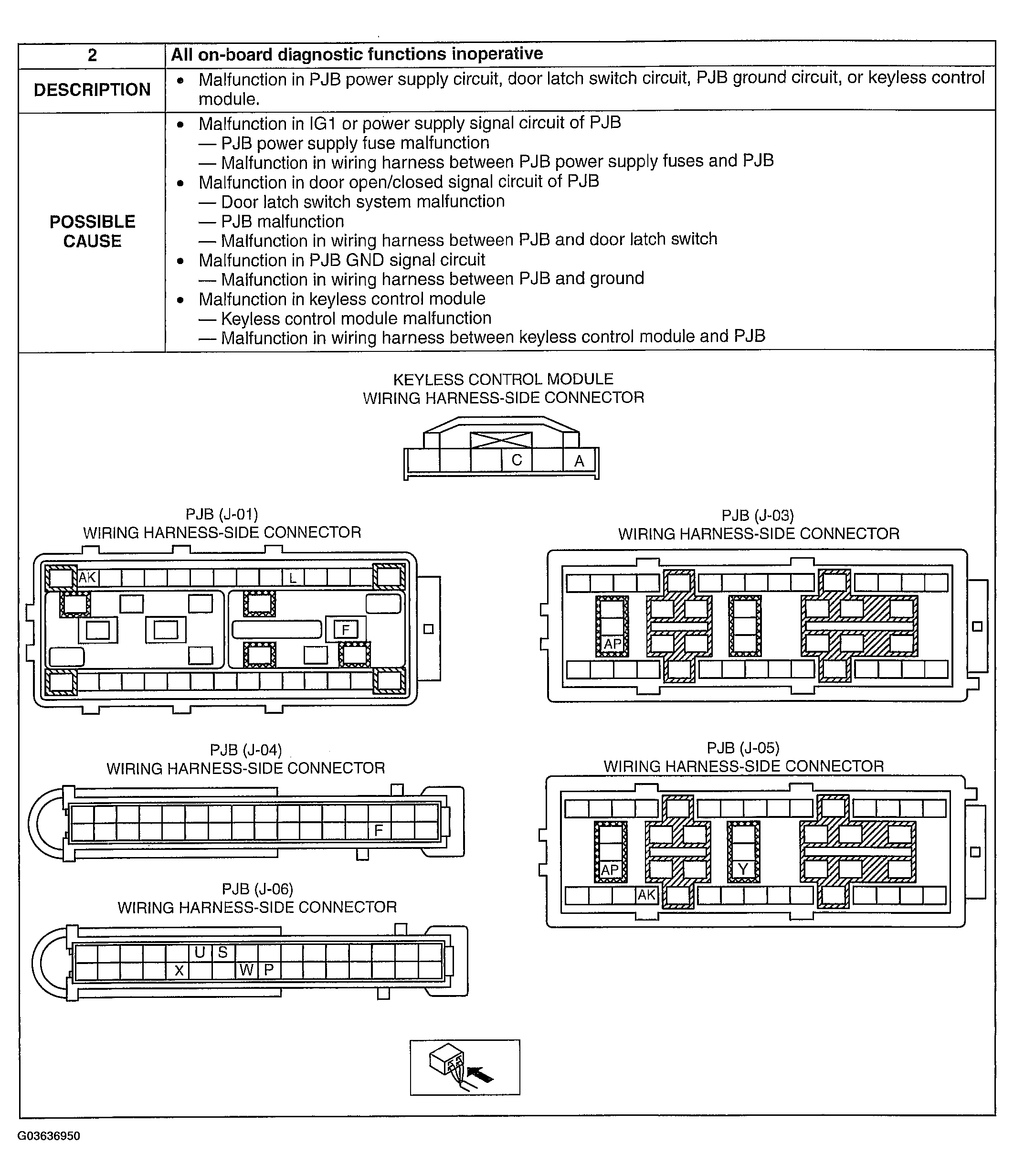

Fig 1: No.2 All On-Board Diagnostic Functions Inoperative Description & Possible Causes

G03636950

Courtesy of MAZDA MOTORS CORP.
