Keyless Entry System On-Board Diagnosis

NOTE:
  • "All doors" includes the liftgate. (5 door)

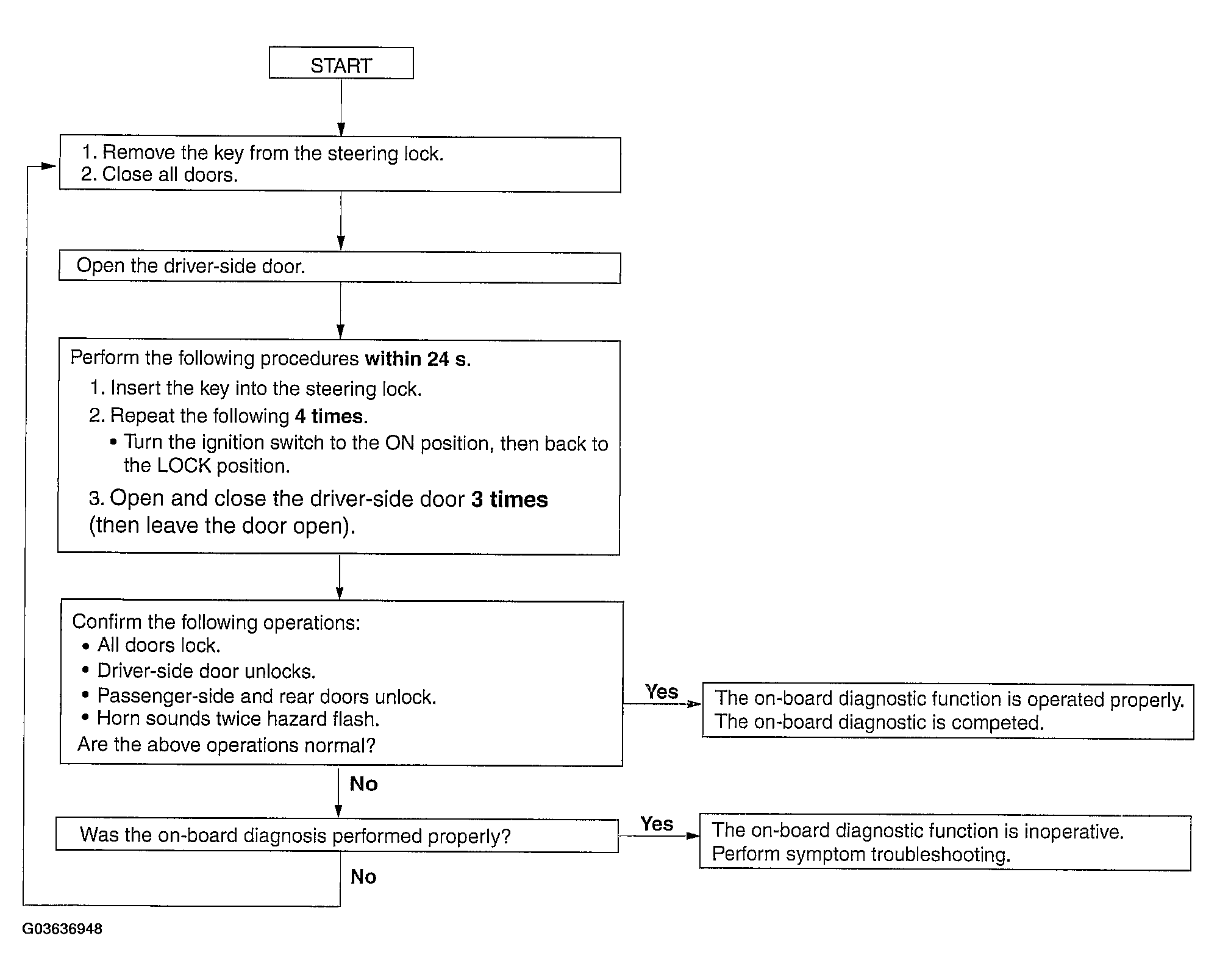

Fig 1: Keyless Entry System On-Board Diagnosis Flow Chart
G03636948Courtesy of MAZDA MOTORS CORP.
