Home >> Mazda >> 2005 >> 3 SP23, 4D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Symptom Troubleshooting [Keyless Entry System) >> Keyless Entry System Wiring Diagram

Keyless Entry System Wiring Diagram

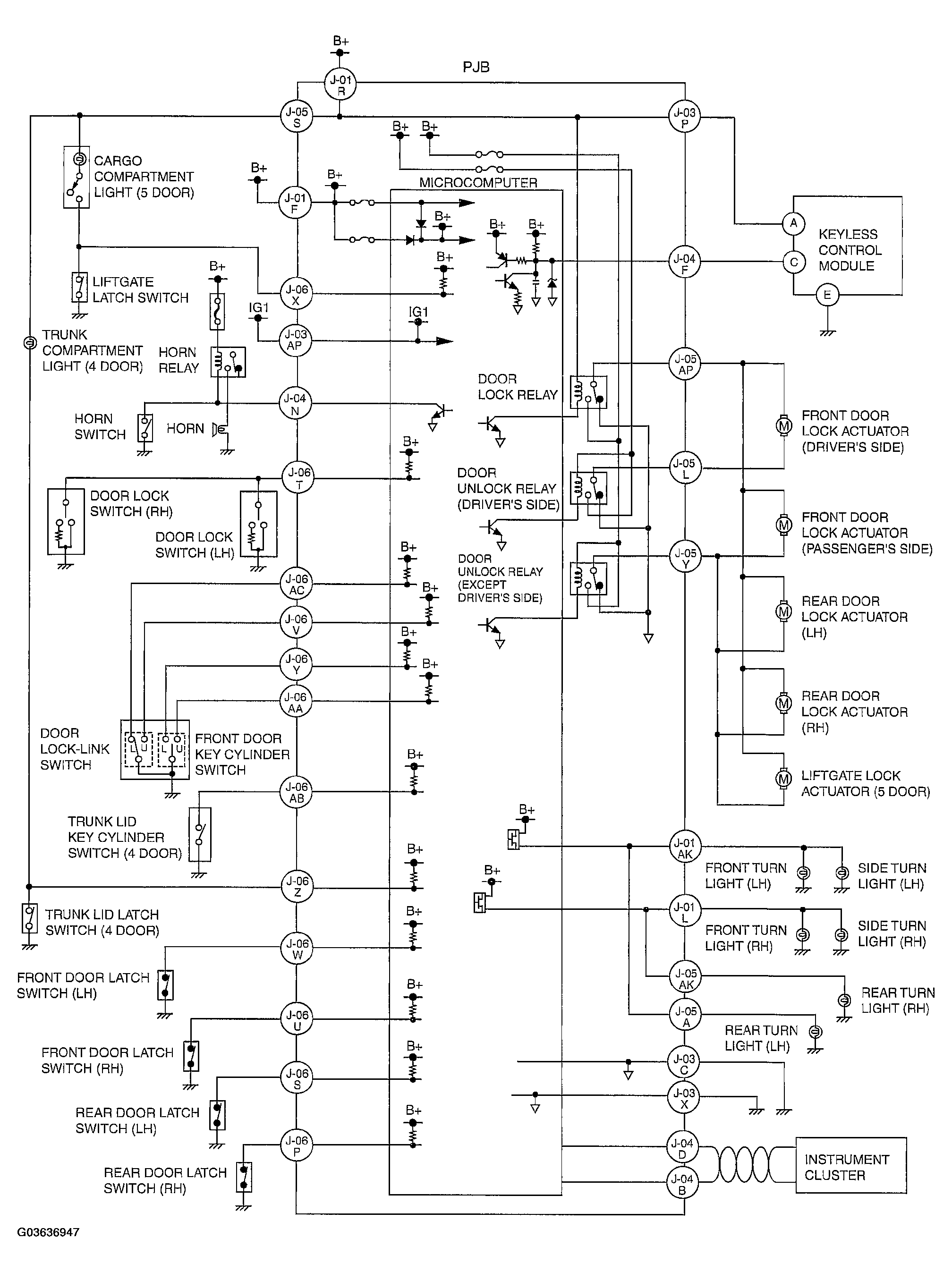

Fig 1: Keyless Entry System Wiring Diagram

G03636947

Courtesy of MAZDA MOTORS CORP.
