Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel.
  2. Disconnect the liftgate ajar switch electrical connector.
    Fig 1: Disconnecting Liftgate Ajar Switch Electrical Connector
    G03727658Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the liftgate latch actuating rod.
    1. Open the clip.
    2. Disconnect the actuating rod.

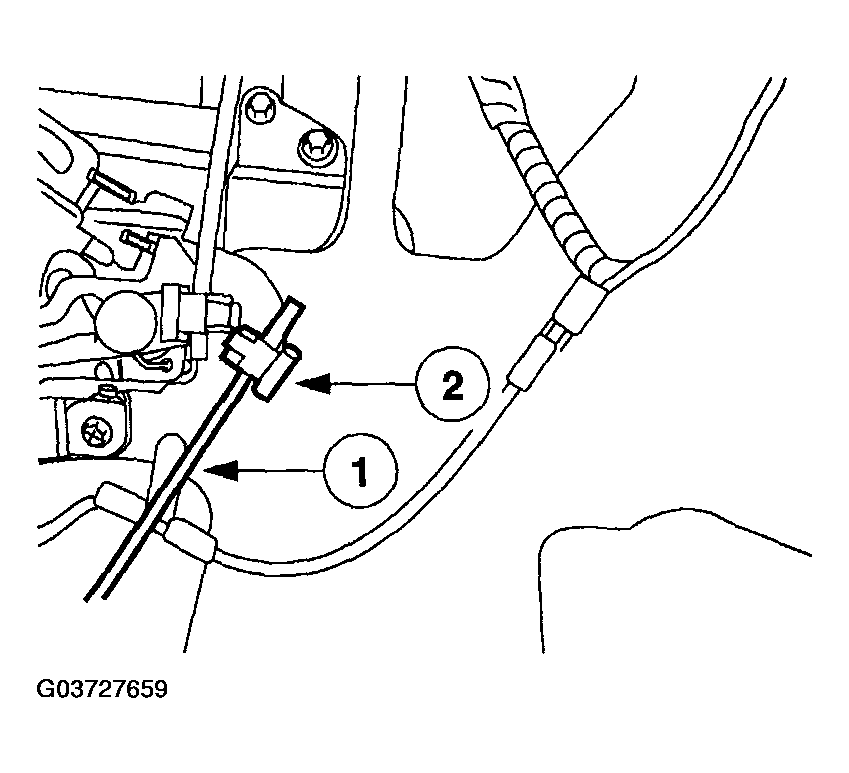

    Fig 2: Disconnecting Liftgate Latch Actuating Rod
    G03727659Courtesy of MAZDA MOTORS CORP.
  4. Remove the liftgate latch bolts.
    • Discard the bolts.

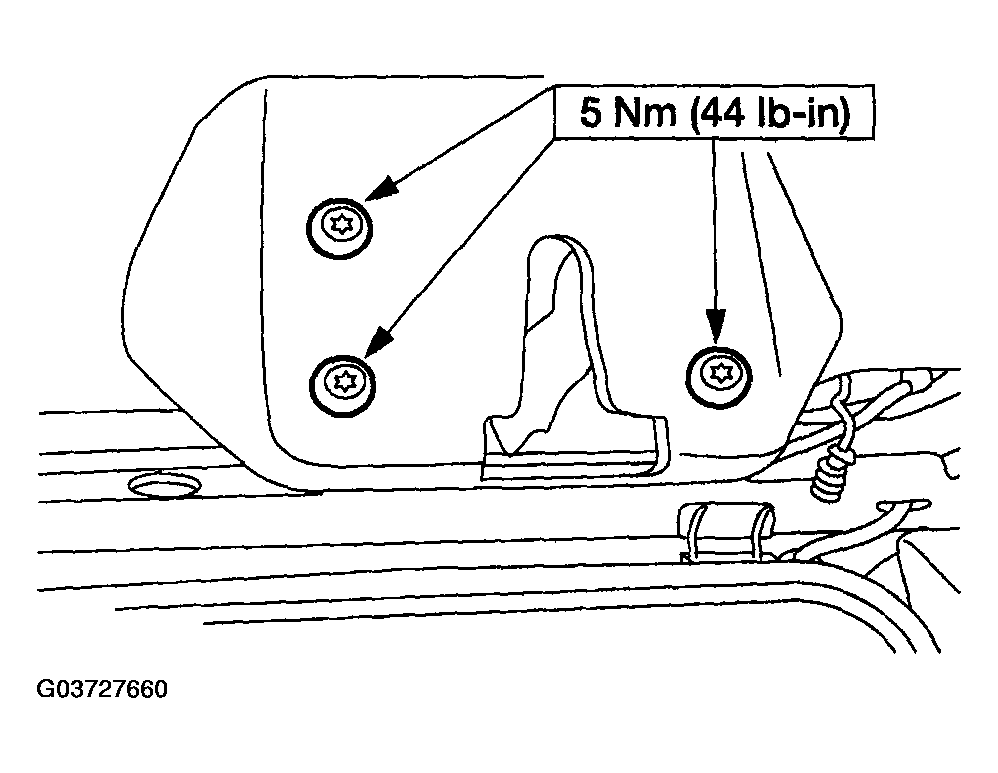

    Fig 3: Removing Liftgate Latch Bolts - With Torque Specification
    G03727660Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate latch.
    NOTE:
    • Make sure the liftgate latch release rod is not Preloading the latch. It should be clipped in a relaxed state with no slack.
    NOTE:
    • Position the liftgate latch release rod by pushing outboard to remove the slack.
  6. To install, reverse the removal procedure.
