Test 5: Positive Crankcase Ventilation (PCV) System
Test 5: Positive Crankcase Ventilation (PCV) System

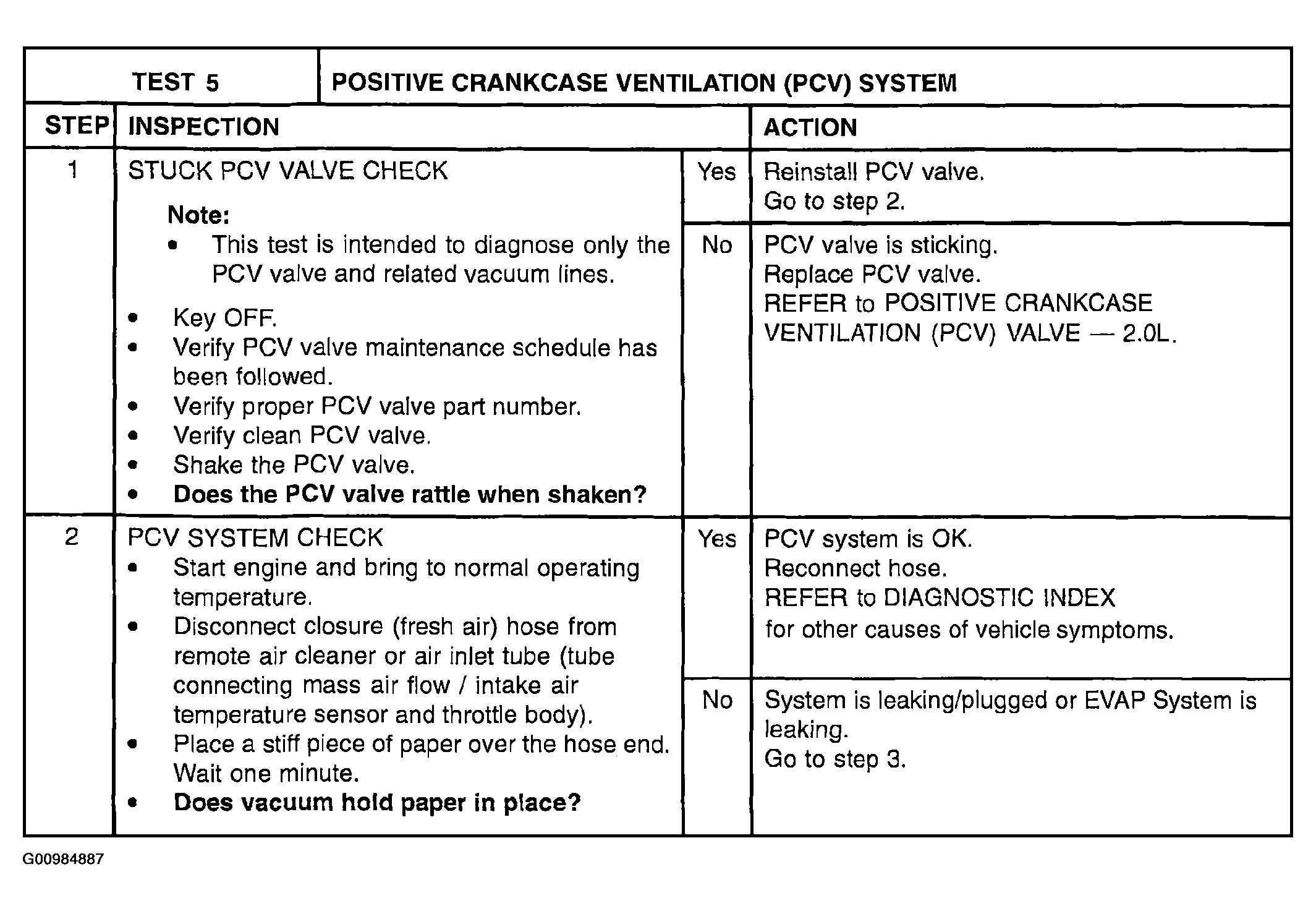

Fig 1: Test 5: Positive Crankcase Ventilation (PCV) System: Inspection (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

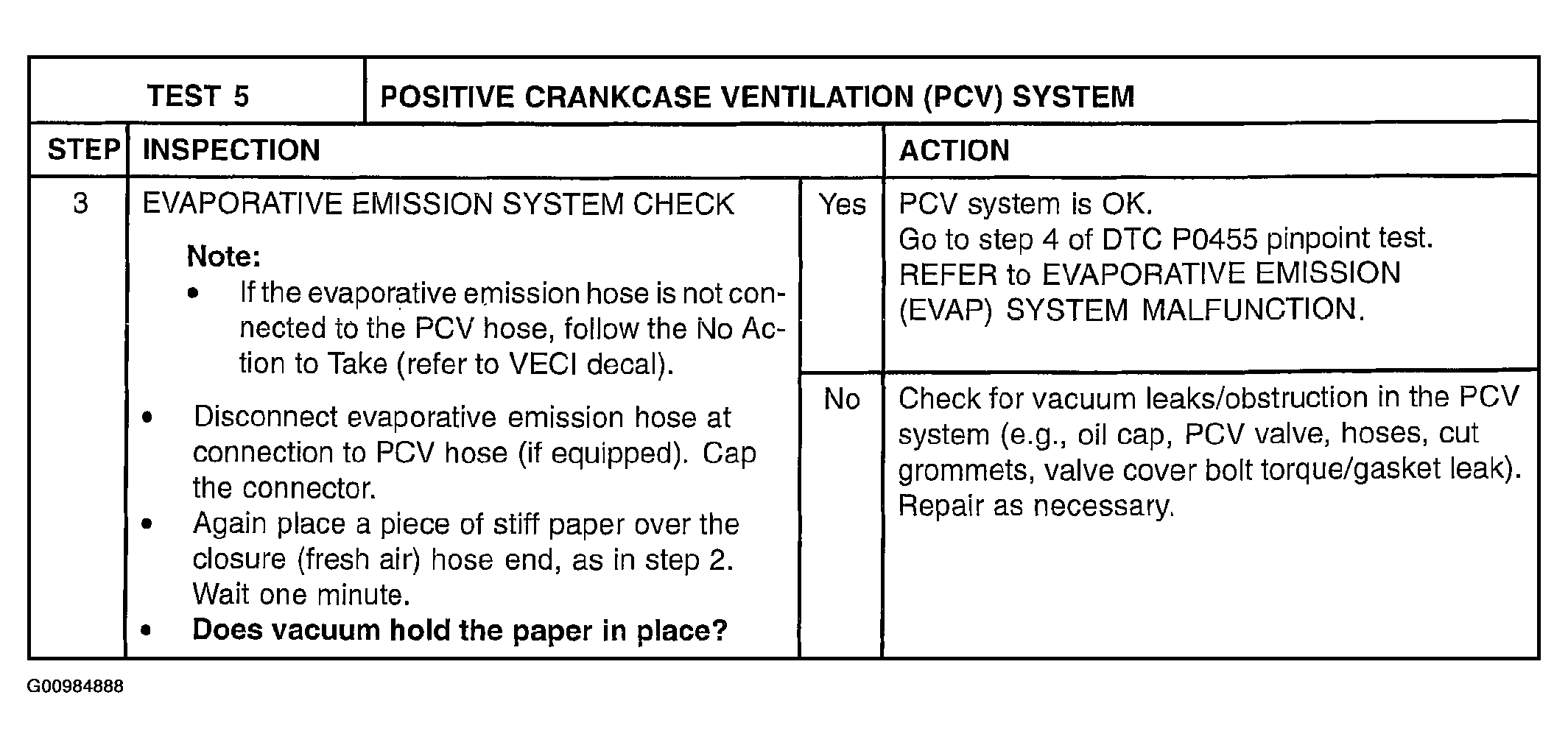

Fig 2: Test 5: Positive Crankcase Ventilation (PCV) System: Inspection (Step 3)
Courtesy of MAZDA MOTORS CORP.
