Mil/TCIL Never On & Mil/TCIL Always On

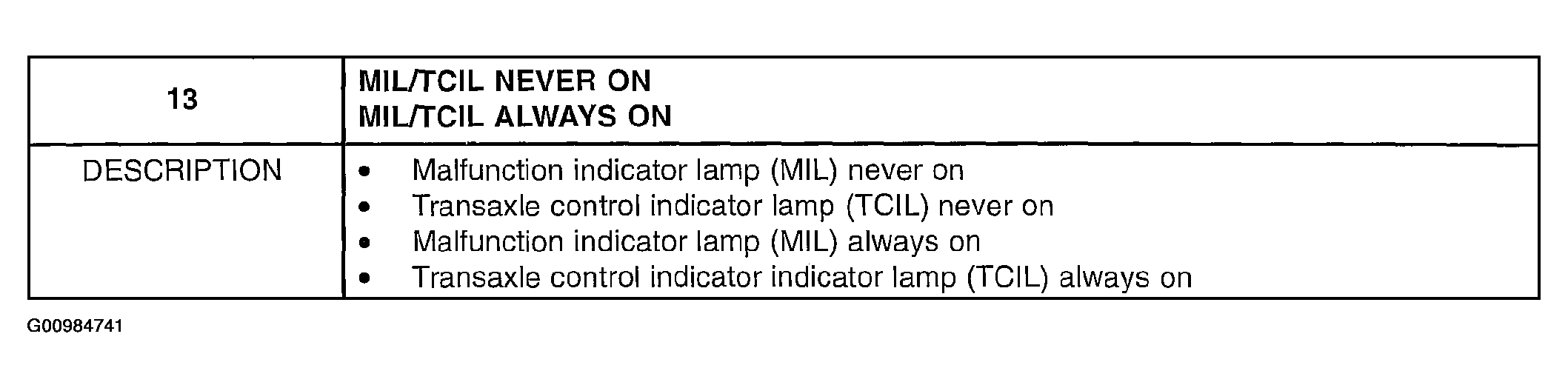

Fig 1: Chart 13 MIL/TCIL Never ON & MIL/TCIL Always ON: Description
Courtesy of MAZDA MOTORS CORP.

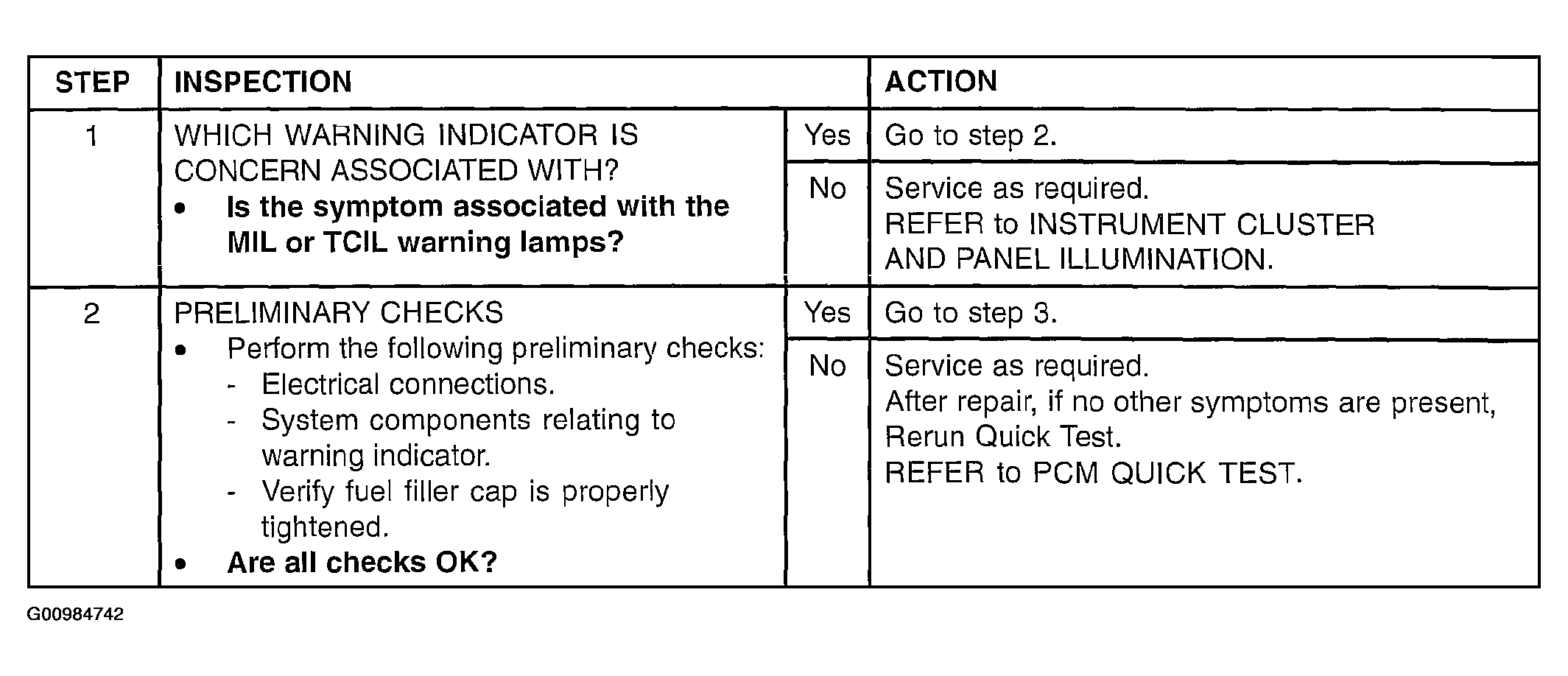

Fig 2: Chart 13 MIL/TCIL Never ON & MIL/TCIL Always ON: Inspection (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

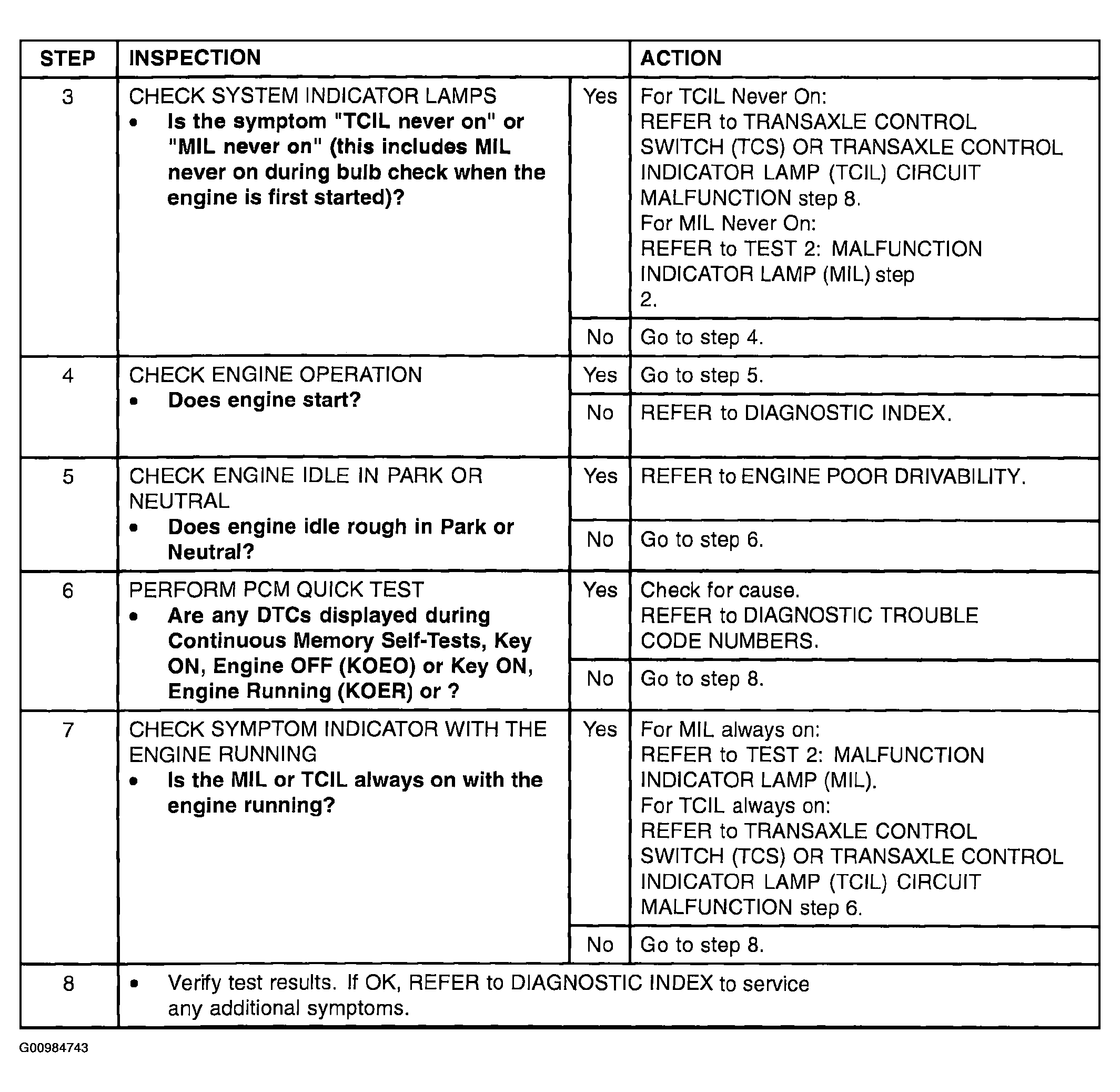

Fig 3: Chart 13 MIL/TCIL Never ON & MIL/TCIL Always ON: Inspection (Steps 3-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
