Pinpoint Test 6: The Defrost System Is Inoperative

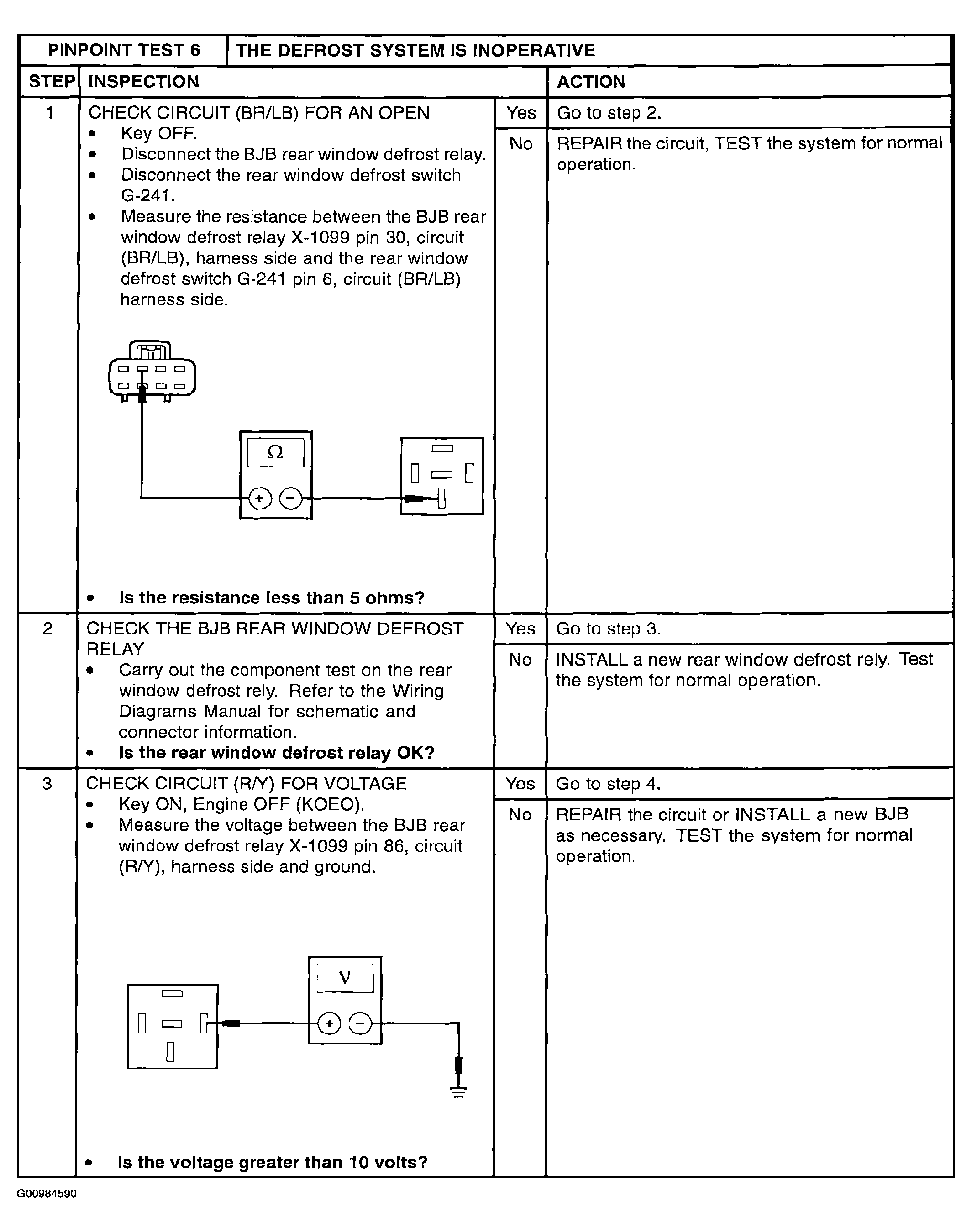

Fig 1: Pinpoint Test 6: The Defrost System Is Inoperative - Inspection Procedure Chart (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

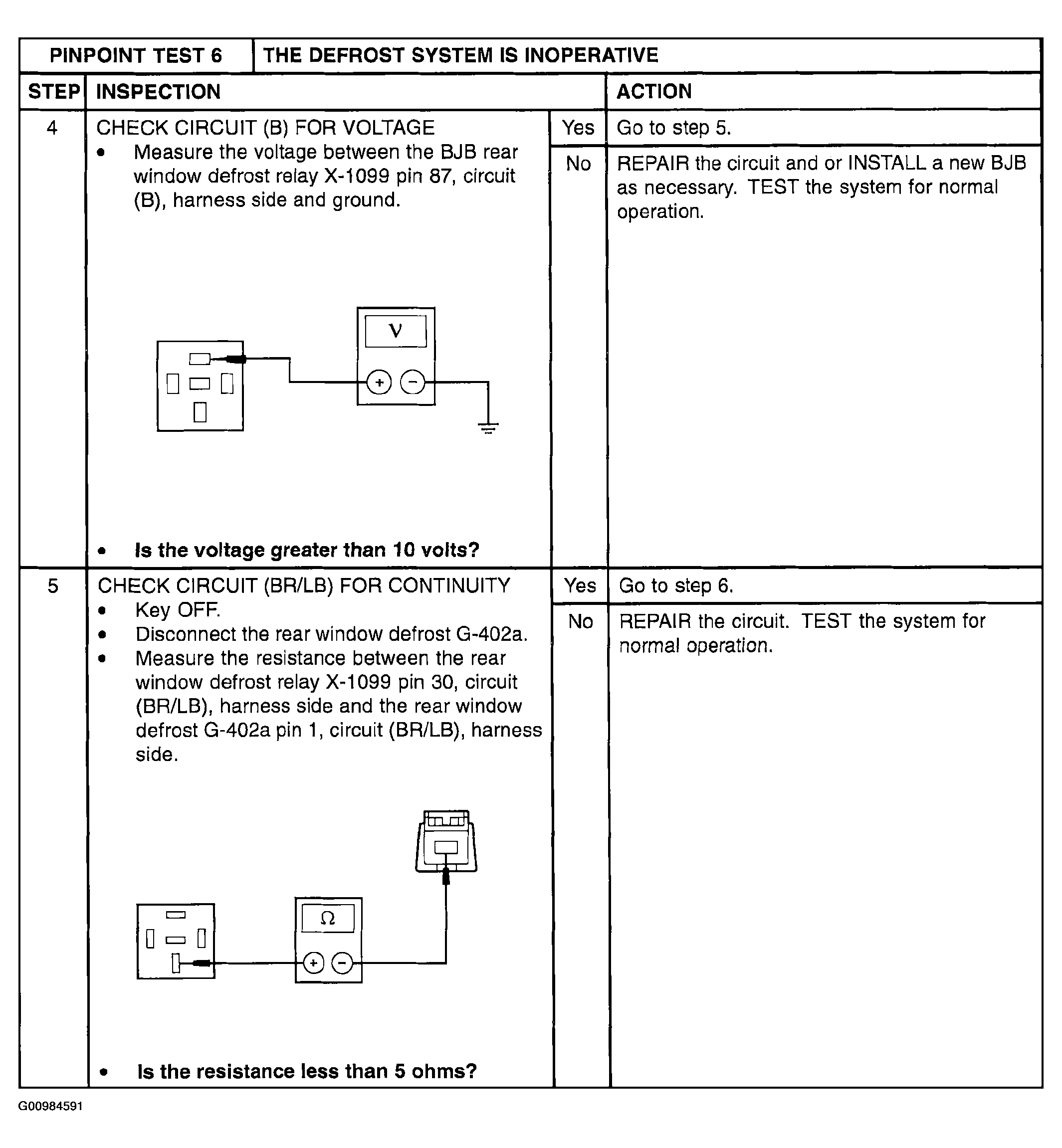

Fig 2: Pinpoint Test 6: The Defrost System Is Inoperative - Inspection Procedure Chart (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

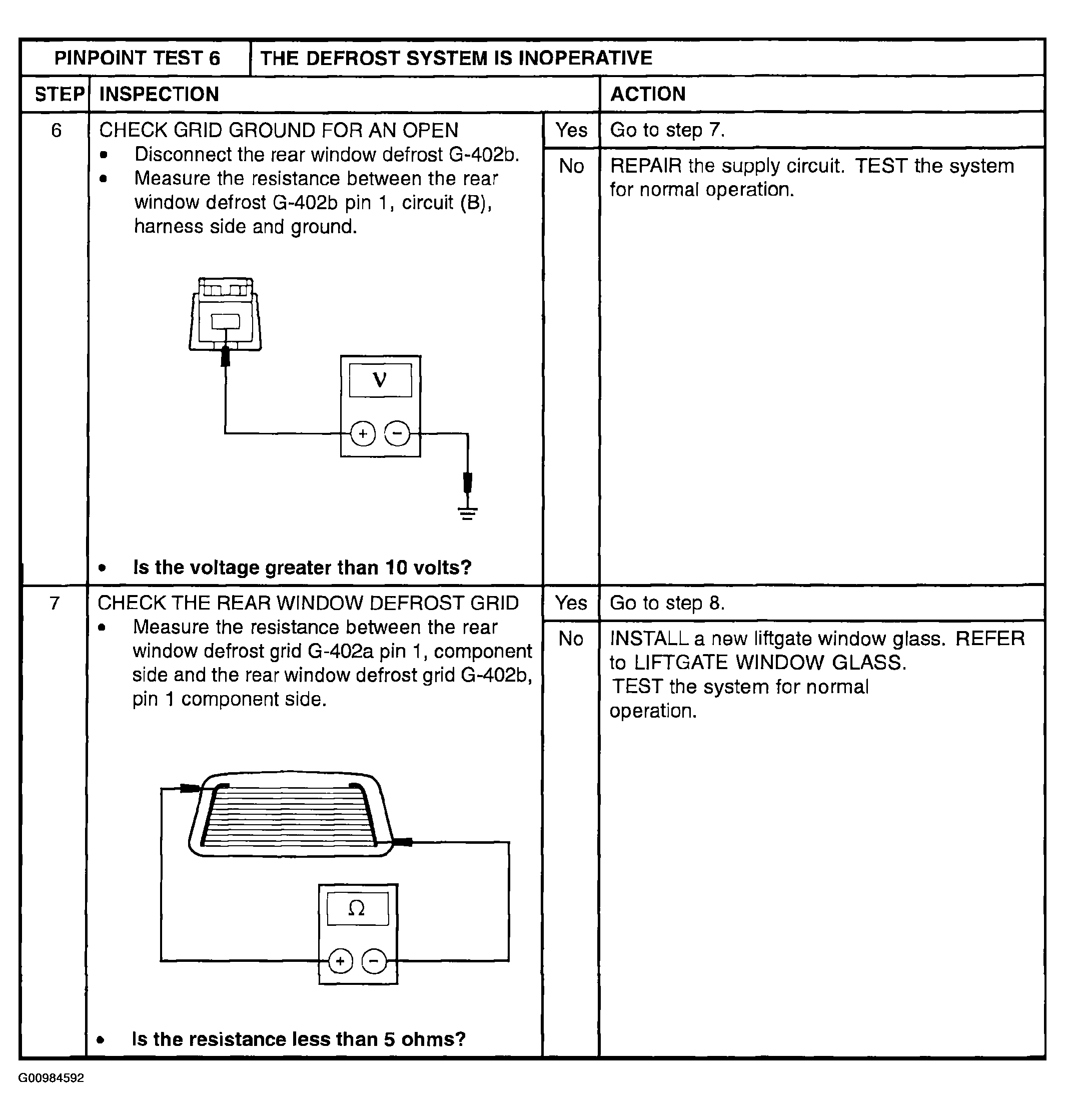

Fig 3: Pinpoint Test 6: The Defrost System Is Inoperative - Inspection Procedure Chart (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

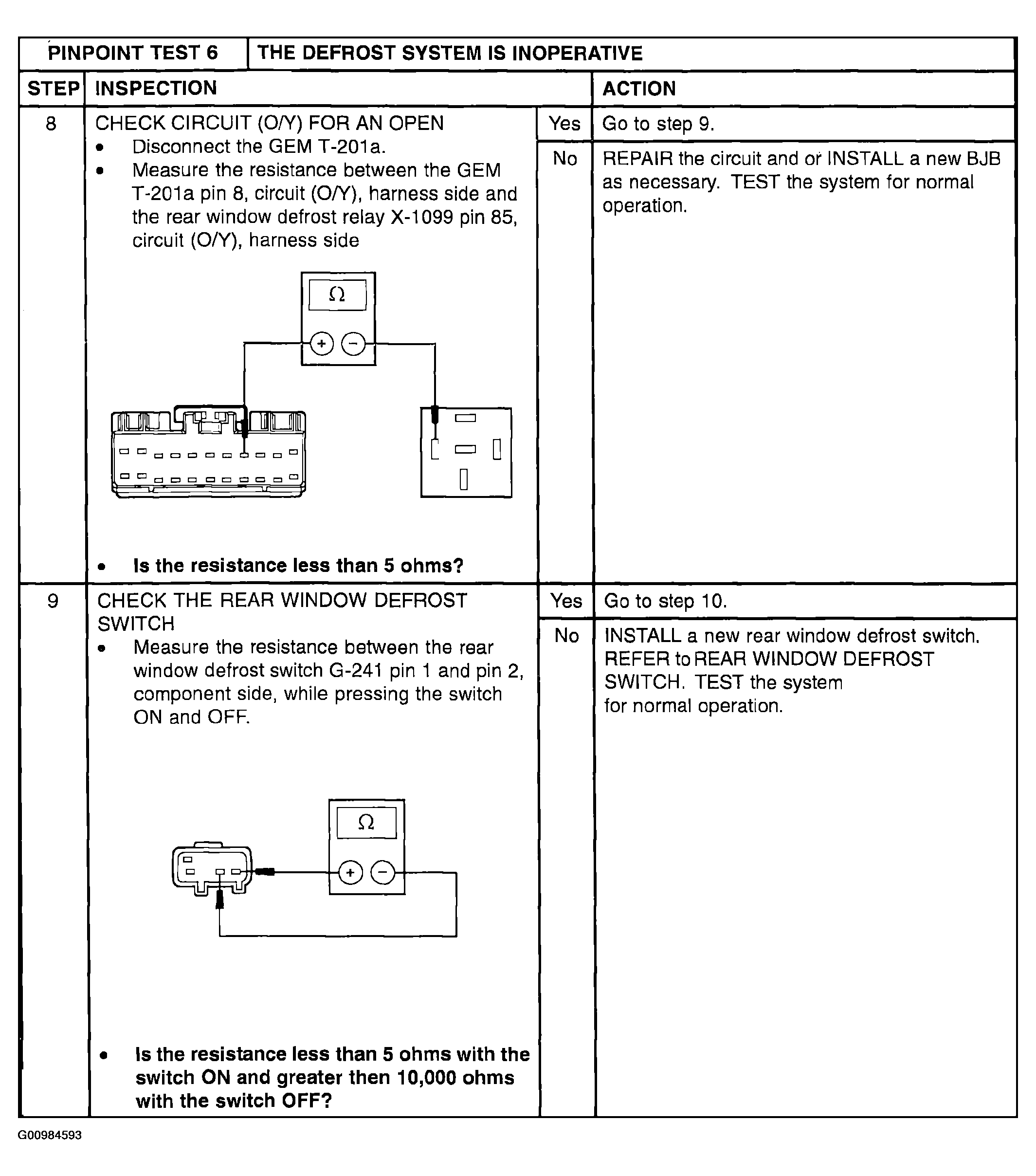

Fig 4: Pinpoint Test 6: The Defrost System Is Inoperative - Inspection Procedure Chart (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.

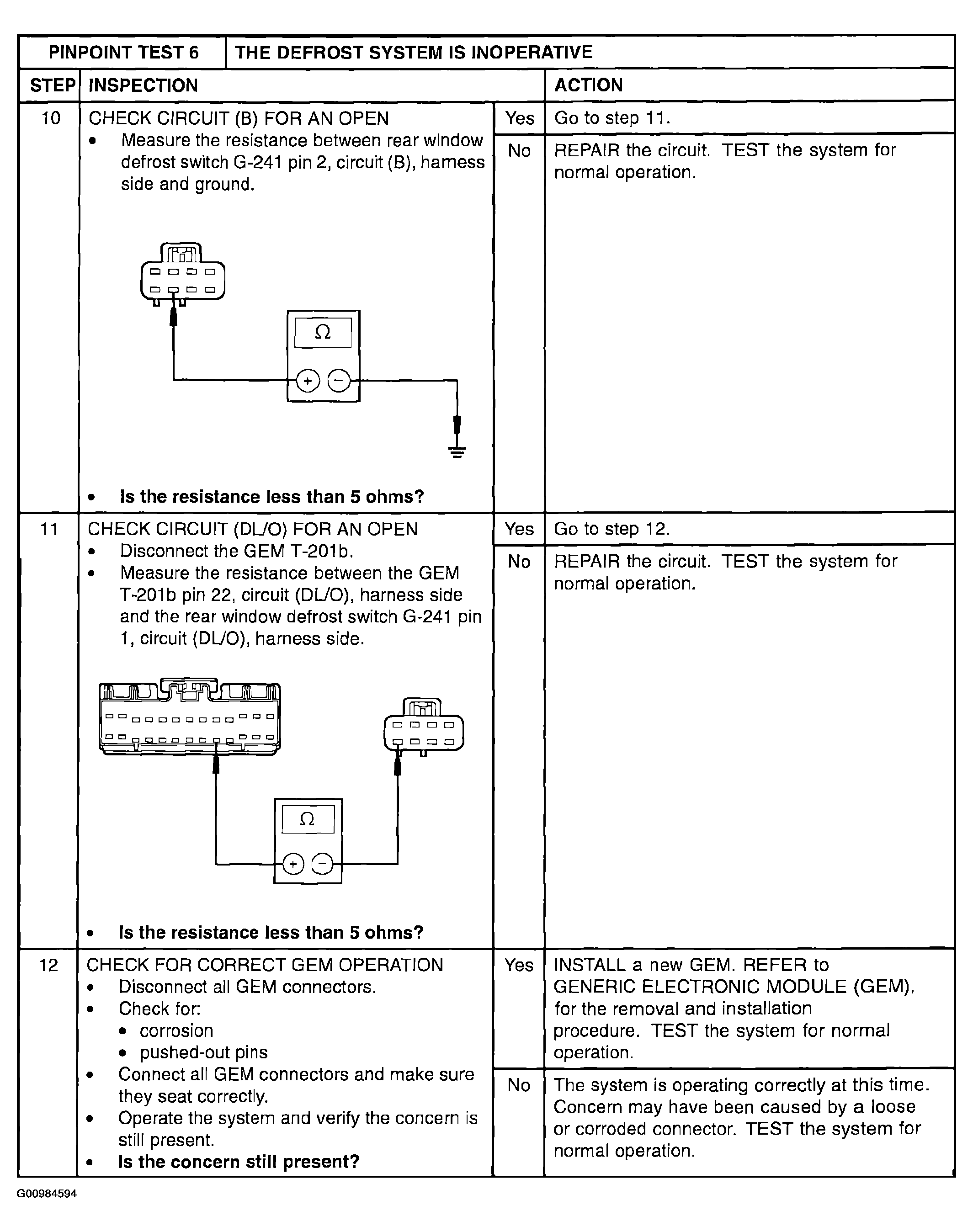

Fig 5: Pinpoint Test 6: The Defrost System Is Inoperative - Inspection Procedure Chart (Steps 10-12)

Courtesy of MAZDA MOTORS CORP.
