Symptom Troubleshooting Chart - Power Seat: Notes

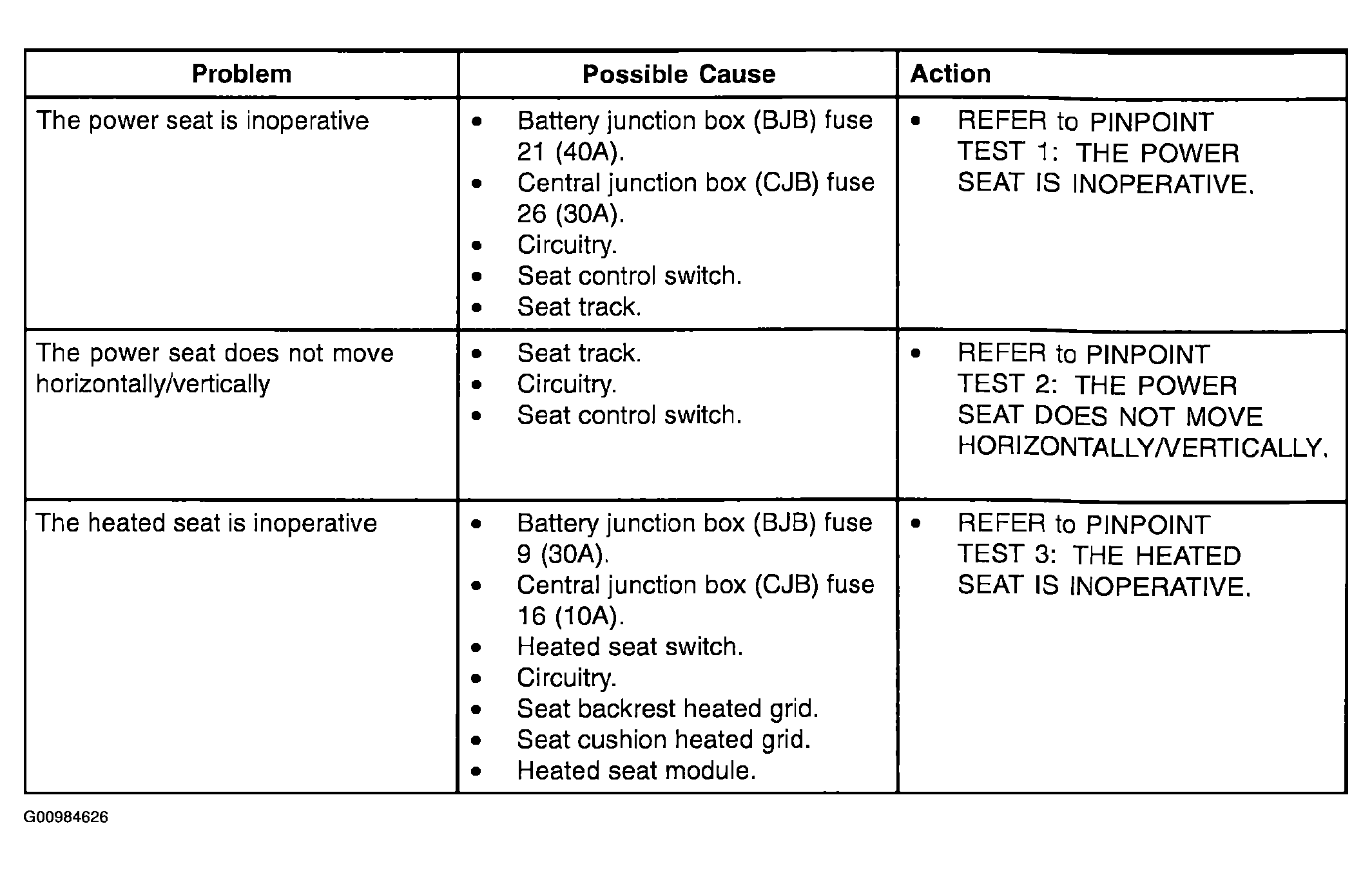

Fig 1: Symptom Troubleshooting Chart - Power Seat

Courtesy of MAZDA MOTORS CORP.

PINPOINT TEST

PINPOINT TEST	DESCRIPTION
PINPOINT TEST 1	THE POWER SEAT IS INOPERATIVE
PINPOINT TEST 2	THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY
PINPOINT TEST 3	THE HEATED SEAT IS INOPERATIVE
