Pinpoint Test 10: The Charging System Warning Indicator Flickers Or Is Intermittent

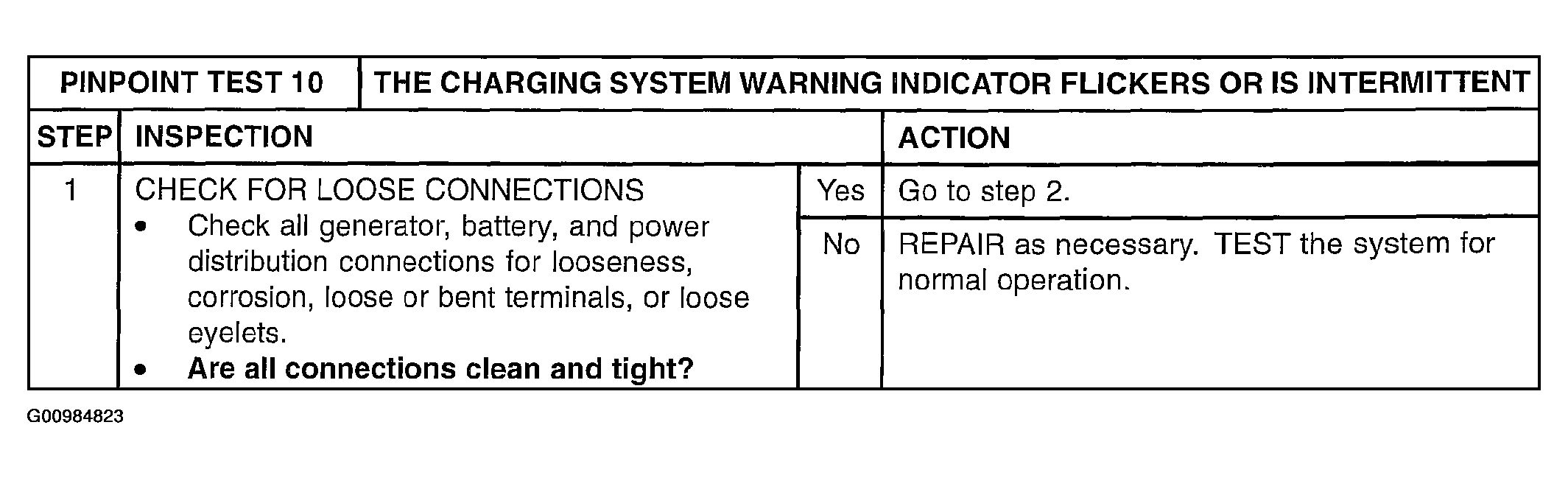

Fig 1: Pinpoint Test 10: The Charging System Warning Indicator Flickers Or Is Intermittent: Inspection (Step 1)
G00984823Courtesy of MAZDA MOTORS CORP.

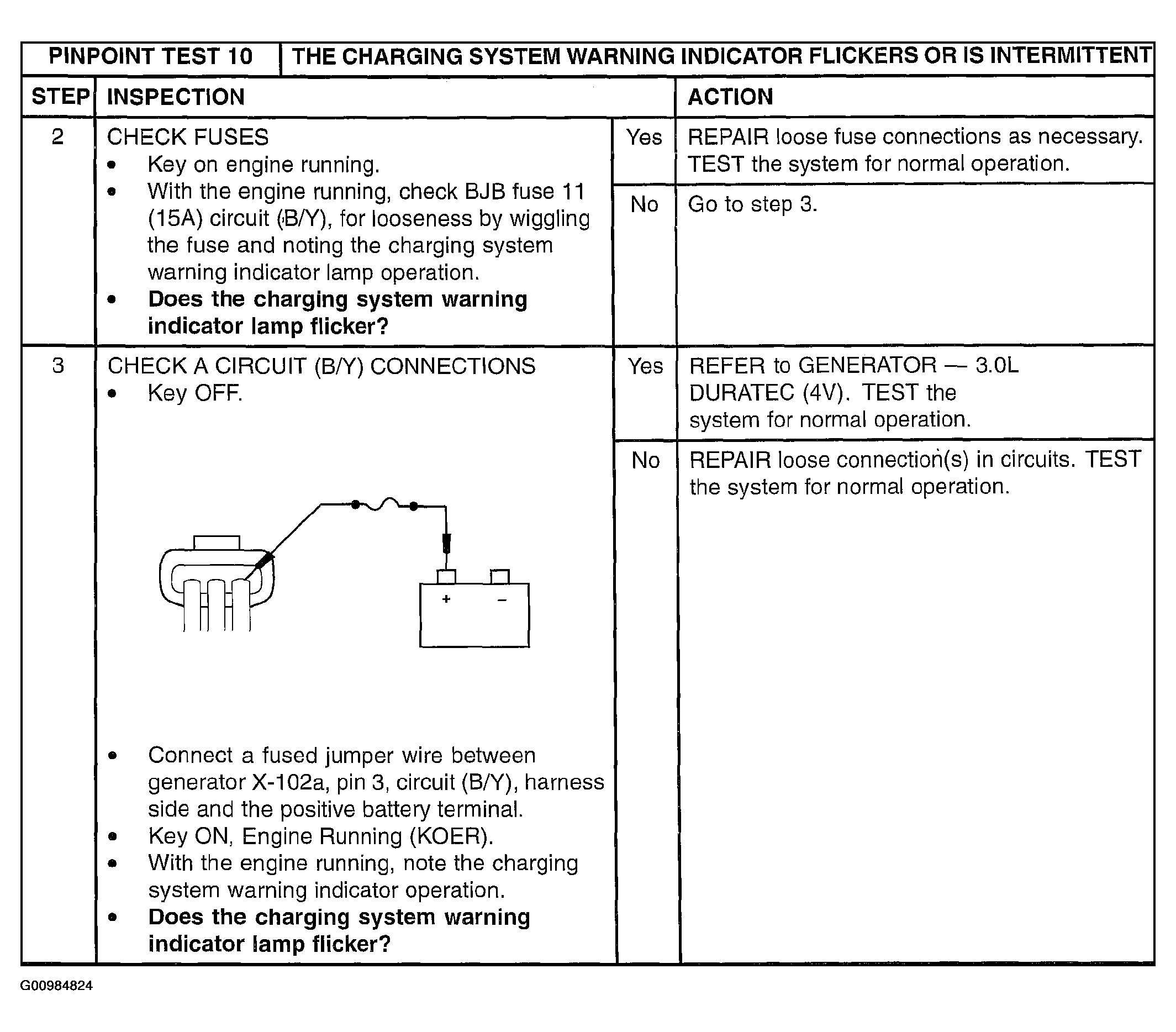

Fig 2: Pinpoint Test 10: The Charging System Warning Indicator Flickers Or Is Intermittent: Inspection (Steps 2-3)
G00984824Courtesy of MAZDA MOTORS CORP.
