DTC P1506: Idle Air Control (IAC) System Malfunction

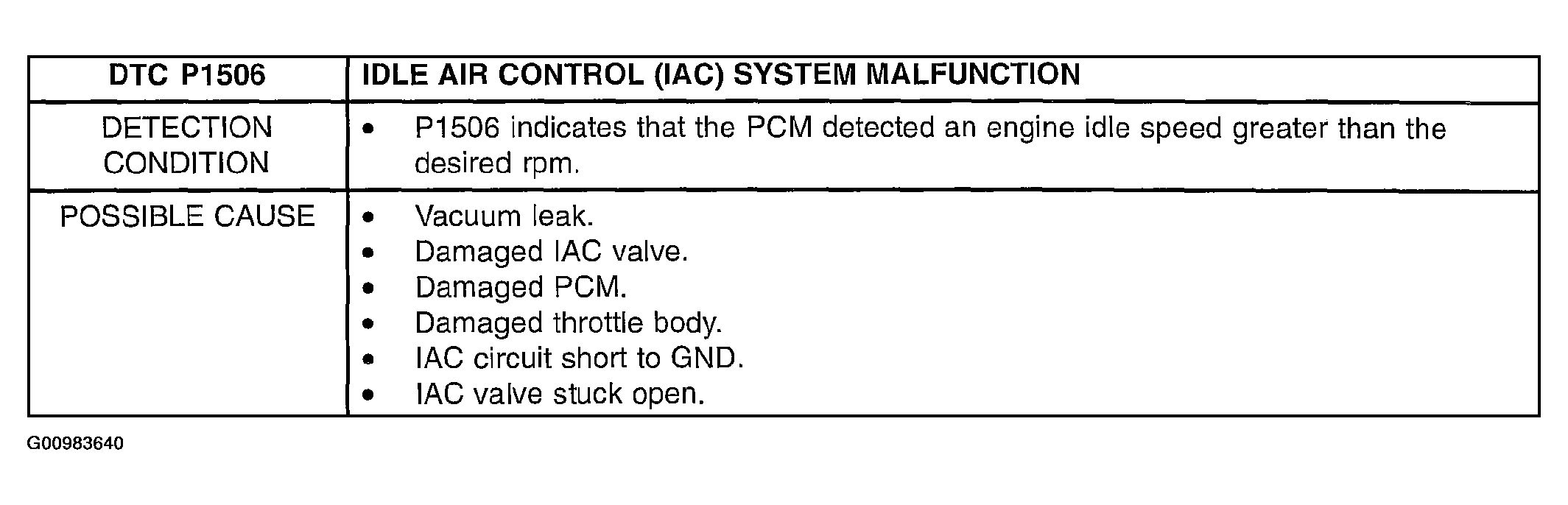

Fig 1: DTC P1506 Idle Air Control (IAC) System Malfunction: Detection Condition & Possible Cause

Courtesy of MAZDA MOTORS CORP.

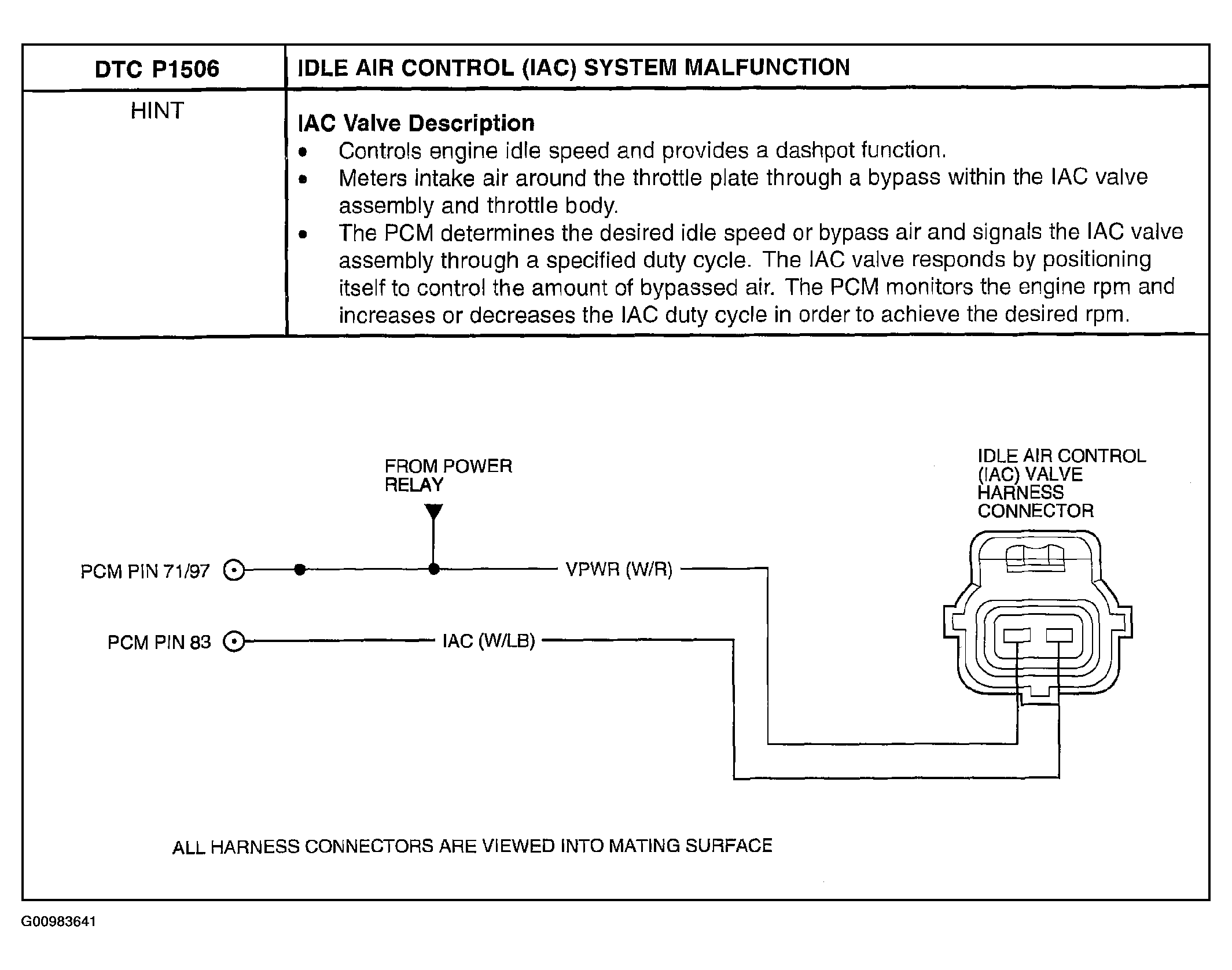

Fig 2: DTC P1506 Idle Air Control (IAC) System Malfunction: Hint & Idle Air Control Valve Harness Connector View

Courtesy of MAZDA MOTORS CORP.

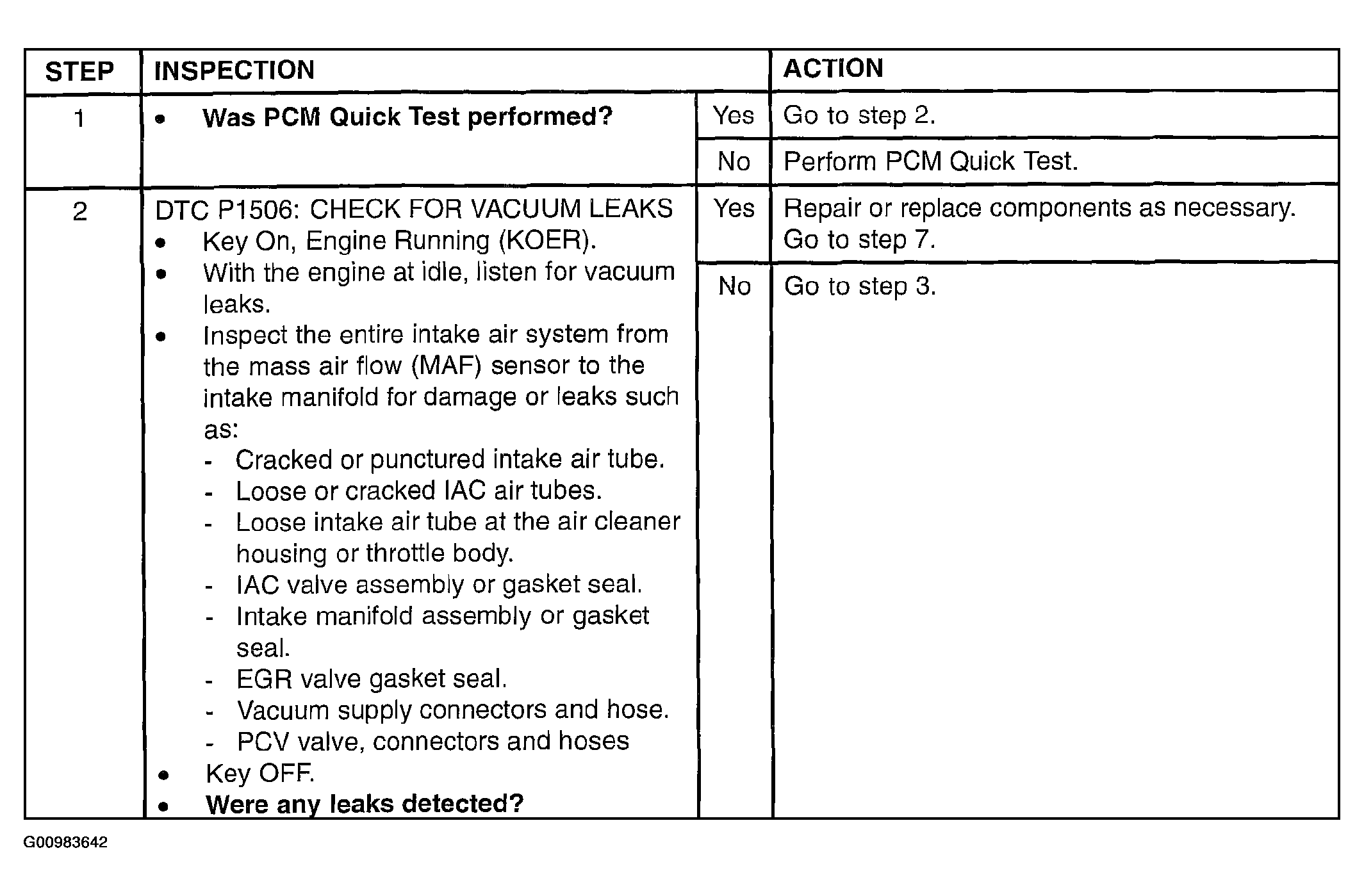

Fig 3: DTC P1506 Idle Air Control (IAC) System Malfunction: Inspection (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

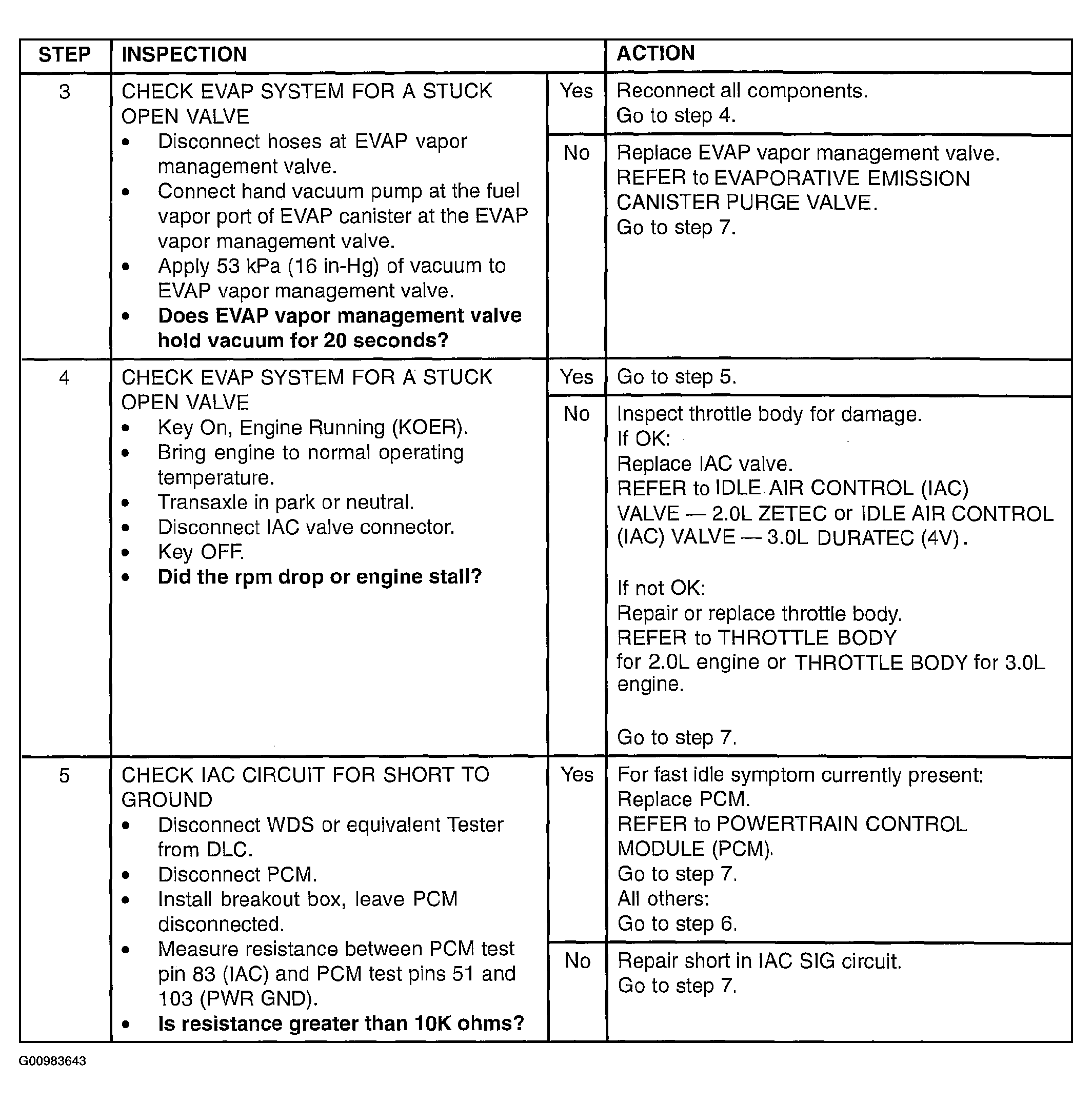

Fig 4: DTC P1506 Idle Air Control (IAC) System Malfunction: Inspection (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.

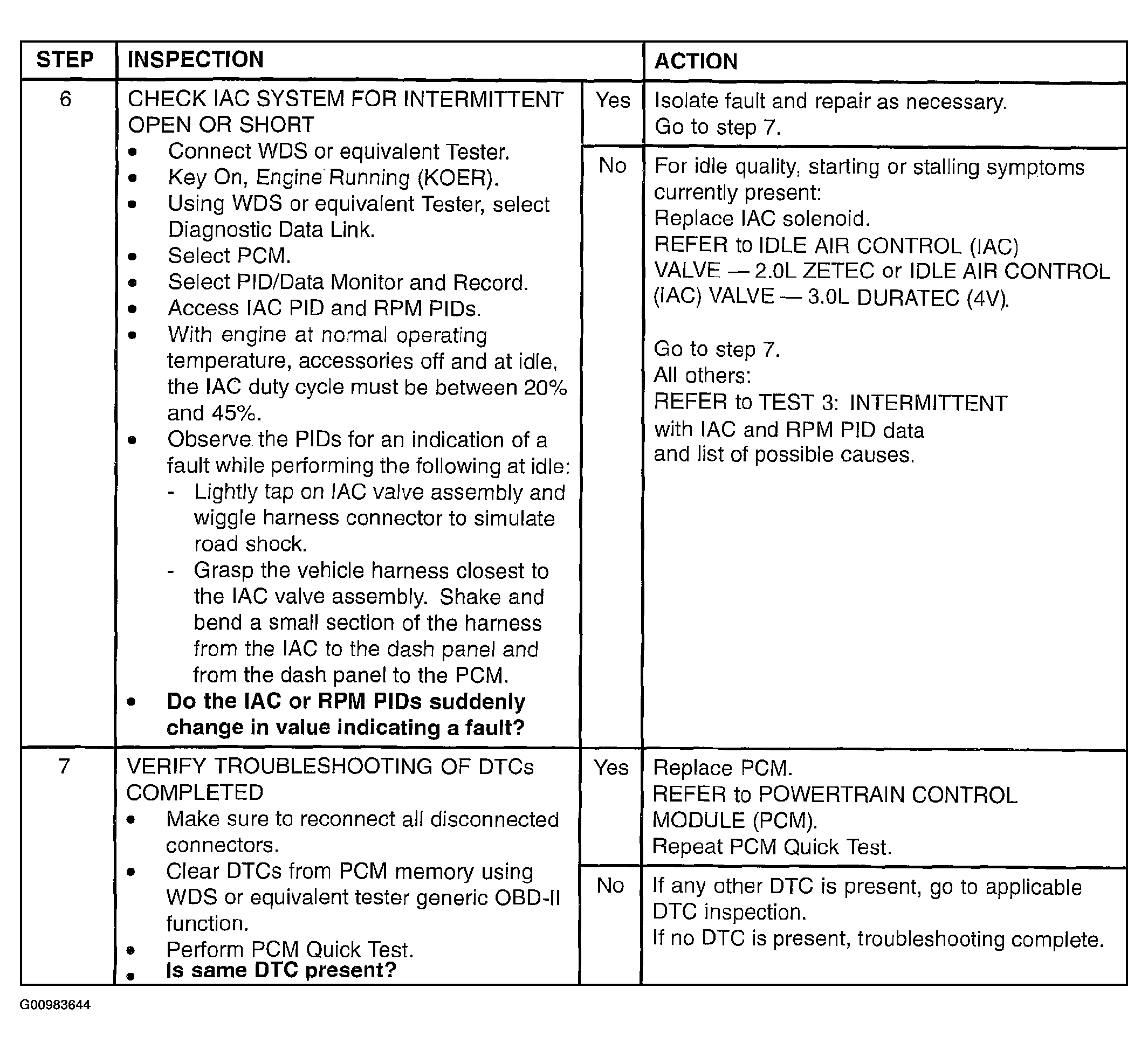

Fig 5: DTC P1506 Idle Air Control (IAC) System Malfunction: Inspection (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.
