DTC P1464, P1465: A/C Control Signal (ACCS) Malfunction

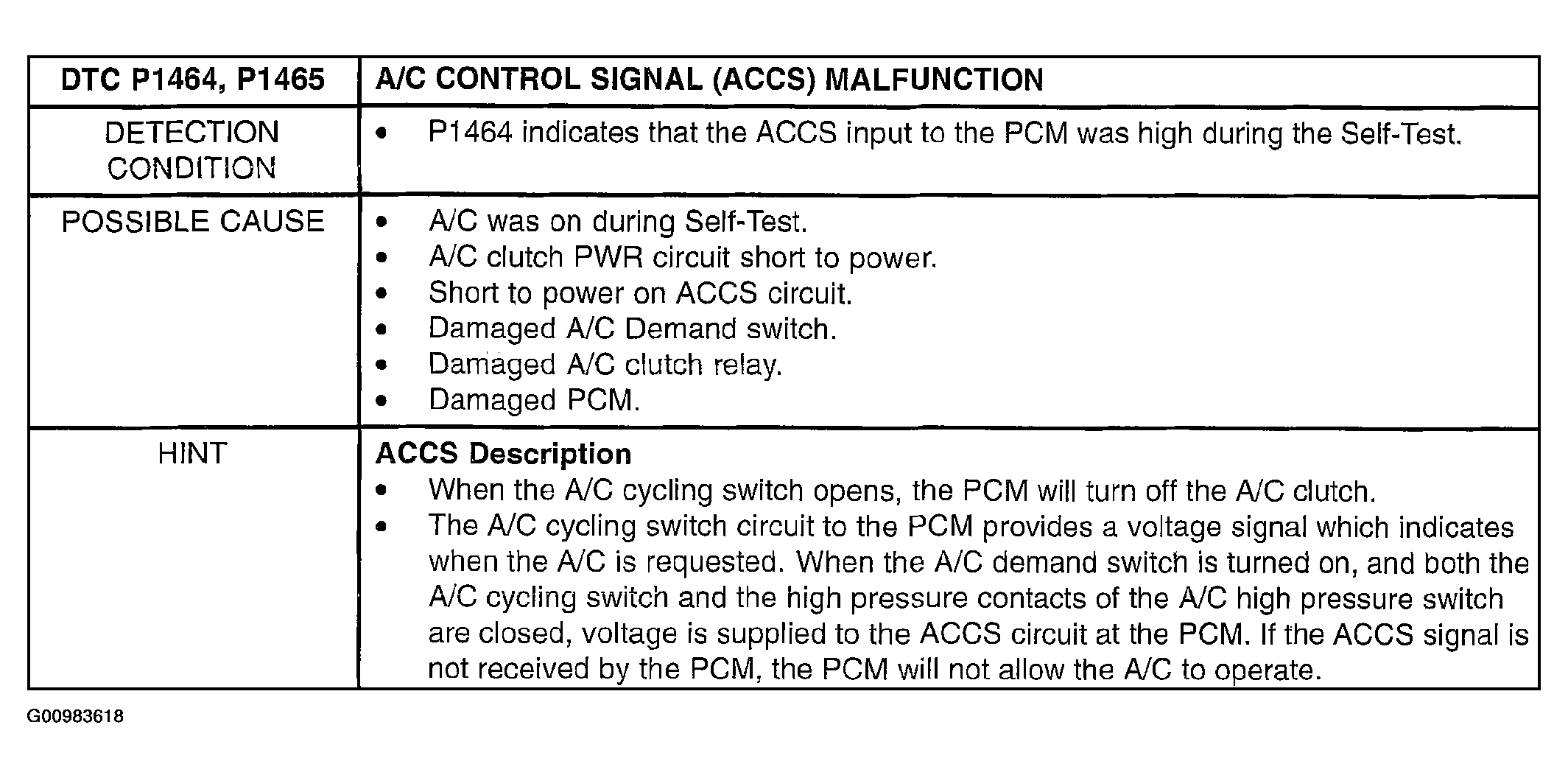

Fig 1: DTC P1464, P1465 A/C Control Signal (ACCS) Malfunction: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

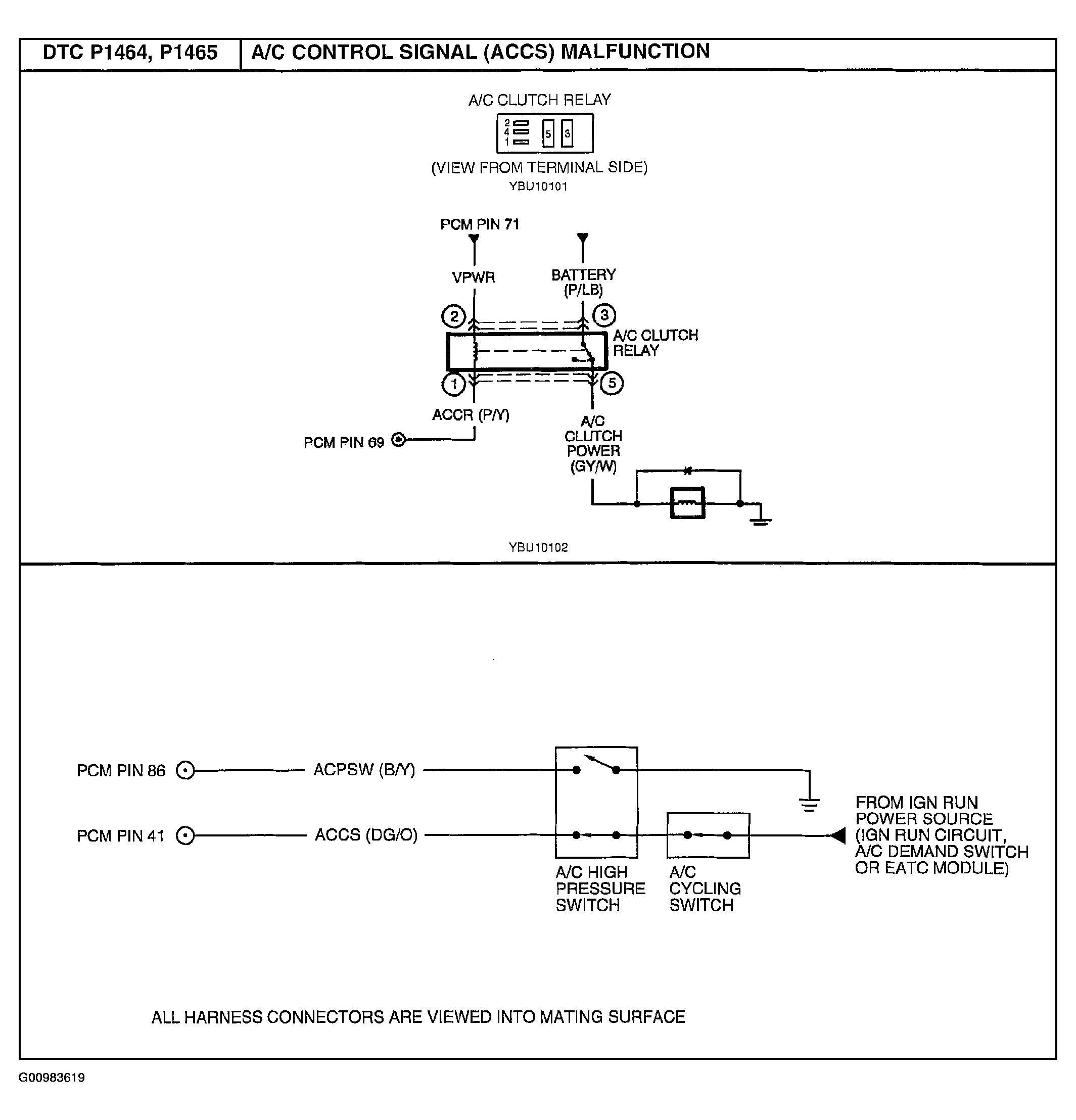

Fig 2: DTC P1464, P1465 A/C Control Signal (ACCS) Malfunction: A/C Clutch Relay Terminal View & Schematic

Courtesy of MAZDA MOTORS CORP.

Fig 3: DTC P1464, P1465 A/C Control Signal (ACCS) Malfunction: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

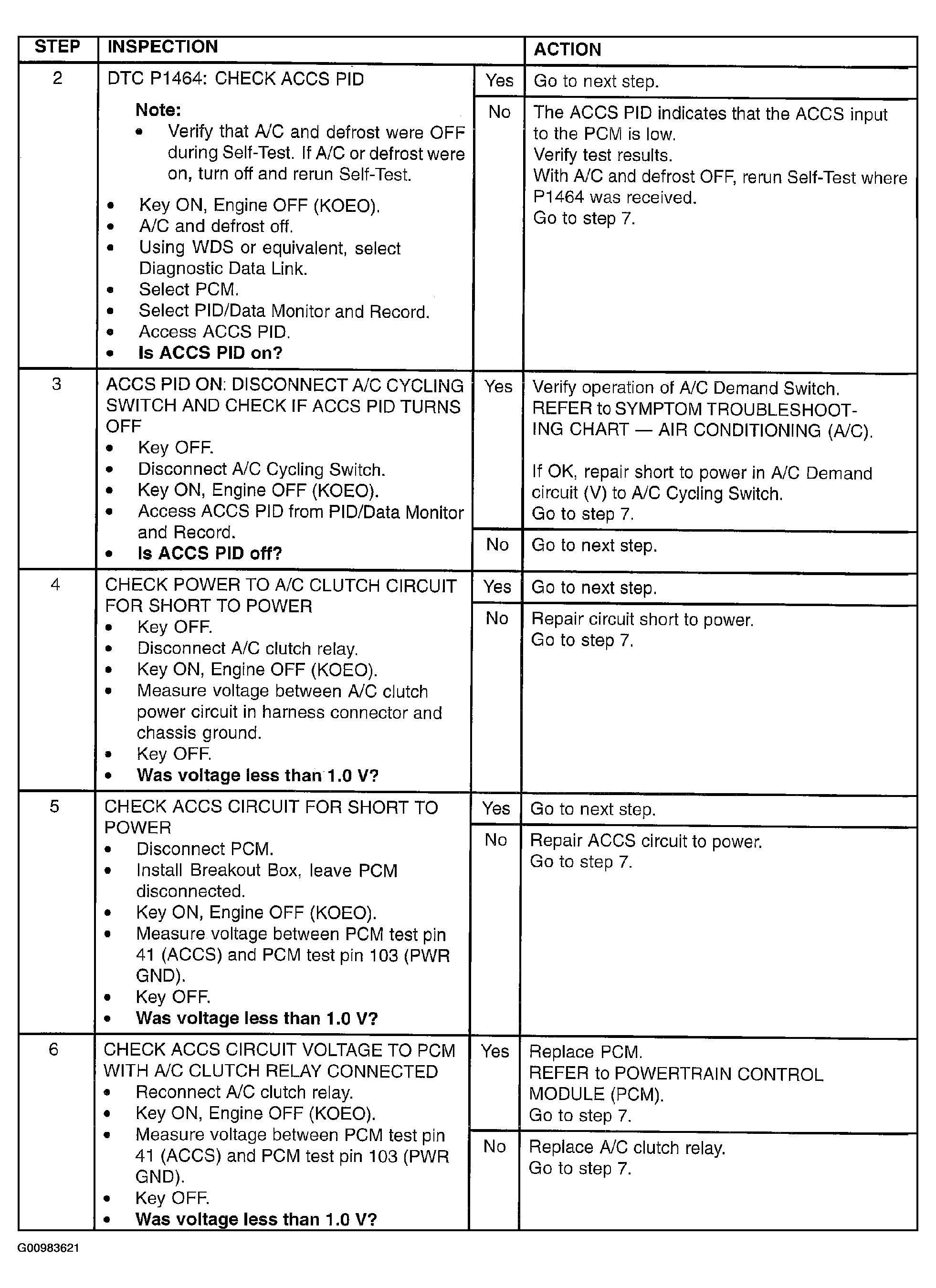

Fig 4: DTC P1464, P1465 A/C Control Signal (ACCS) Malfunction: Inspection (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

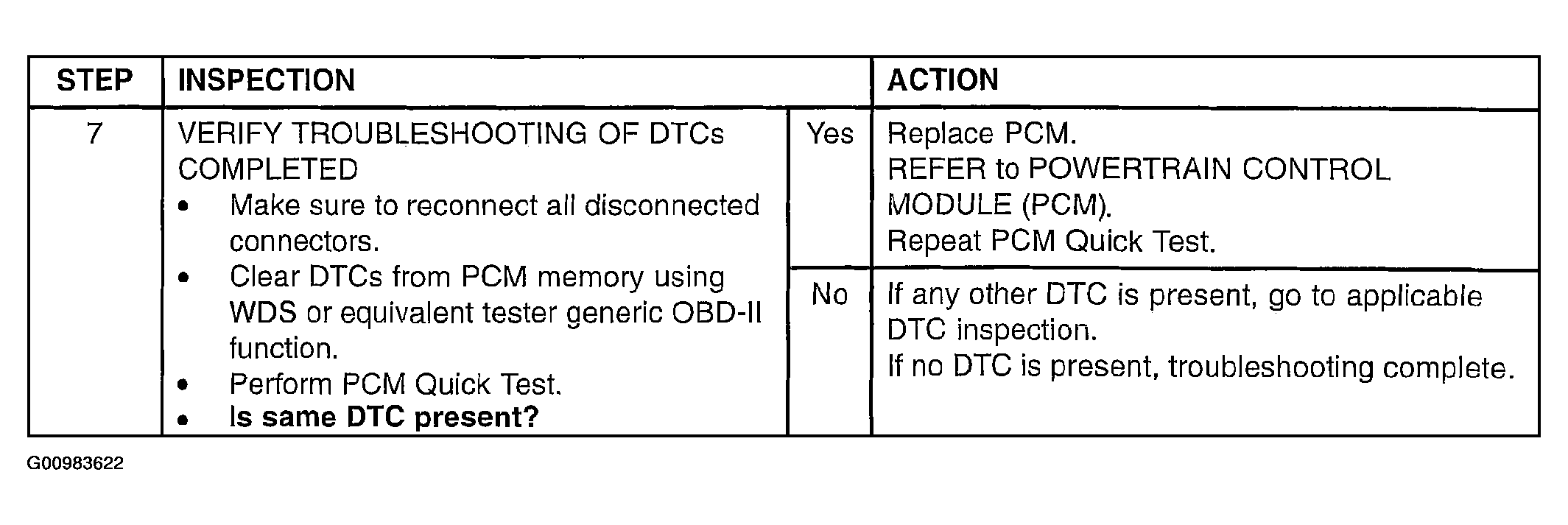

Fig 5: DTC P1464, P1465 A/C Control Signal (ACCS) Malfunction: Inspection (Step 7)

Courtesy of MAZDA MOTORS CORP.
