DTC P1000: OBD II Drive Cycle Malfunction

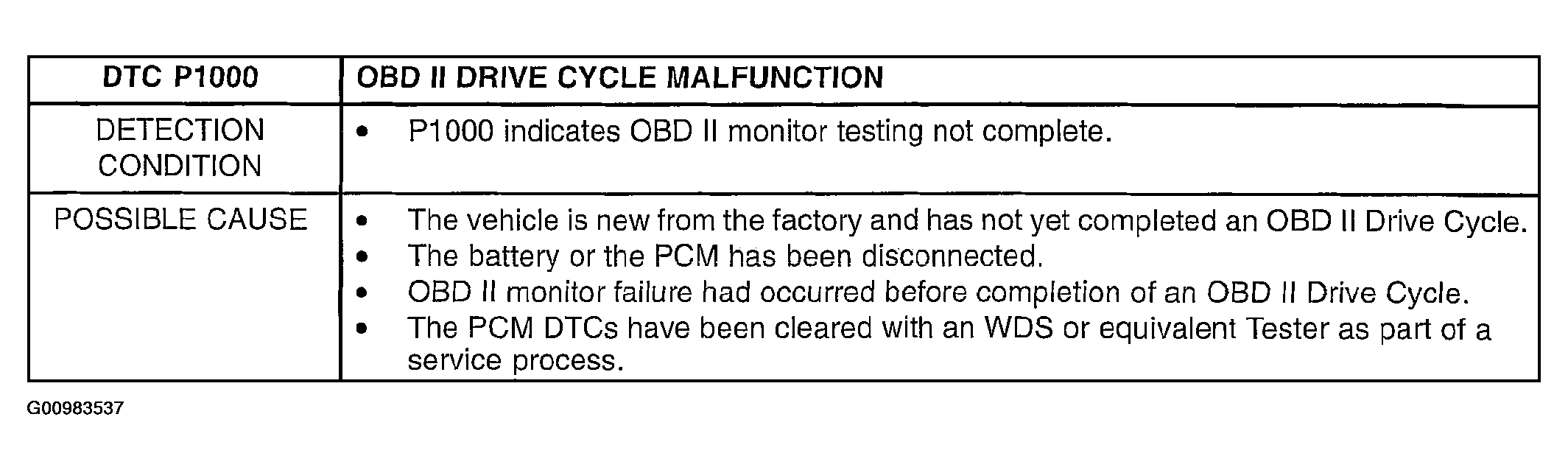

Fig 1: DTC P1000 OBD II Drive Cycle Malfunction: Detection Condition & Possible Cause

Courtesy of MAZDA MOTORS CORP.

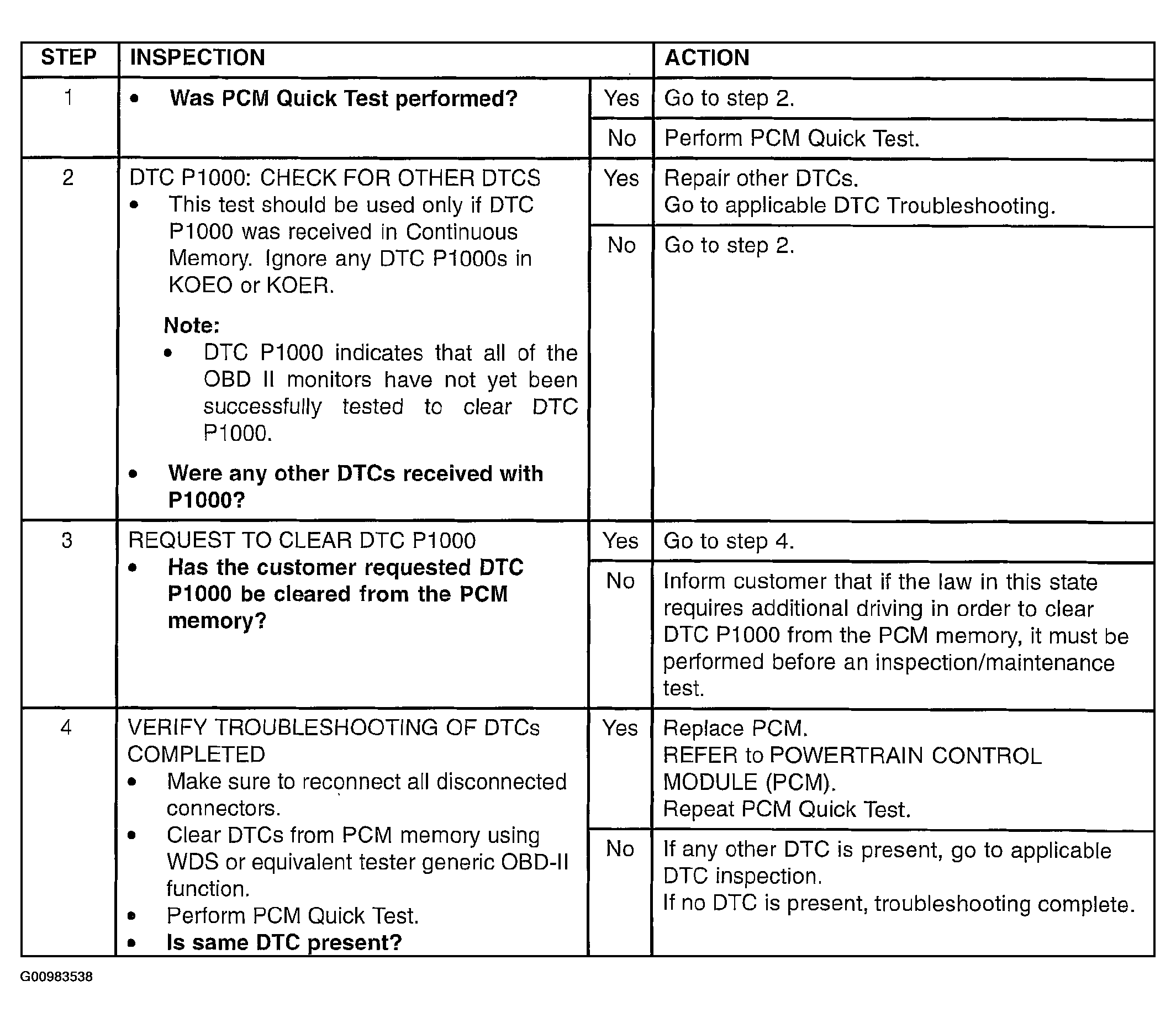

Fig 2: DTC P1000 OBD II Drive Cycle Malfunction: Inspection

Courtesy of MAZDA MOTORS CORP.
