DTC 1128: Heated Oxygen Sensor (Ho2S) Signals

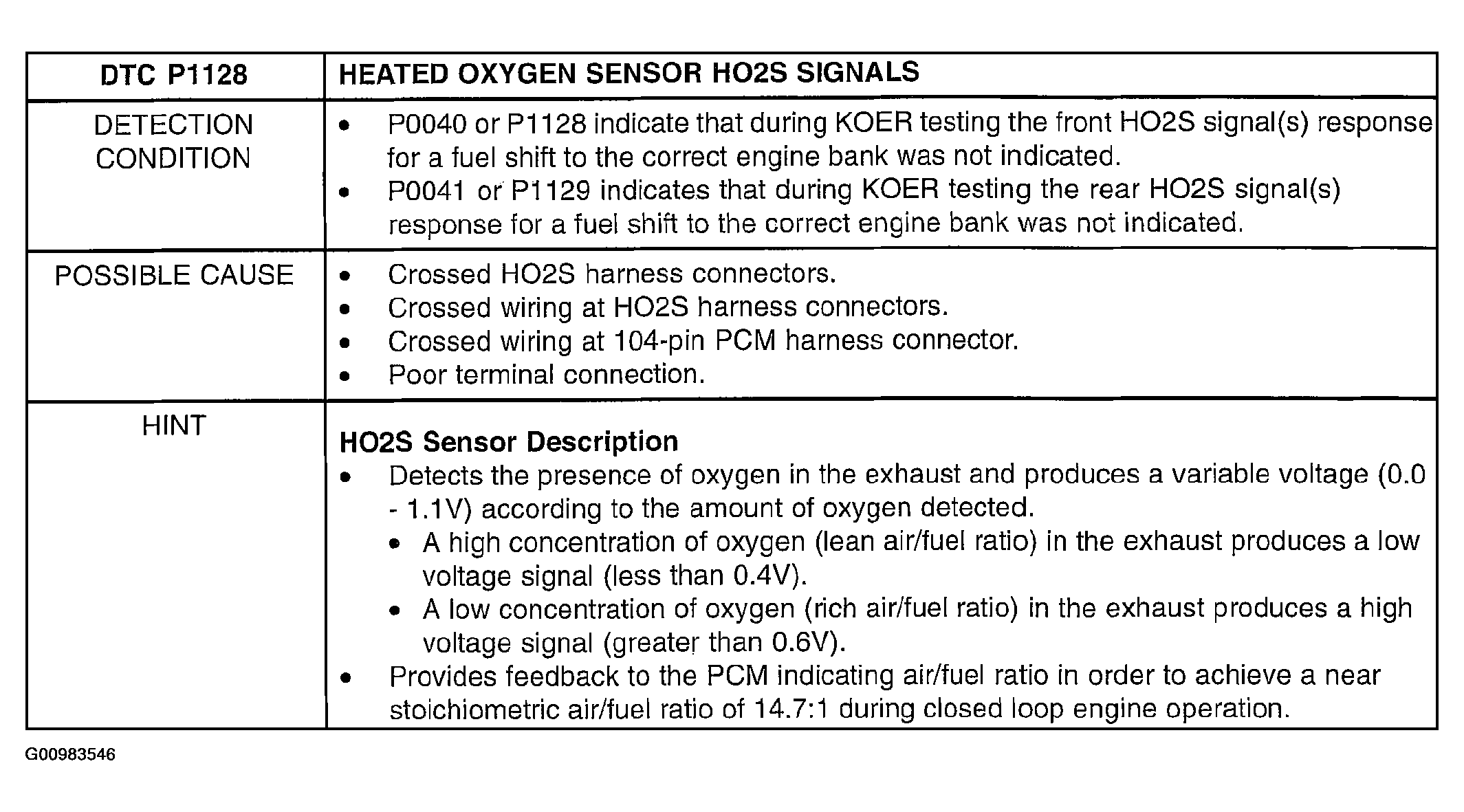

Fig 1: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

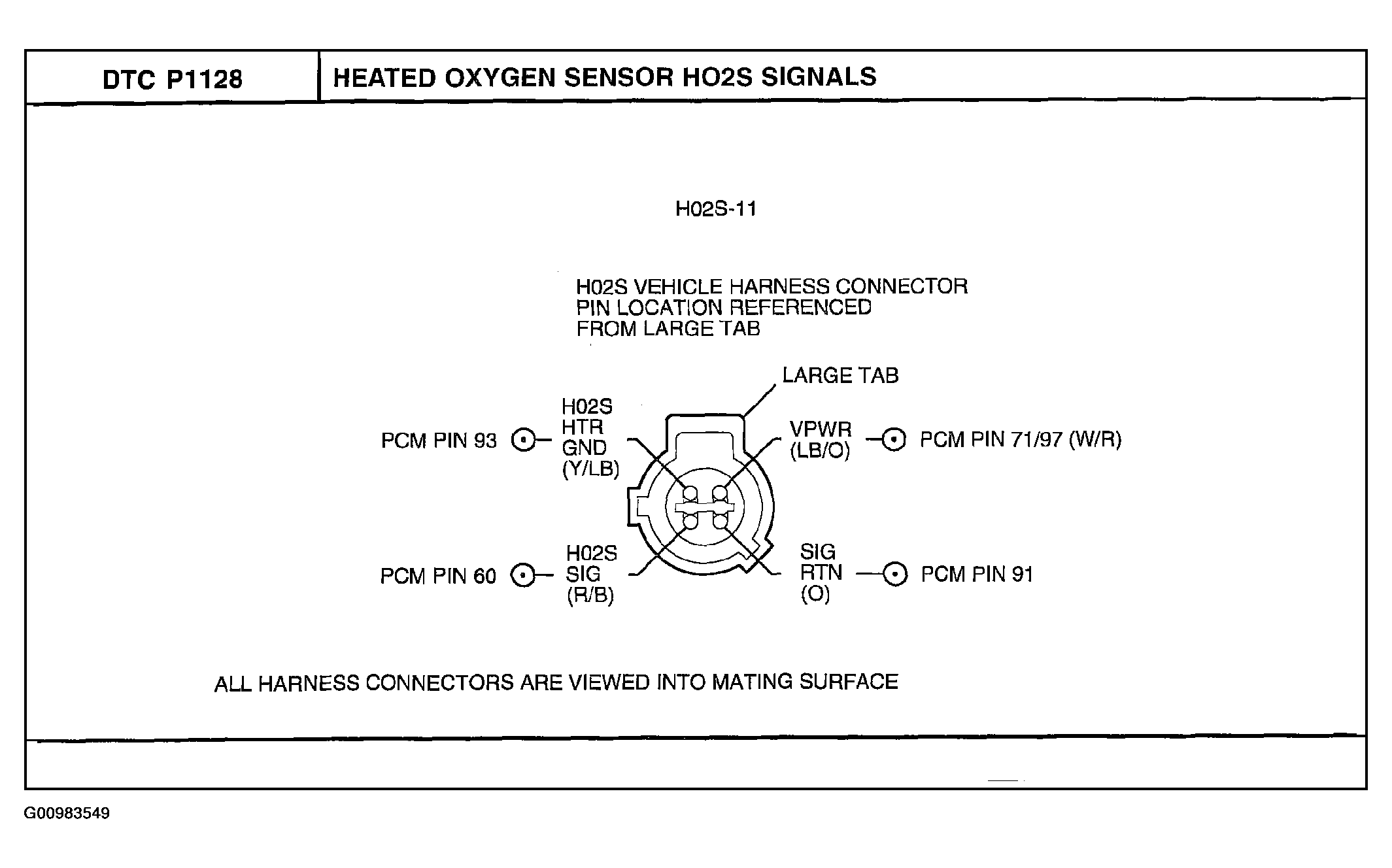

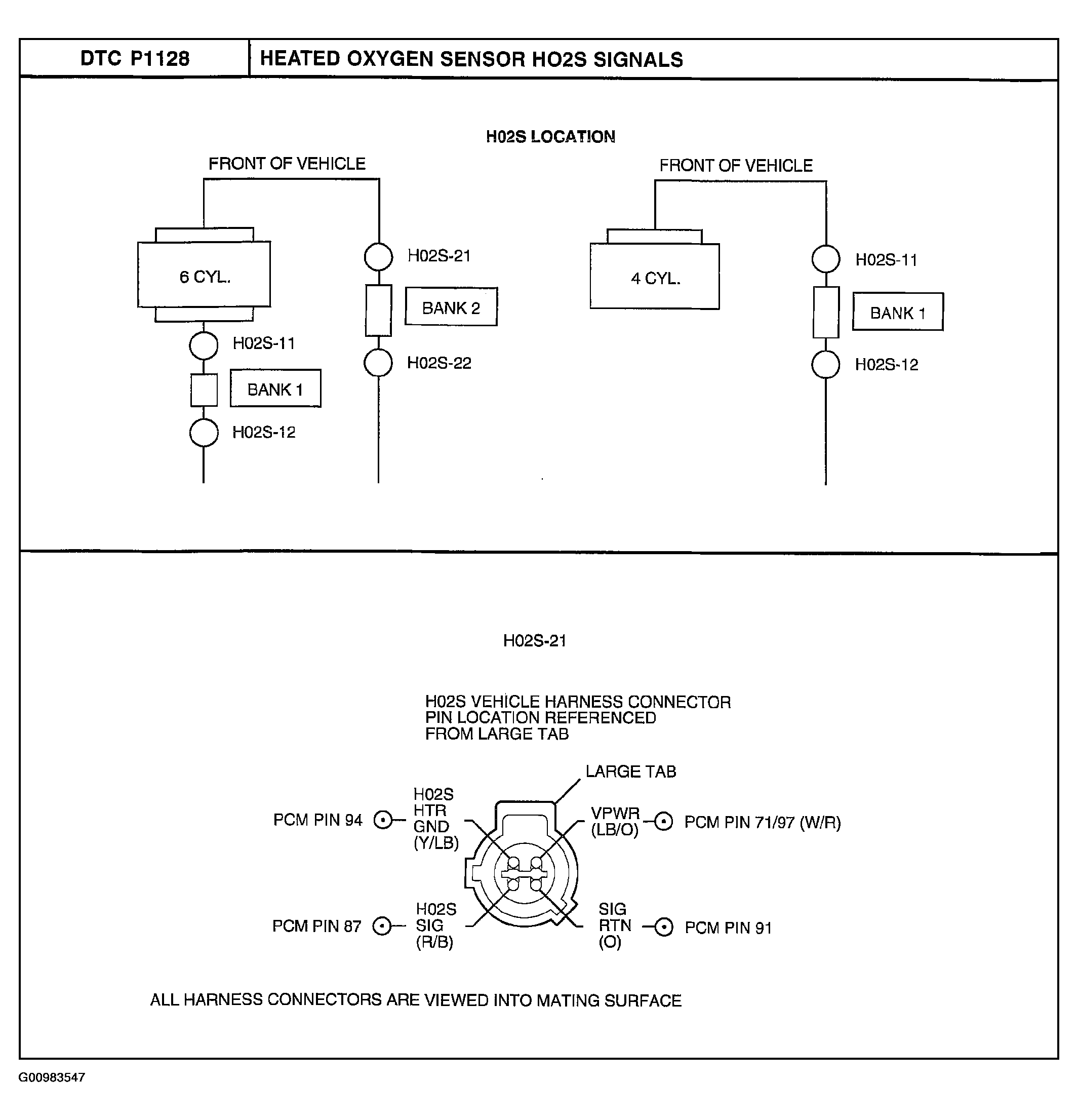

Fig 2: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: HO2S Locations & HO2S Harness Connector View

Courtesy of MAZDA MOTORS CORP.

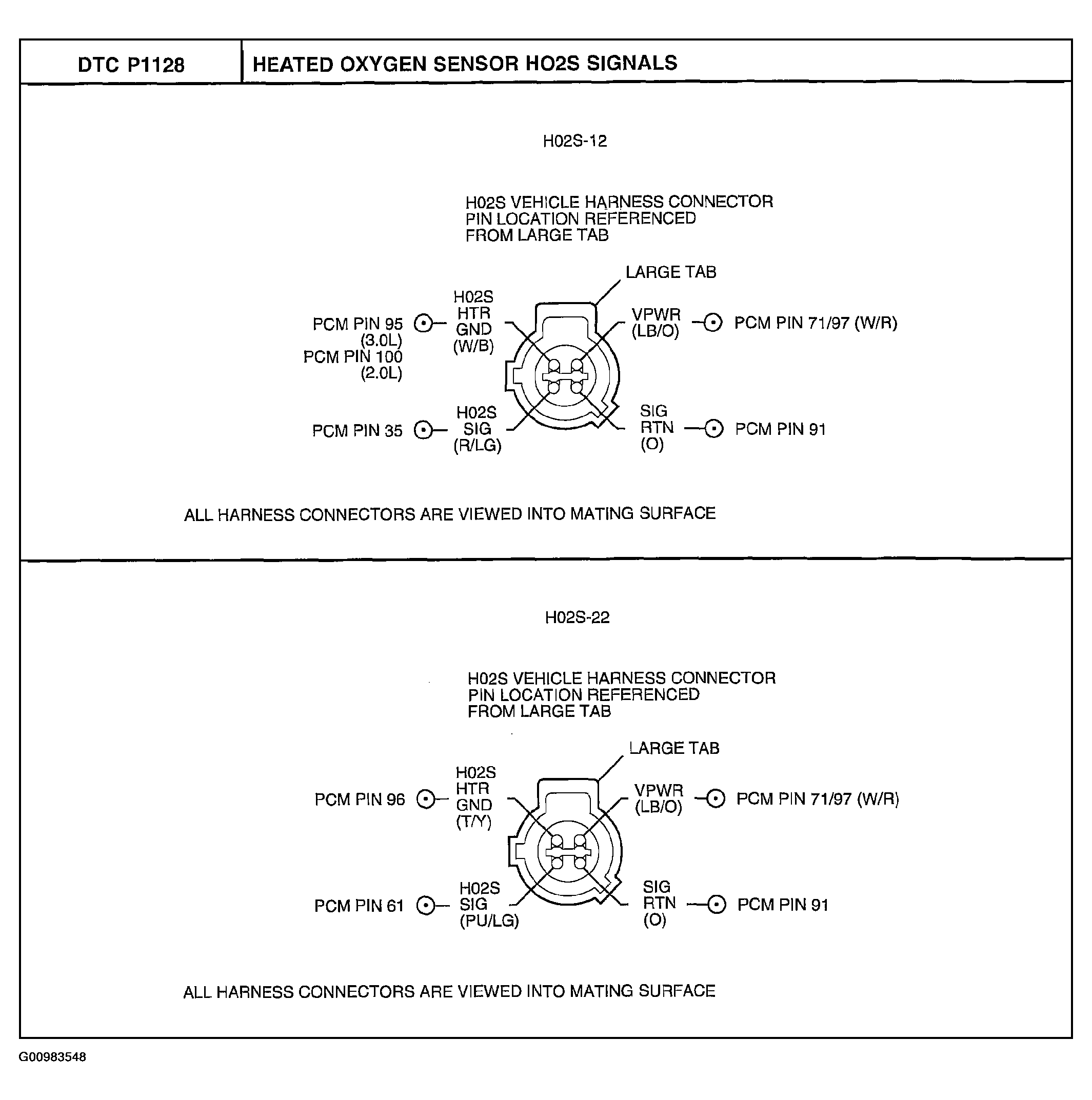

Fig 3: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: HO2S Harness Connector Views

Courtesy of MAZDA MOTORS CORP.

Fig 4: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: HO2S Harness Connector View

Courtesy of MAZDA MOTORS CORP.

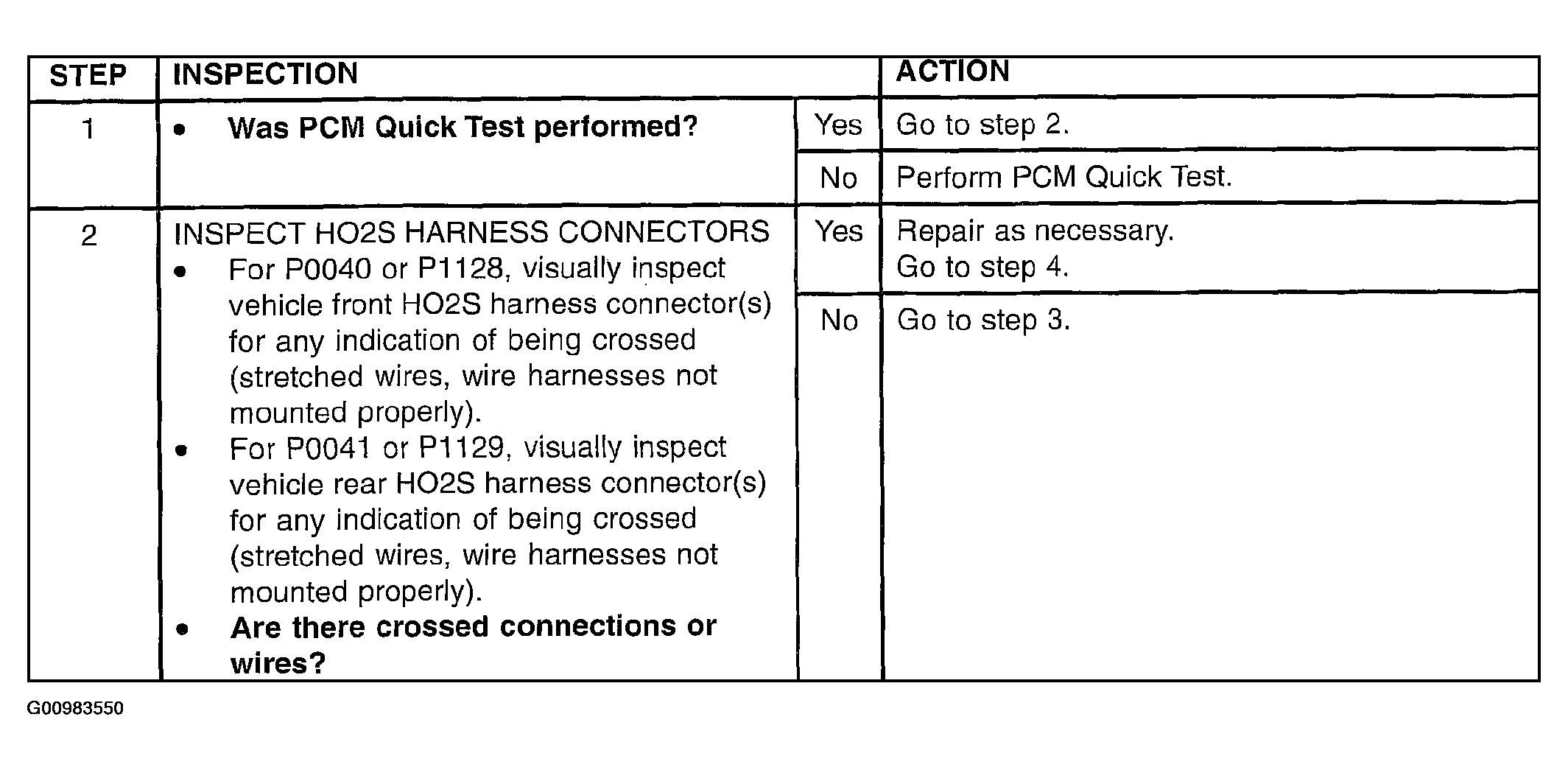

Fig 5: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: Inspection (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

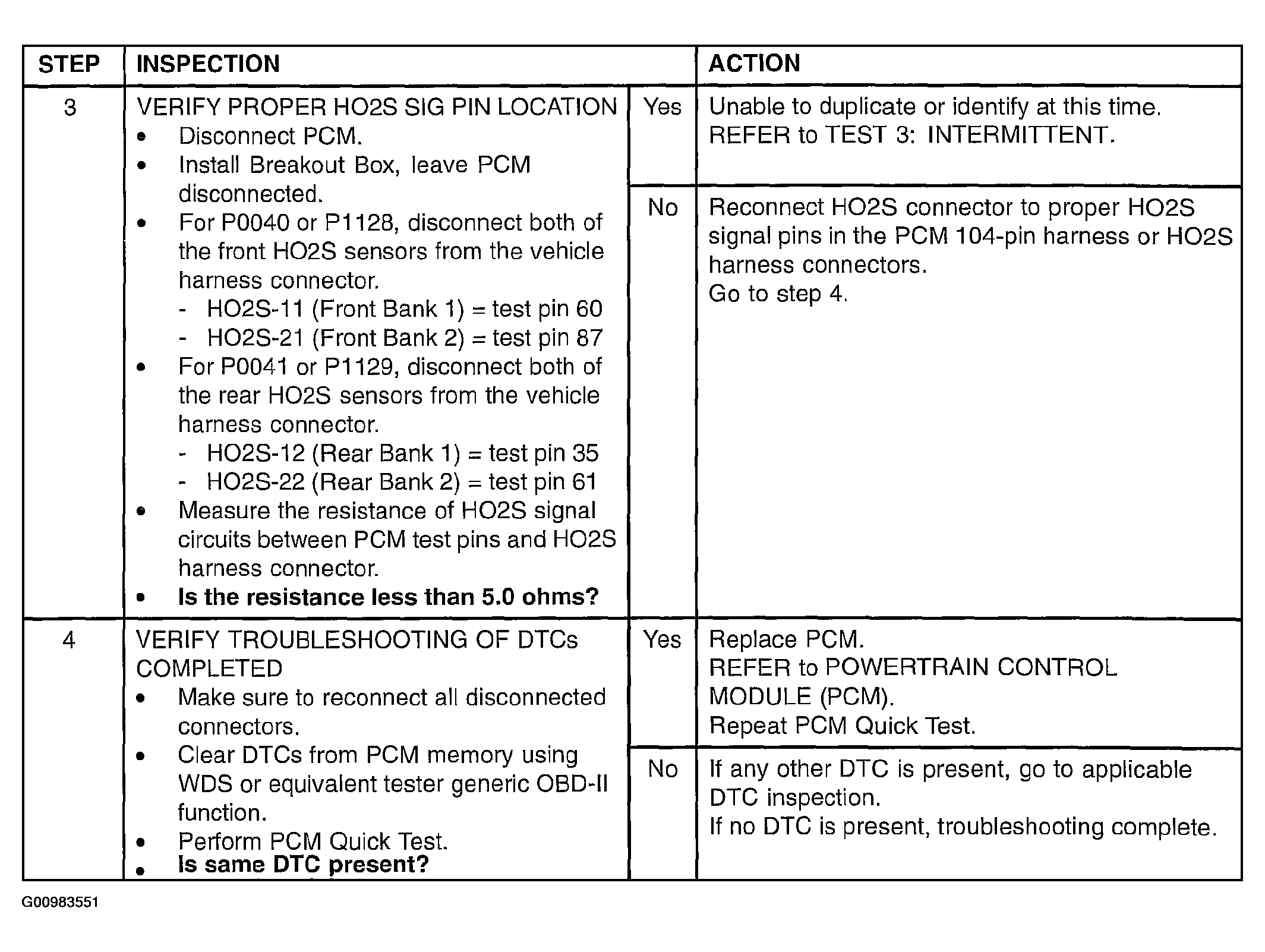

Fig 6: DTC 1128 Heated Oxygen Sensor (HO2S) Signals: Inspection (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.
