DTC P2271: Rear Ho2S Signal Stuck Rich

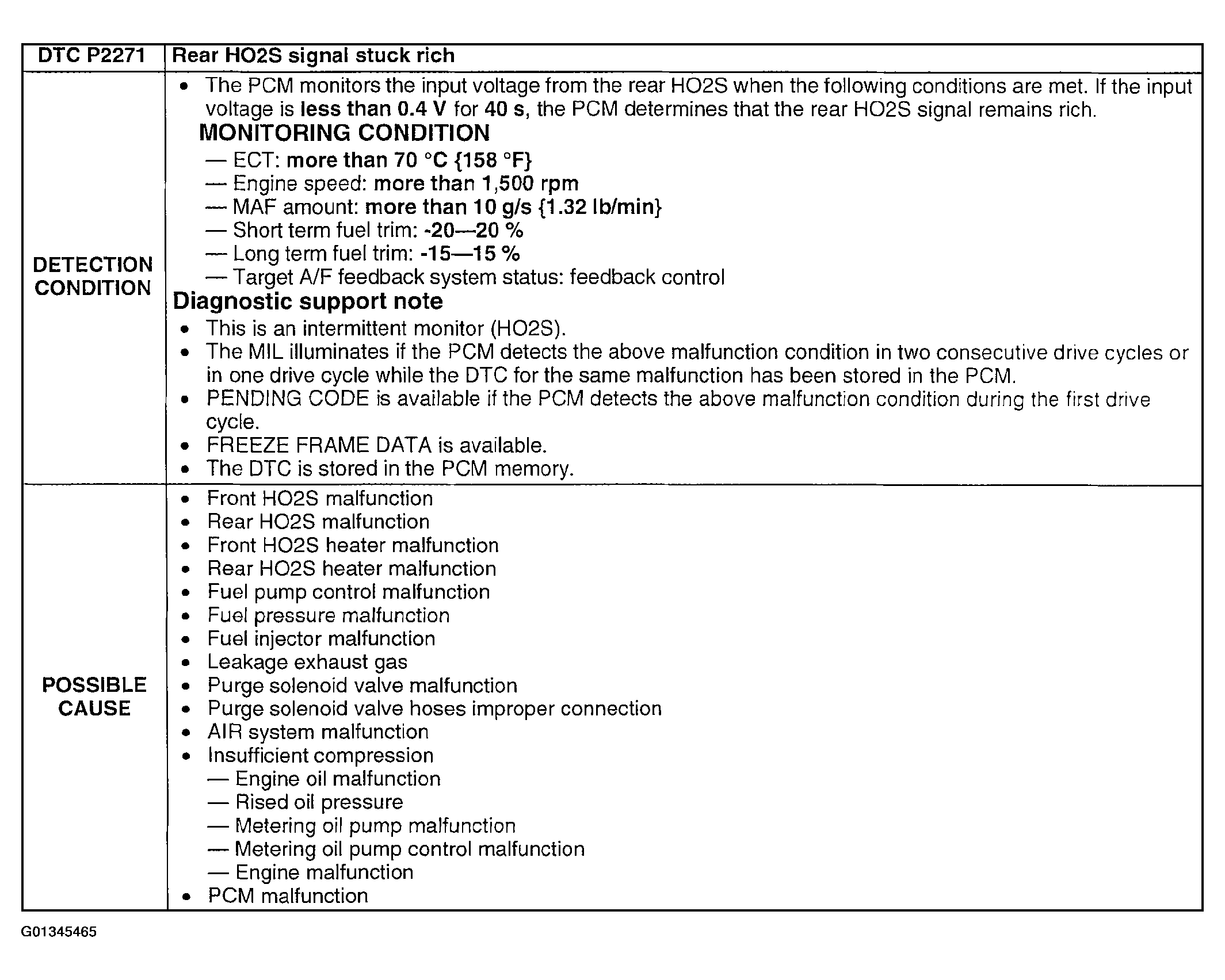

Fig 1: DTC P2271 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

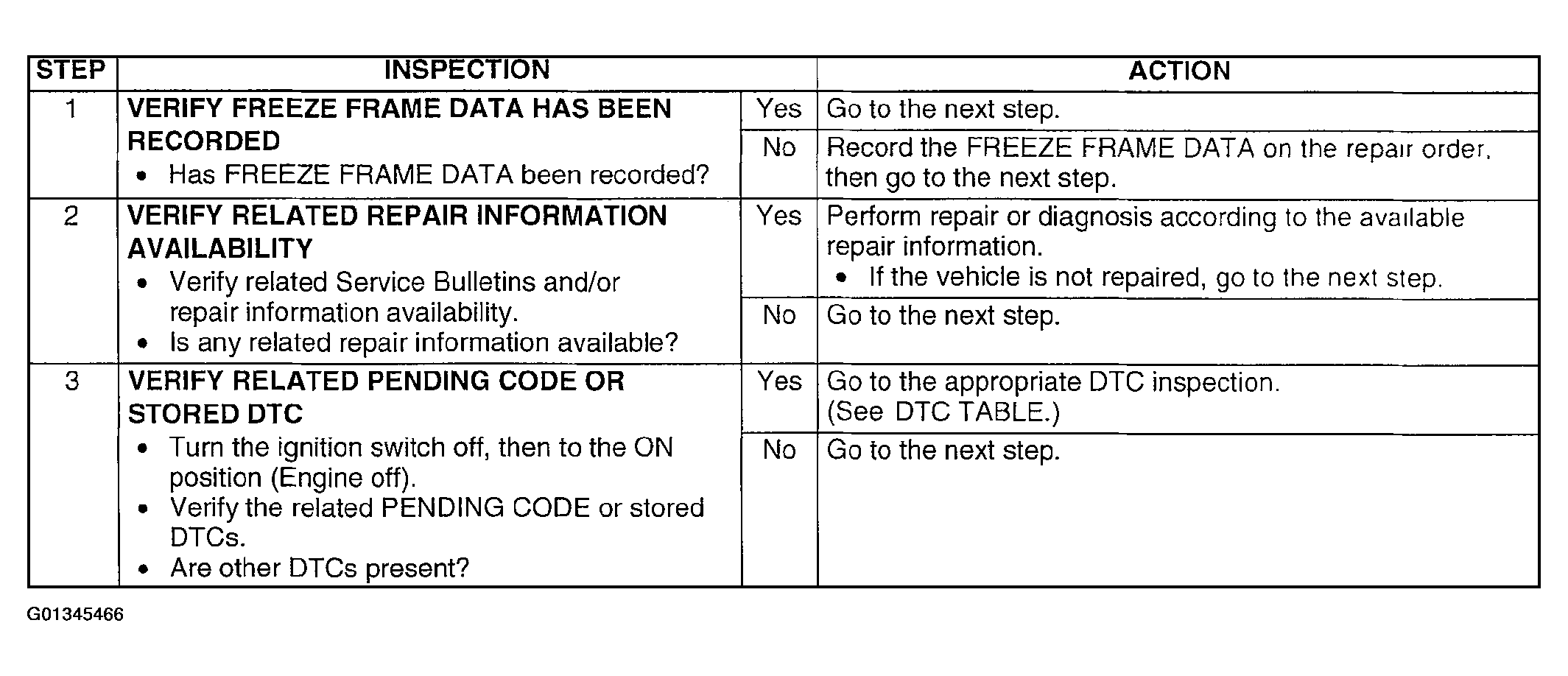

Fig 2: DTC P2271 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

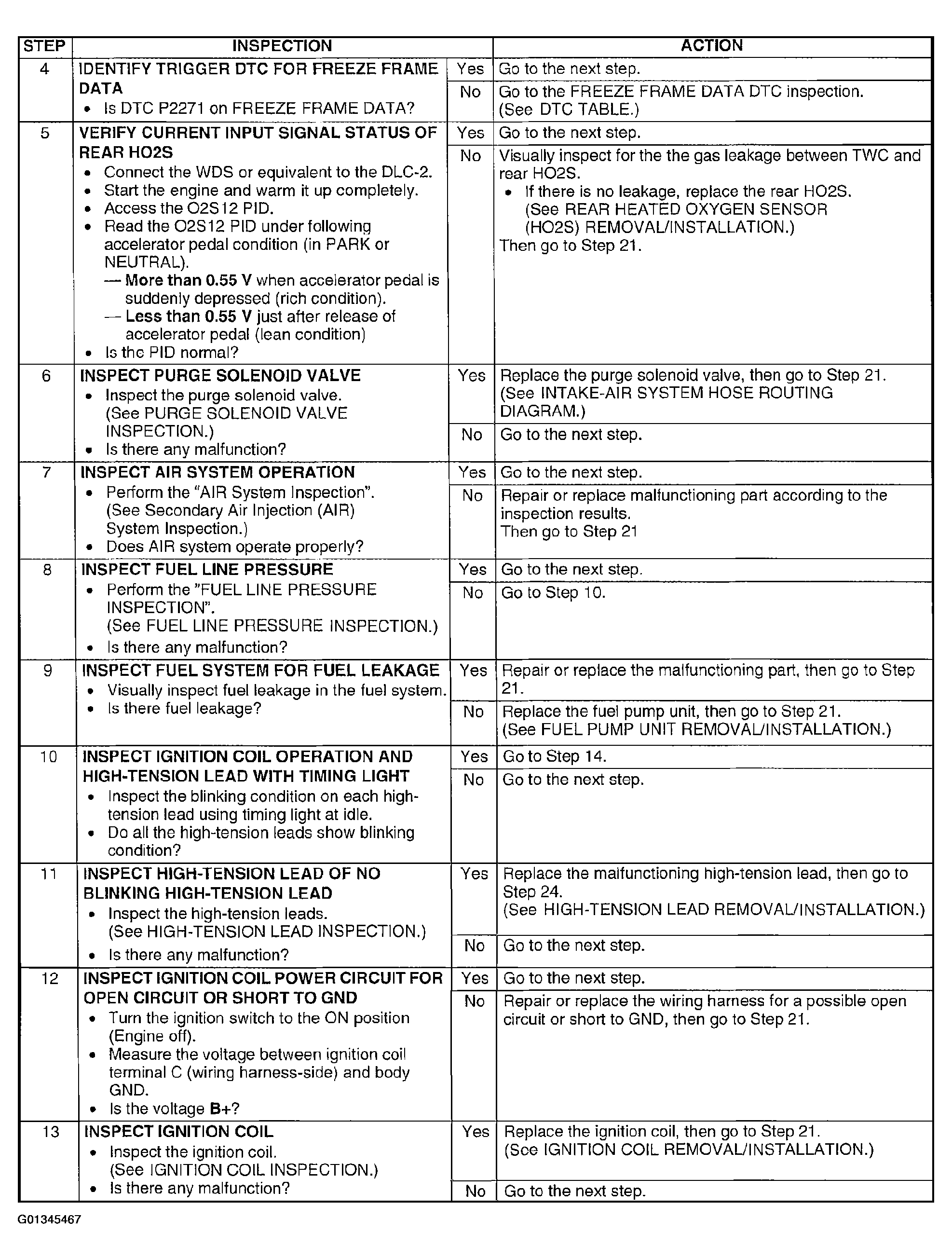

Fig 3: DTC P2271 Diagnostic Procedure Chart (Step 4-13)

Courtesy of MAZDA MOTORS CORP.

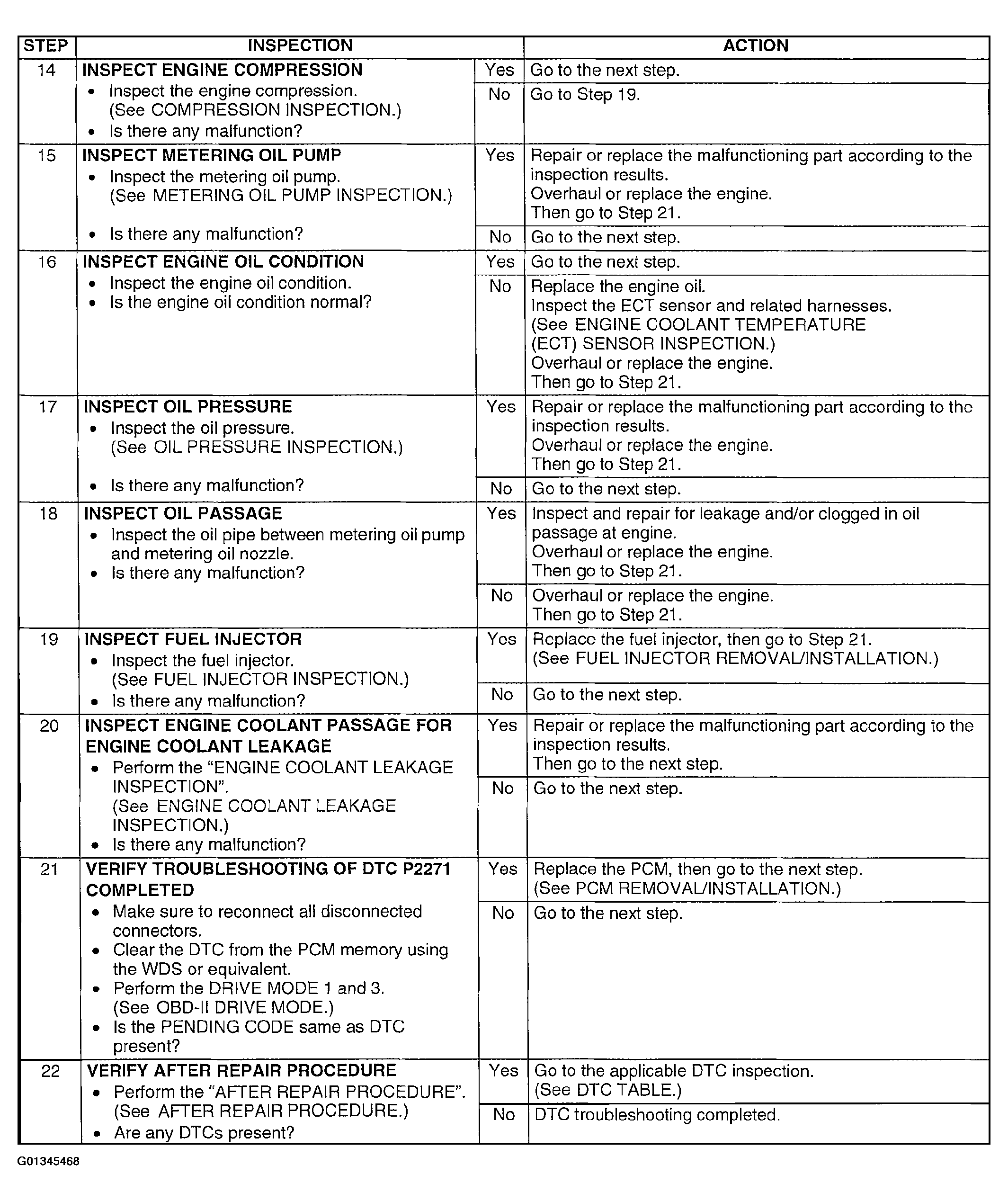

Fig 4: DTC P2271 Diagnostic Procedure Chart (Step 14-22)

Courtesy of MAZDA MOTORS CORP.
