Home >> Mazda >> 2004 >> RX-8 1.3 3 >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine Control System 13B-MSP) >> No. 7 Slow Return To Idle

No. 7 Slow Return To Idle

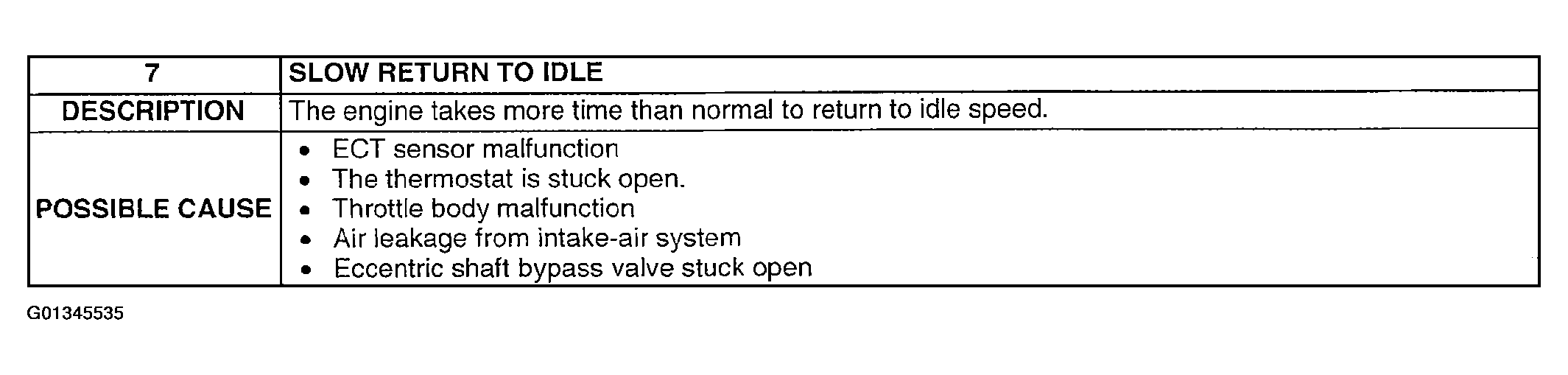

Fig 1: Possible Cause - No. 7 Slow Return To Idle
G01345535Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

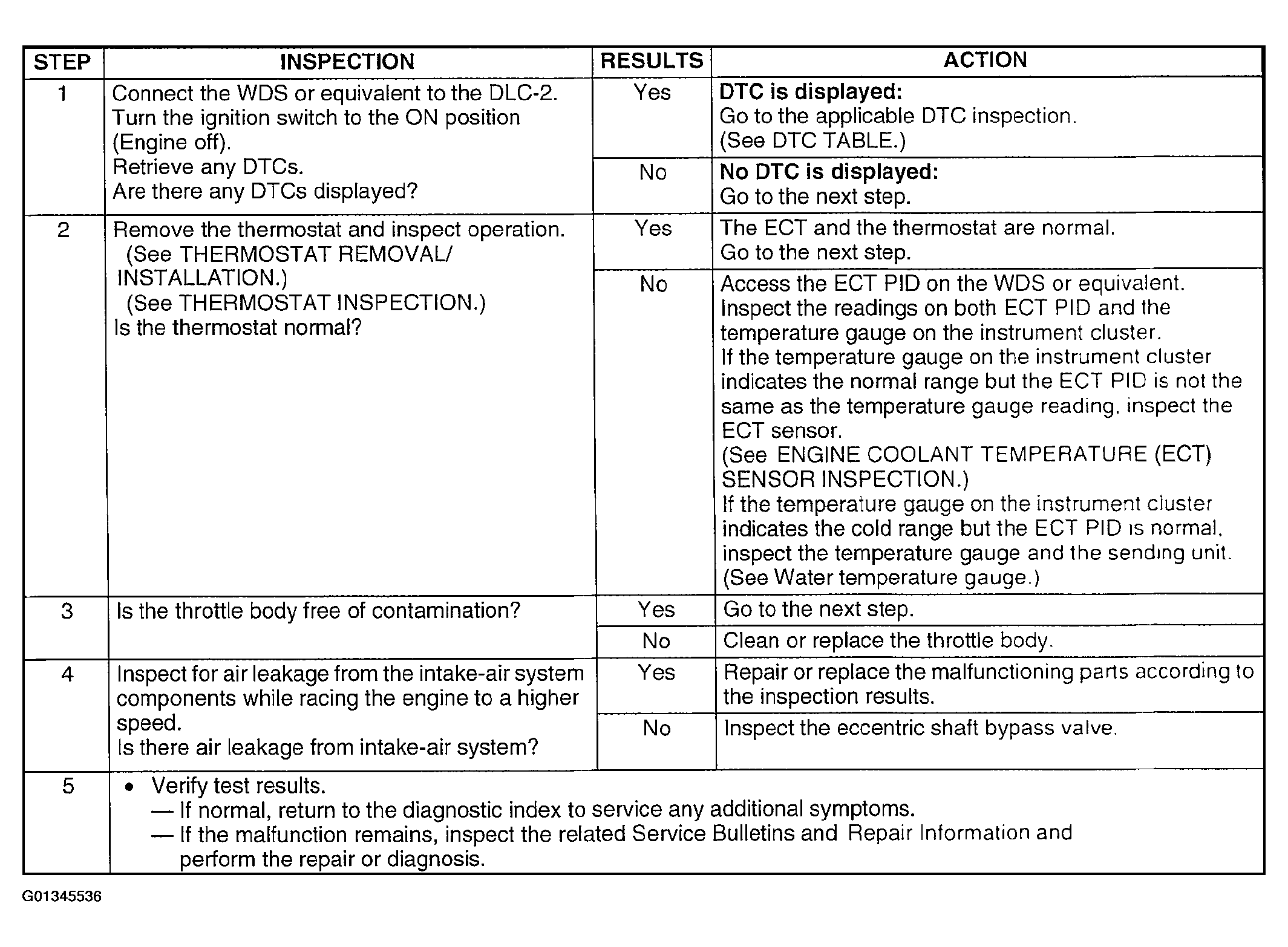

Fig 2: Diagnostic Procedure - No. 7 Slow Return To Idle
G01345536Courtesy of MAZDA MOTORS CORP.
