Symptom Troubleshooting [Engine Control System 13B-MSP)
>>
No. 28 Fuel Filling Shut Off Issues
No. 28 Fuel Filling Shut Off Issues

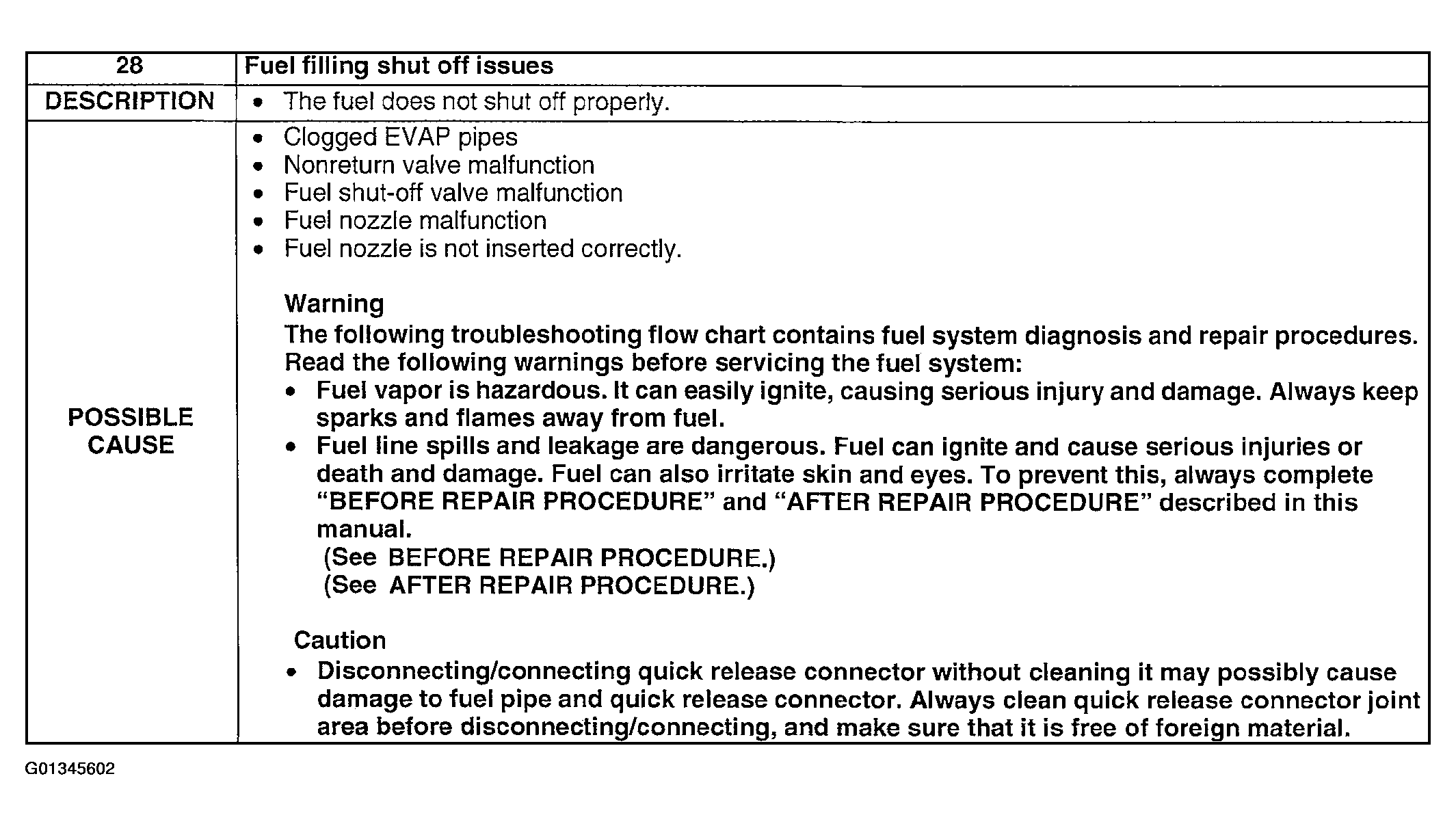

Fig 1: Possible Cause - No. 28 Fuel Filling Shut Off Issues
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

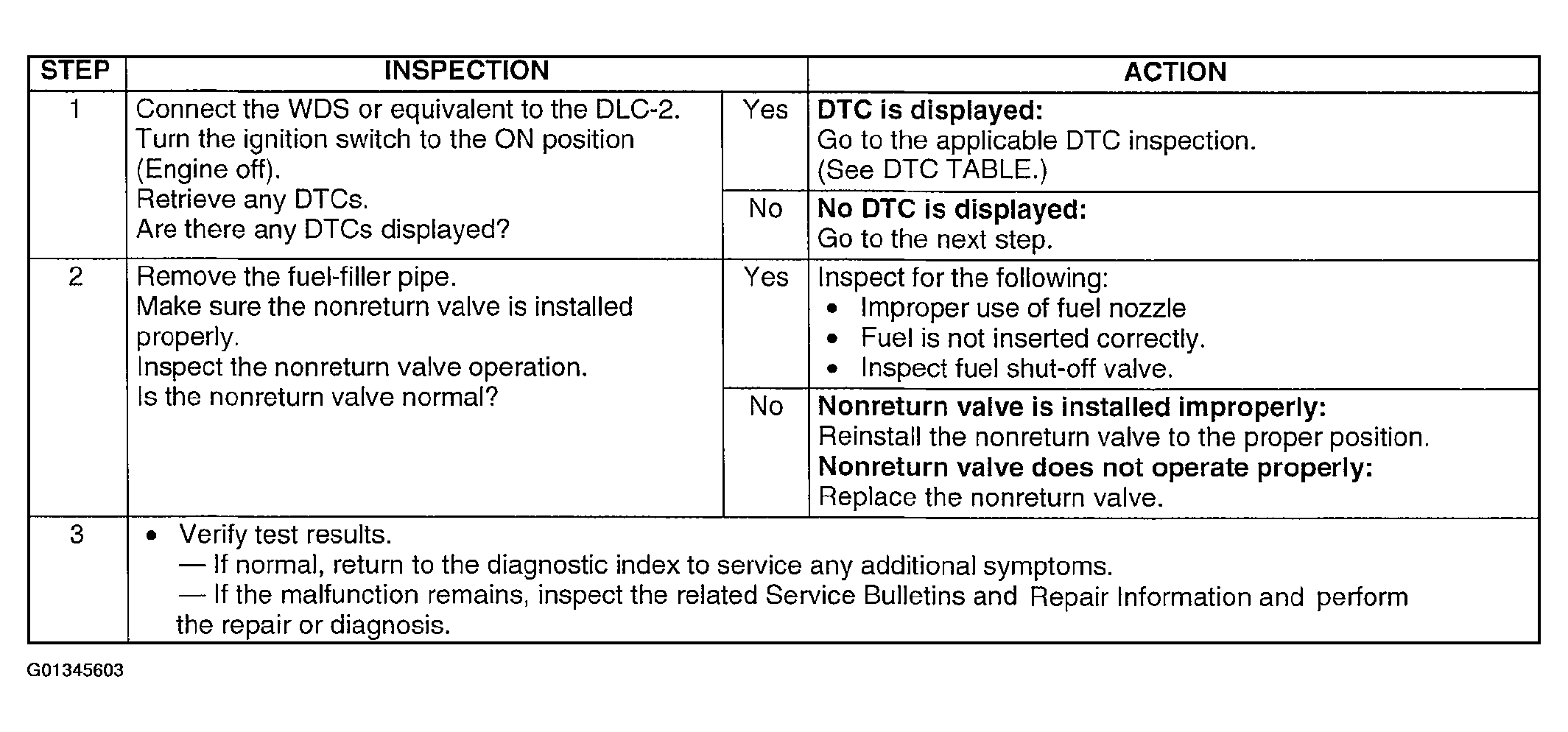

Fig 2: Diagnostic Procedure - No. 28 Fuel Filling Shut Off Issues
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
