No. 21 Engine Noise

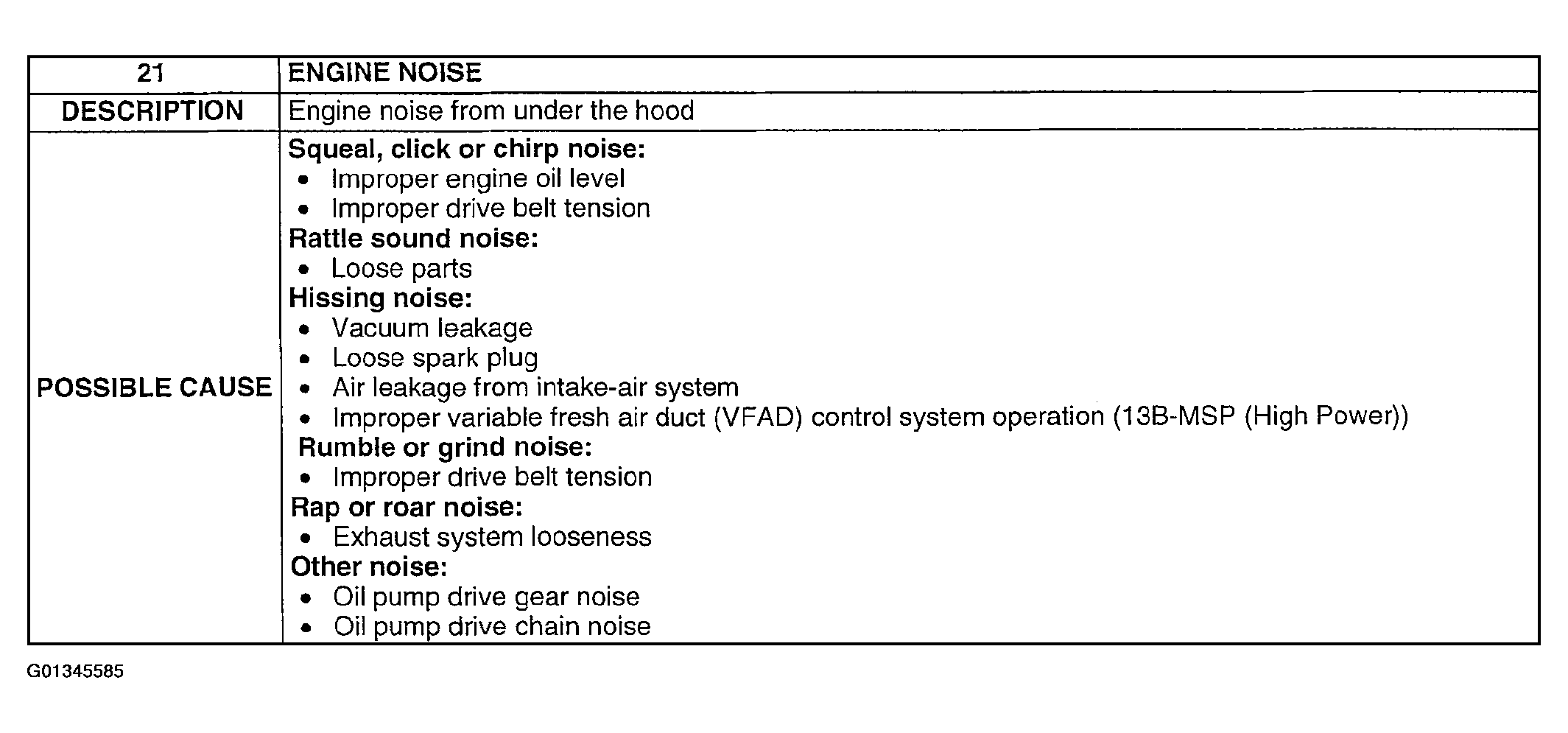

Fig 1: Possible Cause - No. 21 Engine Noise

G01345585

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

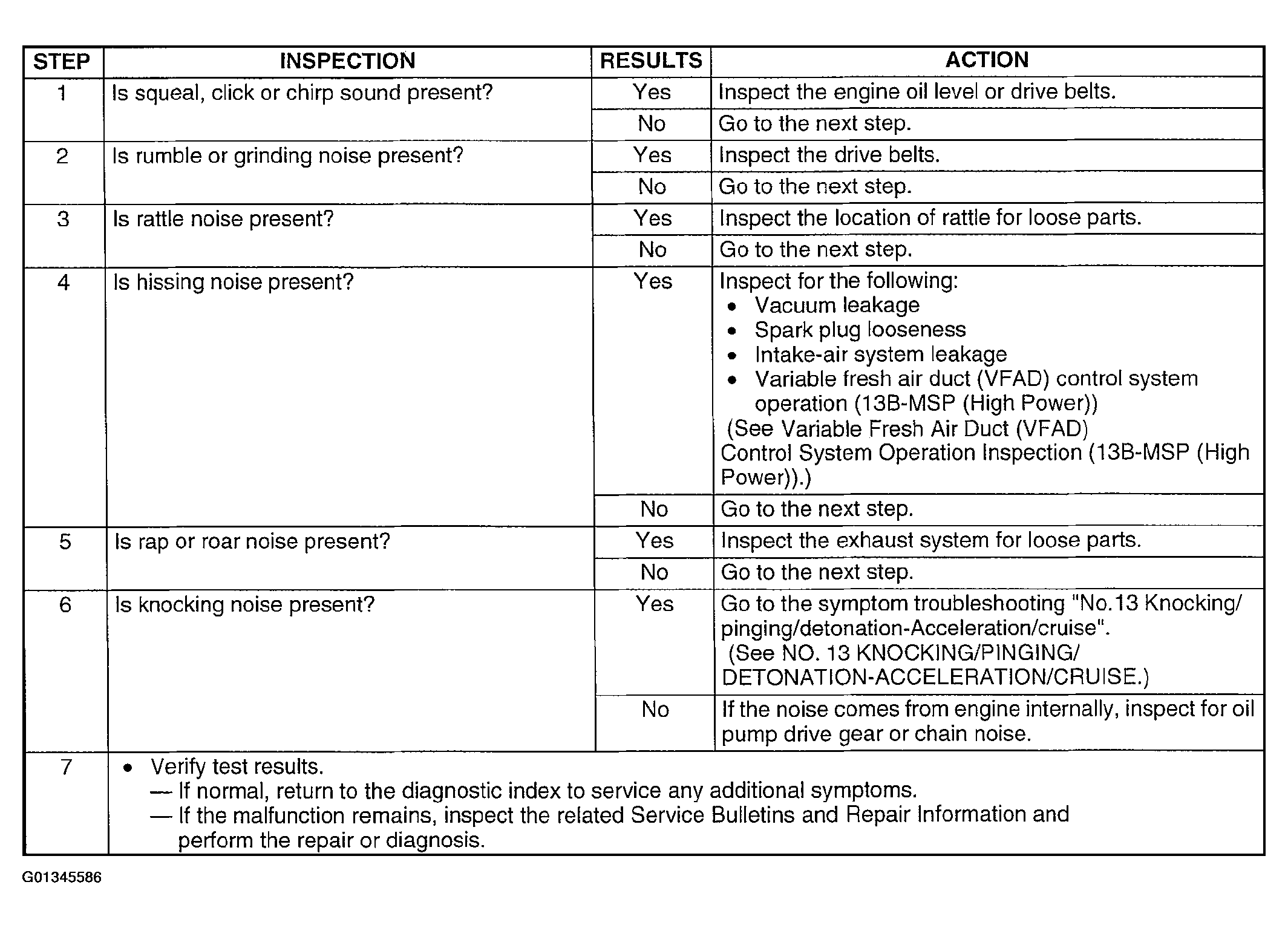

Fig 2: Diagnostic Procedure - No. 21 Engine Noise

G01345586

Courtesy of MAZDA MOTORS CORP.
