Diagnostic Procedure

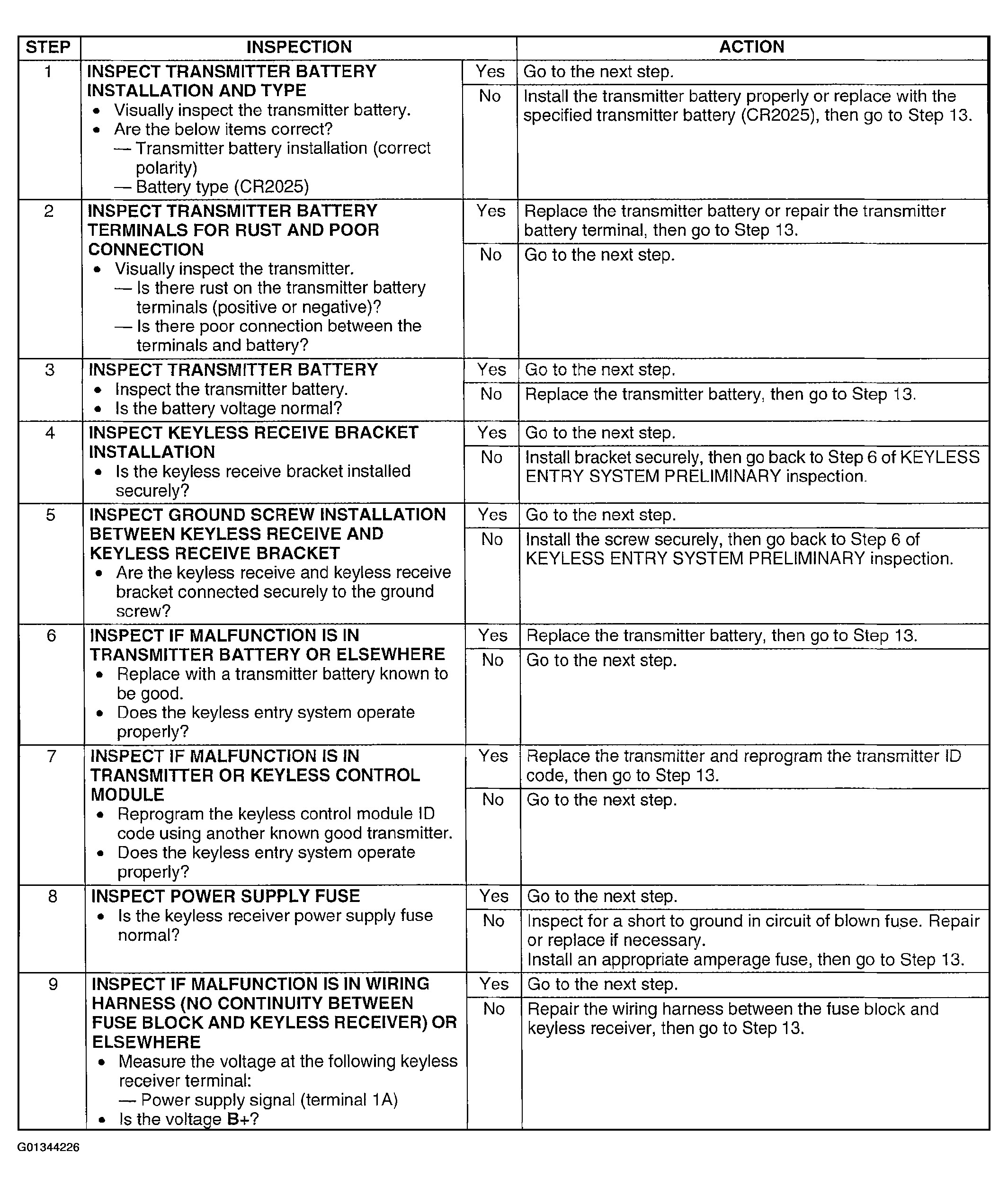

Fig 1: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 1-9)
G01344226Courtesy of MAZDA MOTORS CORP.

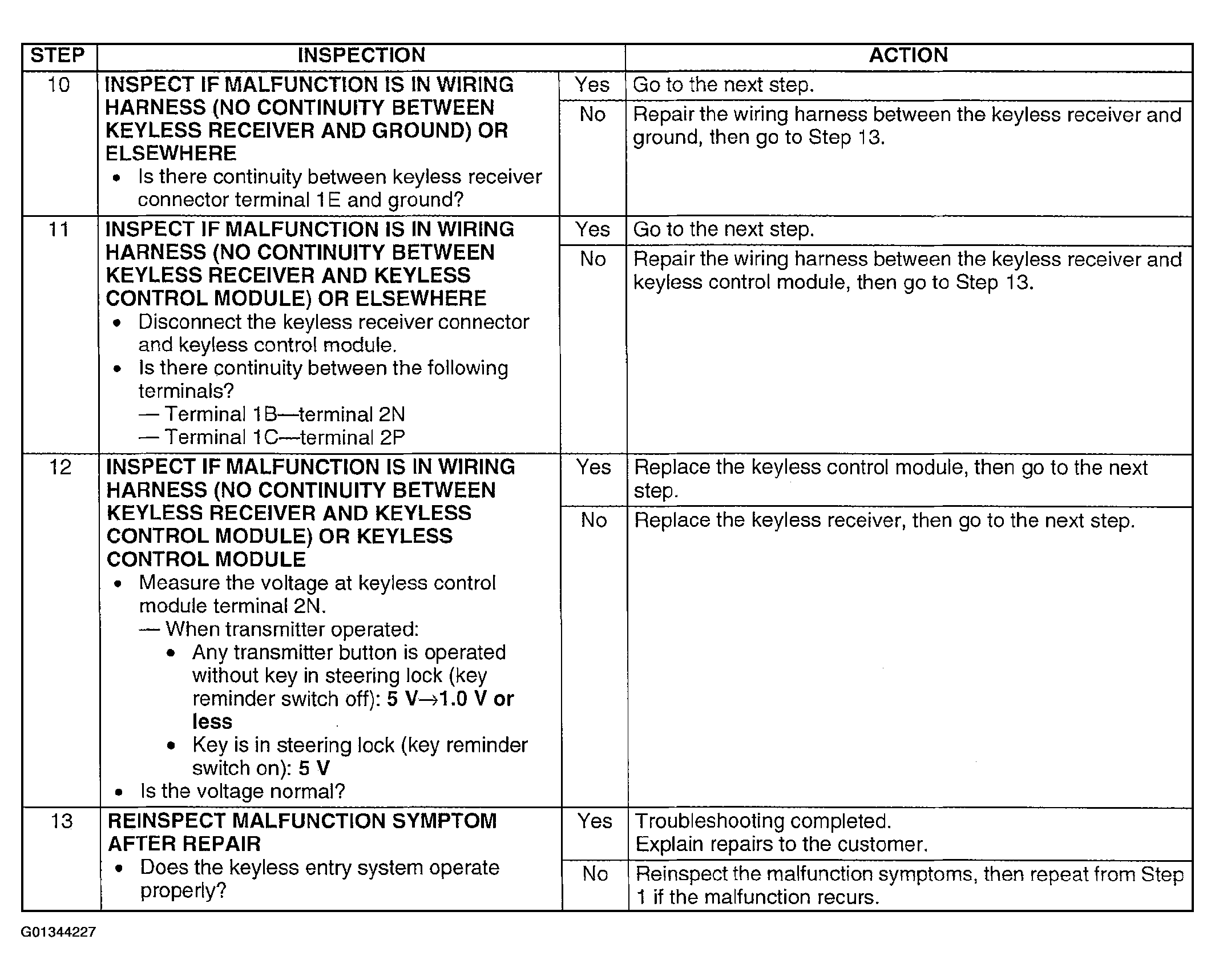

Fig 2: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 10-13)
G01344227Courtesy of MAZDA MOTORS CORP.
