VDI Valve Assembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply grease to the VDI valve end as shown in the figure.

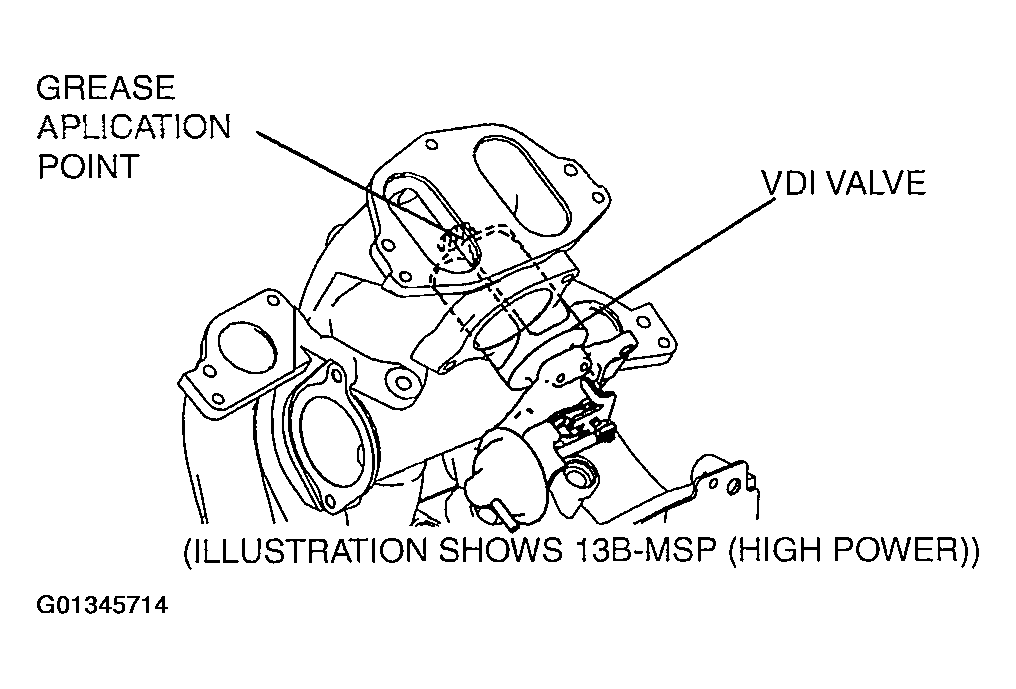

    Fig 1: Applying Grease To VDI Valve End
    G01345714Courtesy of MAZDA MOTORS CORP.
