No. 5 Engine Stalls-After Start, At Idle: Notes

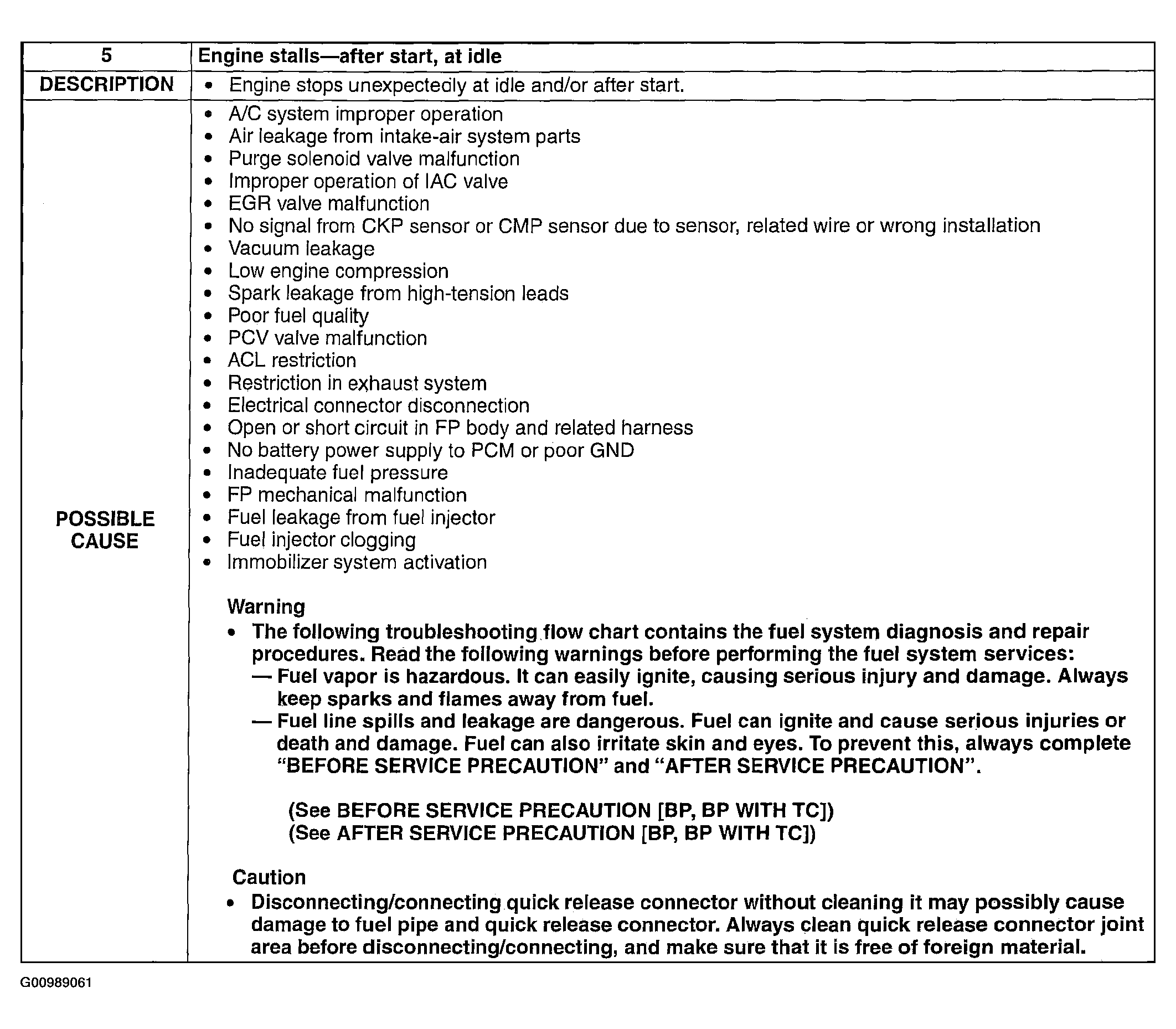

Fig 1: Possible Causes - No. 5 Engine Stalls-After Start, At Idle [BP, BP With TC]

G00989061

Courtesy of MAZDA MOTORS CORP.
