Diagnostic Procedure

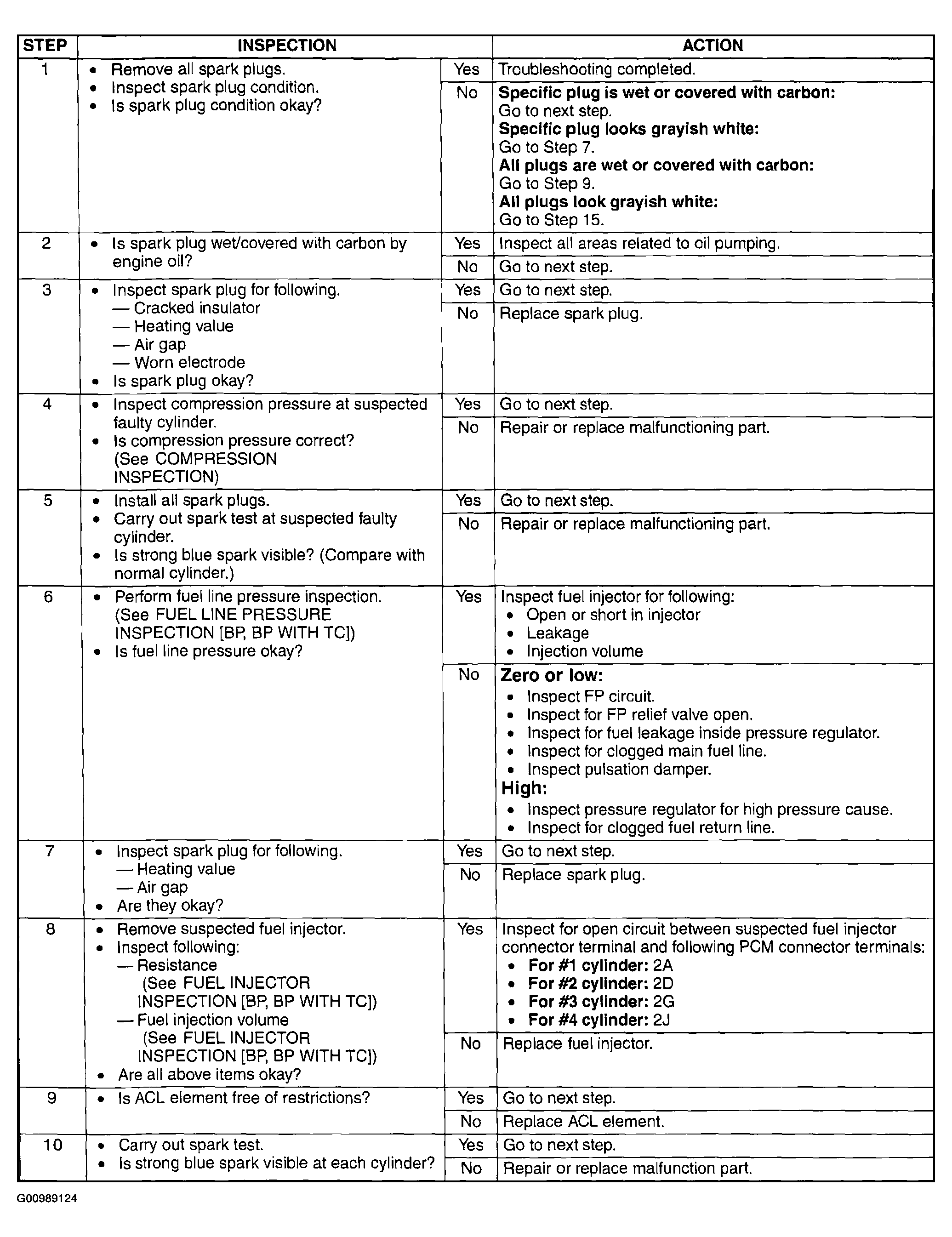

Fig 1: Diagnostic Procedure - No. 31 Spark Plug Condition [BP, BP With TC] (Steps 1-10)
G00989124Courtesy of MAZDA MOTORS CORP.

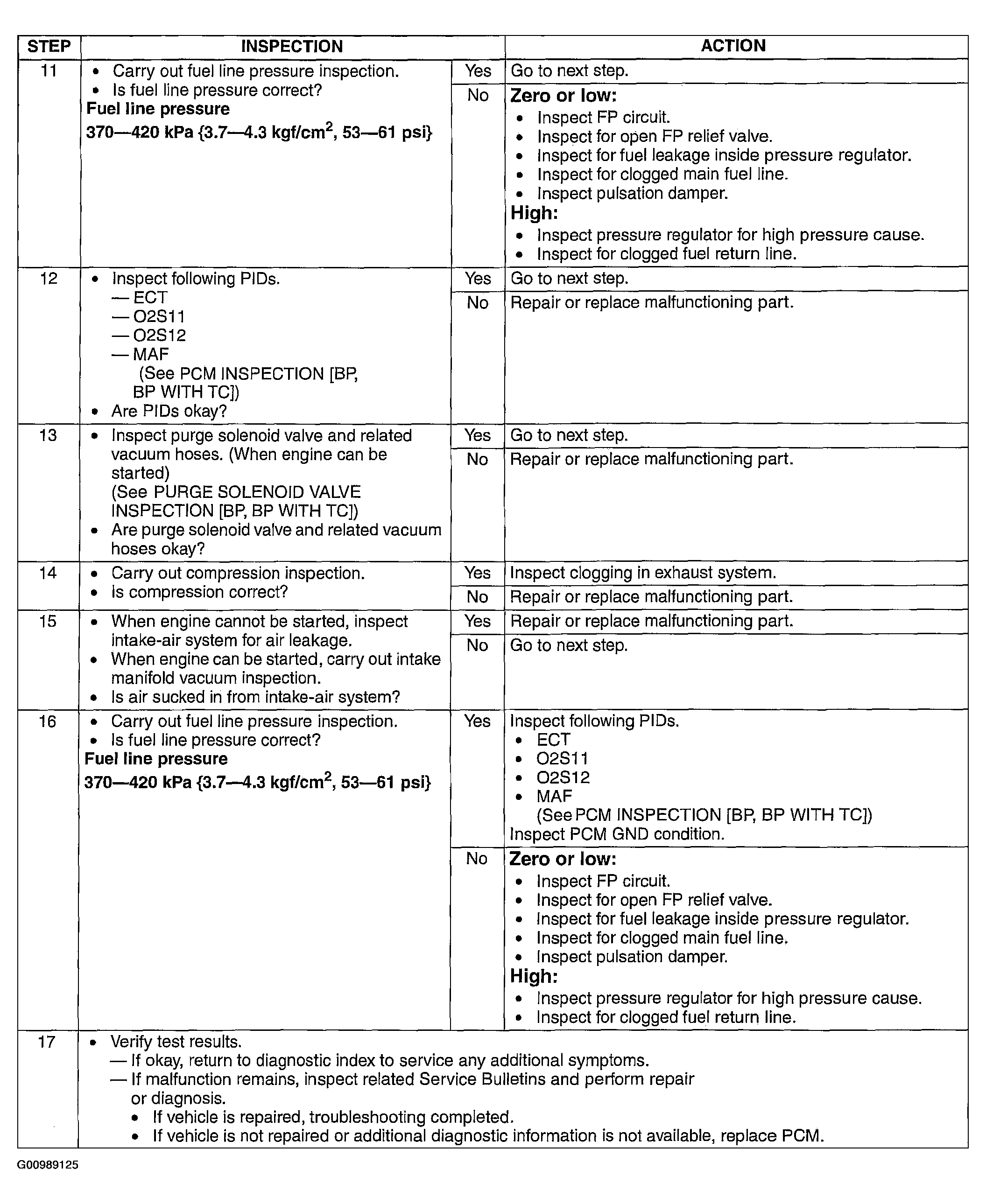

Fig 2: Diagnostic Procedure - No. 31 Spark Plug Condition [BP, BP With TC] (Steps 11-17)
G00989125Courtesy of MAZDA MOTORS CORP.
