Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 28 Fuel Refill Concerns
>>
Diagnostic Procedure
Diagnostic Procedure

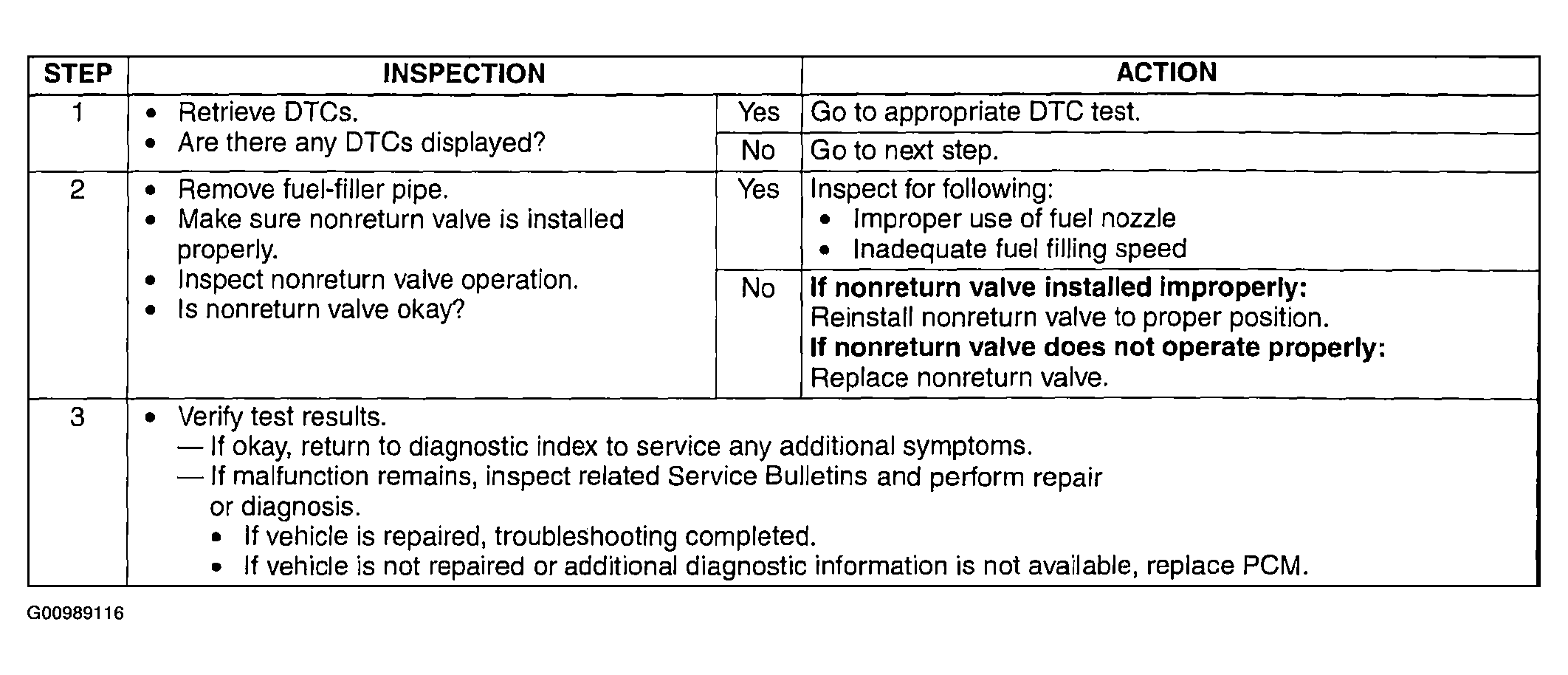

Fig 1: Diagnostic Procedure - No. 28 Fuel Refill Concerns [BP, BP With TC] (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
