Home
>>
Mazda
>>
2004
>>
MX-5 Miata Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 27 Intermittent Concerns
>>
Diagnostic Procedure
Diagnostic Procedure

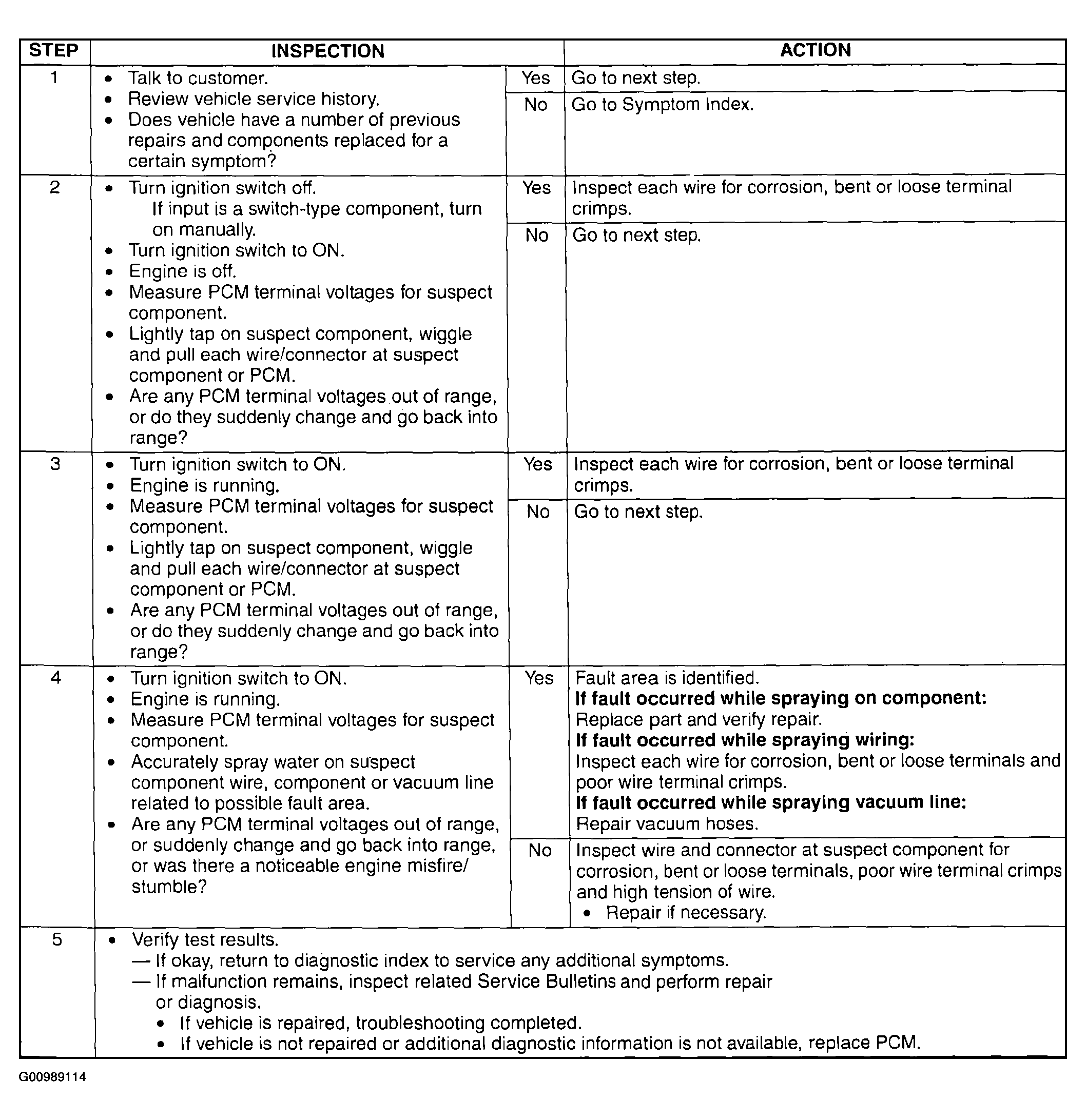

Fig 1: Diagnostic Procedure - No. 27 Intermittent Concerns [BP, BP WITH TC] (Step 1-5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
