Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 22 Vibration Concerns (Engine)
>>
Diagnostic Procedure
Diagnostic Procedure

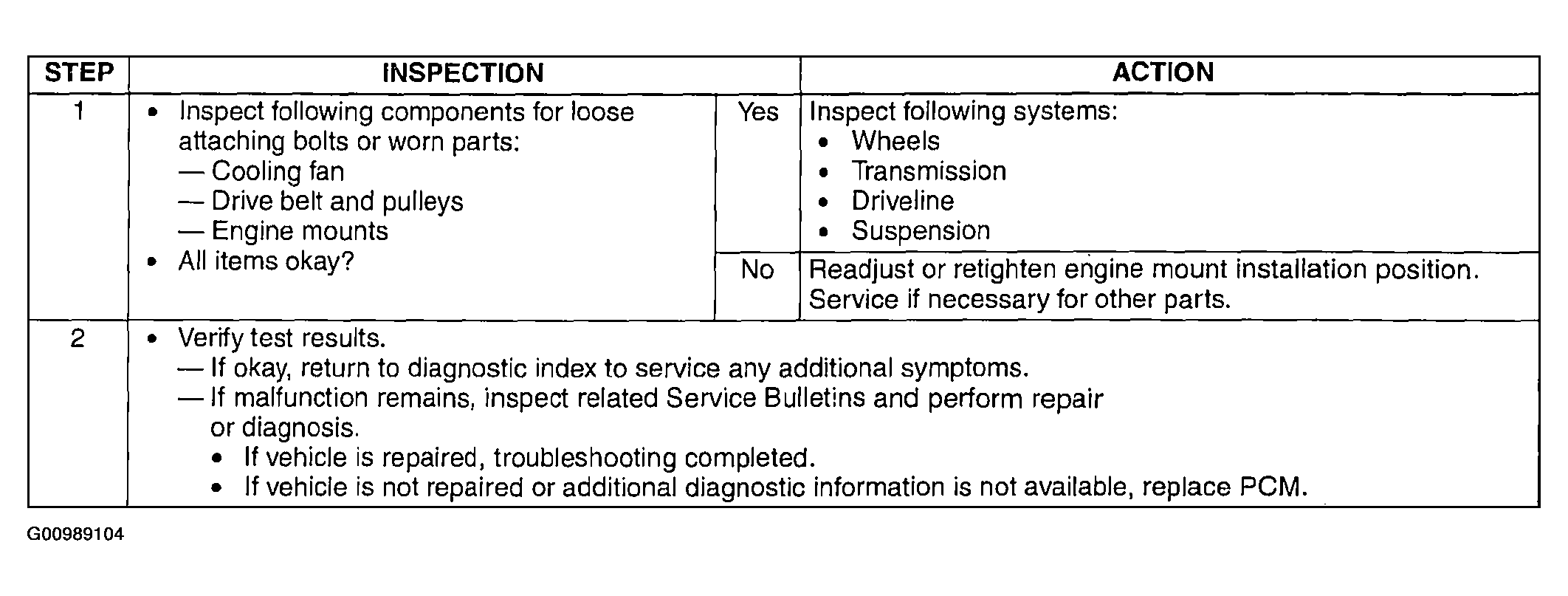

Fig 1: Diagnostic Procedure - No. 22 Vibration Concerns (Engine) [BP, BP With TC] (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
