Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 15 Emission Compliance
>>
Notes
No. 15 Emission Compliance: Notes

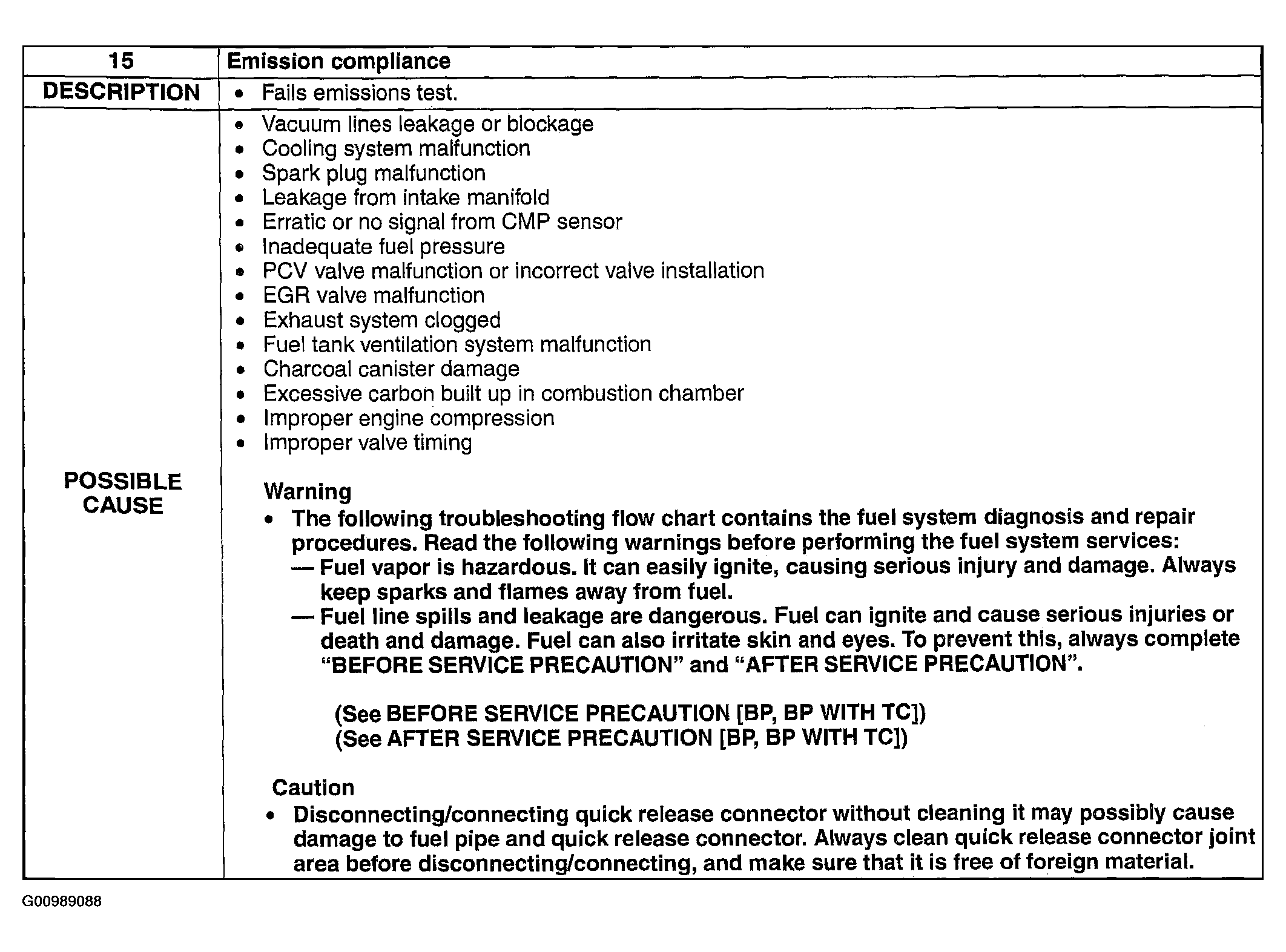

Fig 1: Possible Causes - No. 15 Emission Compliance [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
