Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 13 Knocking/Pinging
>>
Diagnostic Procedure
Diagnostic Procedure

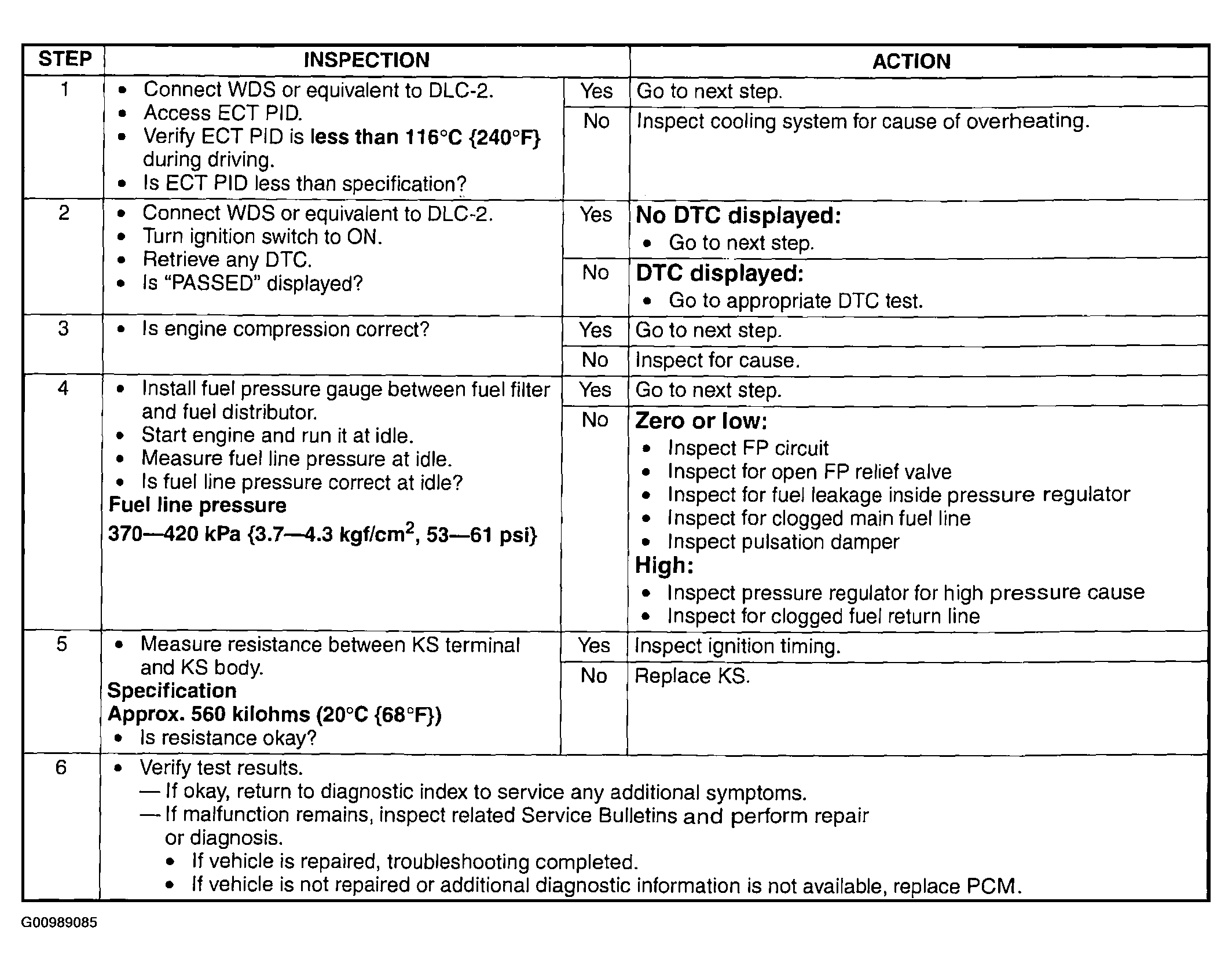

Fig 1: Possible Causes - No. 13 Knocking/Pinging [BP, BP With TC] (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
