Diagnostic Procedure

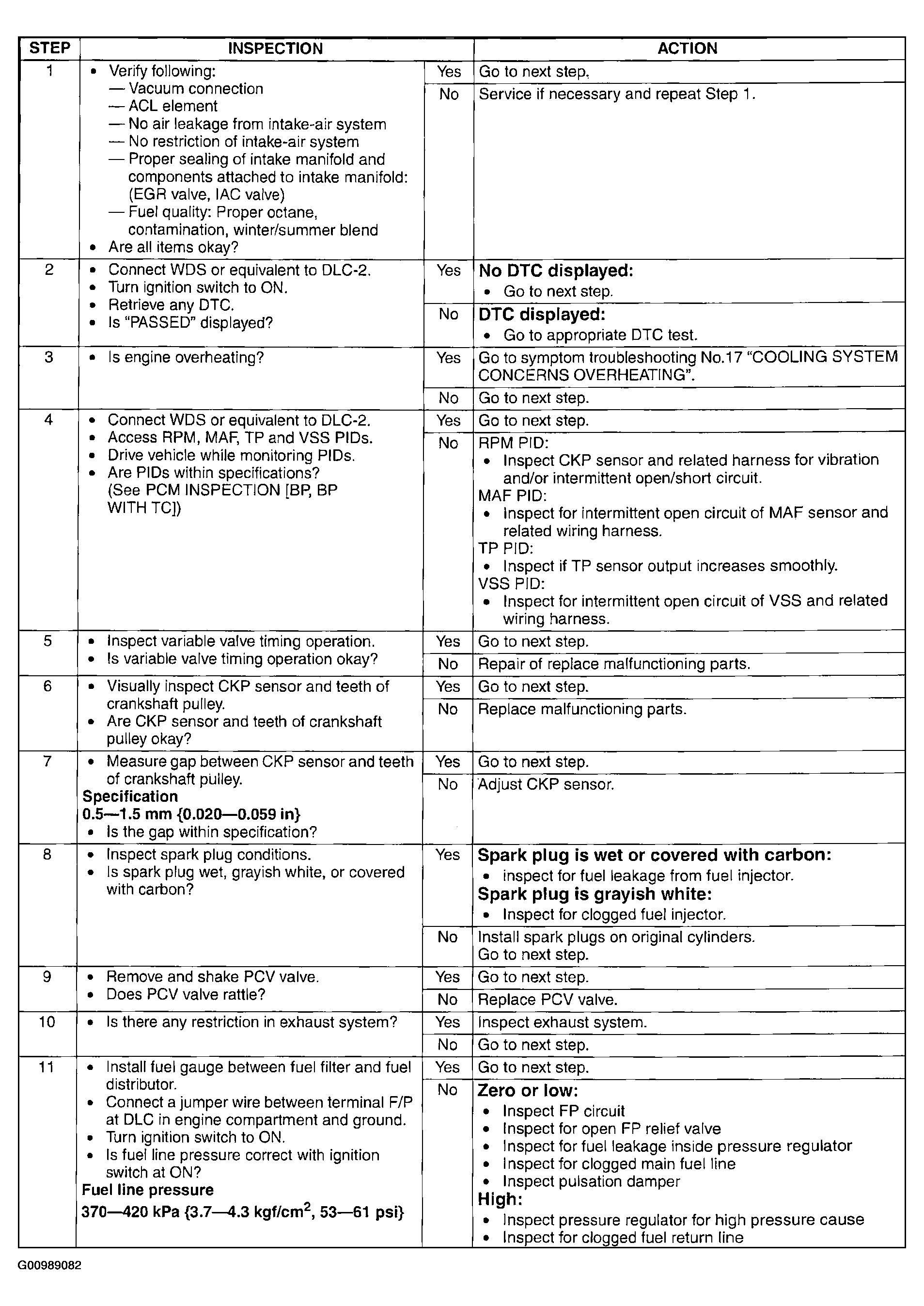

Fig 1: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise [BP, BP With TC] (Steps 1-11)
G00989082Courtesy of MAZDA MOTORS CORP.

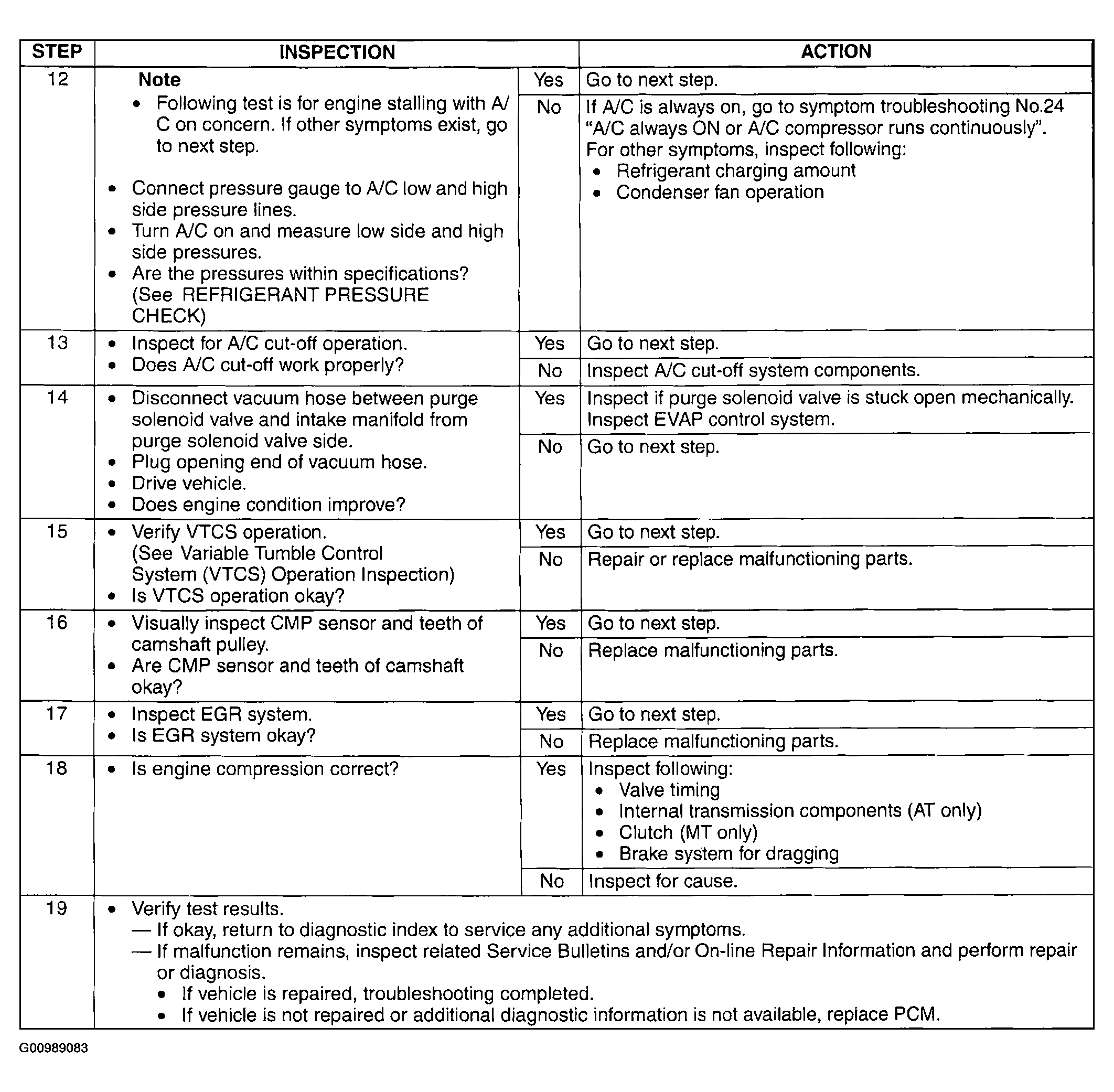

Fig 2: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise [BP, BP With TC] (Steps 12-19)
G00989083Courtesy of MAZDA MOTORS CORP.
