DTC P2188: Fuel System Too Rich At Idle: Notes

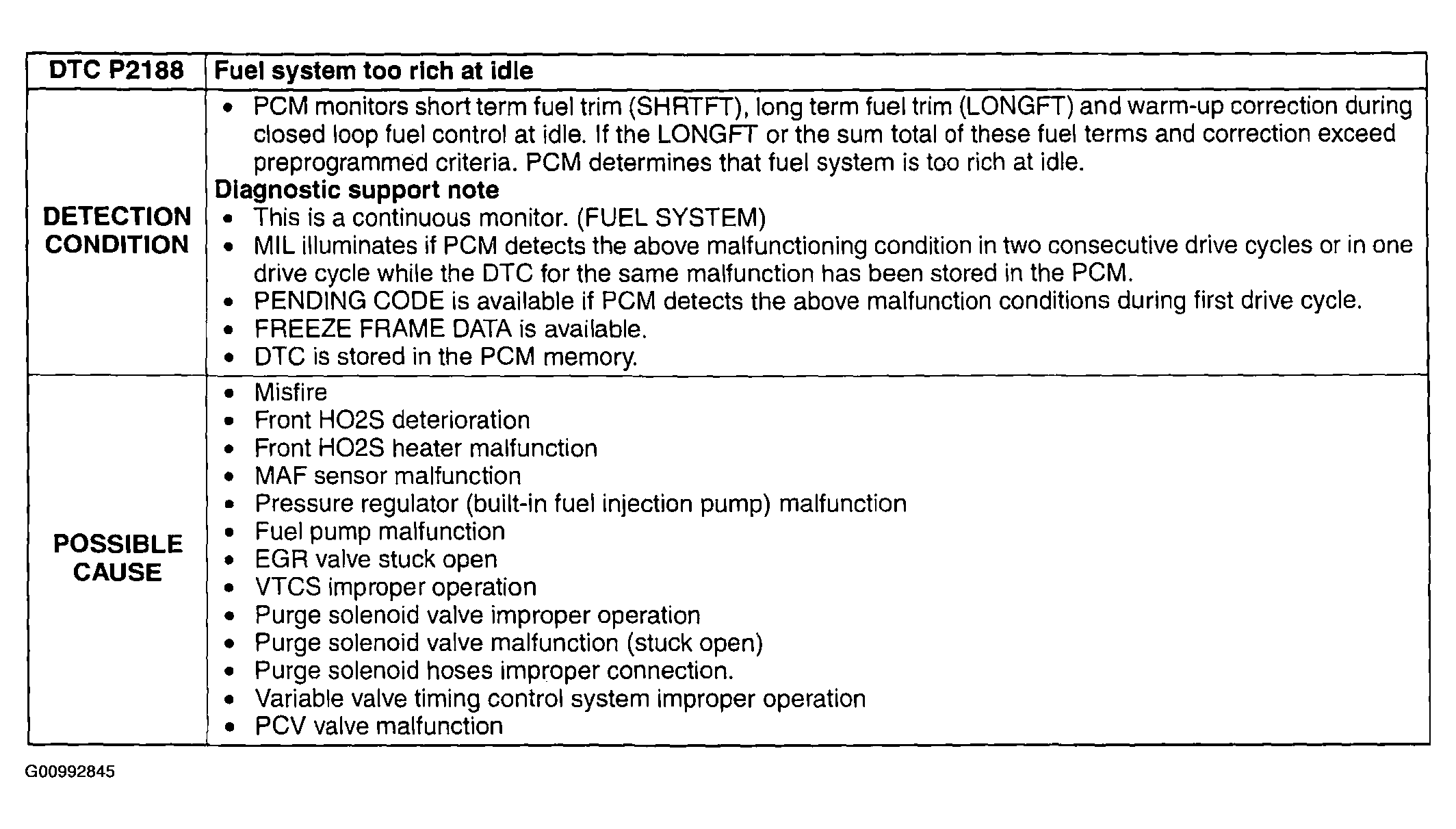

Fig 1: Possible Causes - DTC P2188 [BP, BP With TC]

G00992845

Courtesy of MAZDA MOTORS CORP.
