DTC P2178: Fuel System Too Rich At Off Idle: Notes

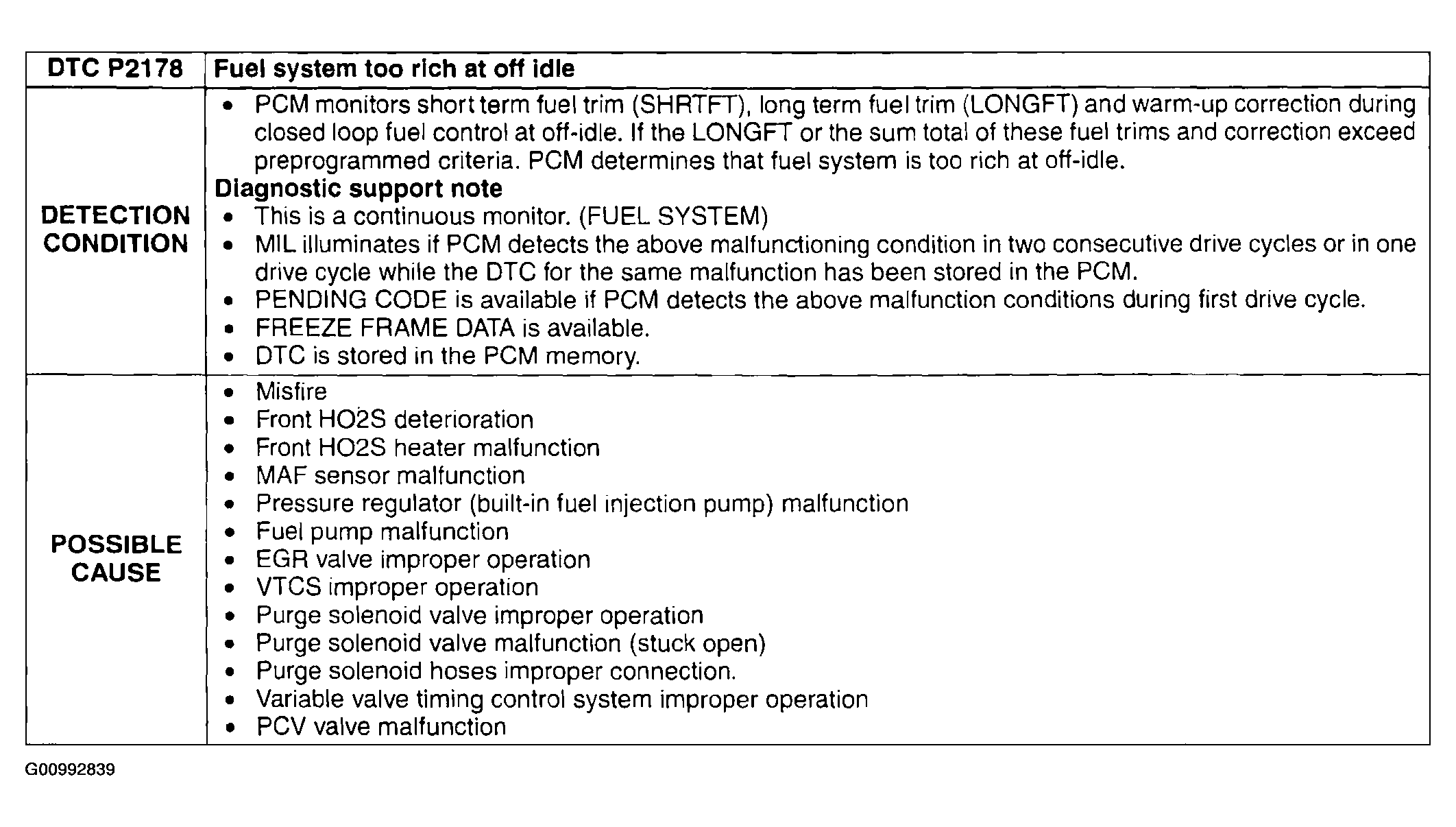

Fig 1: Possible Causes - DTC P2178 [BP, BP With TC]

G00992839

Courtesy of MAZDA MOTORS CORP.
