Home >> Mazda >> 2004 >> MX-5 Miata Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P2009: VTCS Solenoid Valve Circuit Low Input >> Notes

DTC P2009: VTCS Solenoid Valve Circuit Low Input: Notes

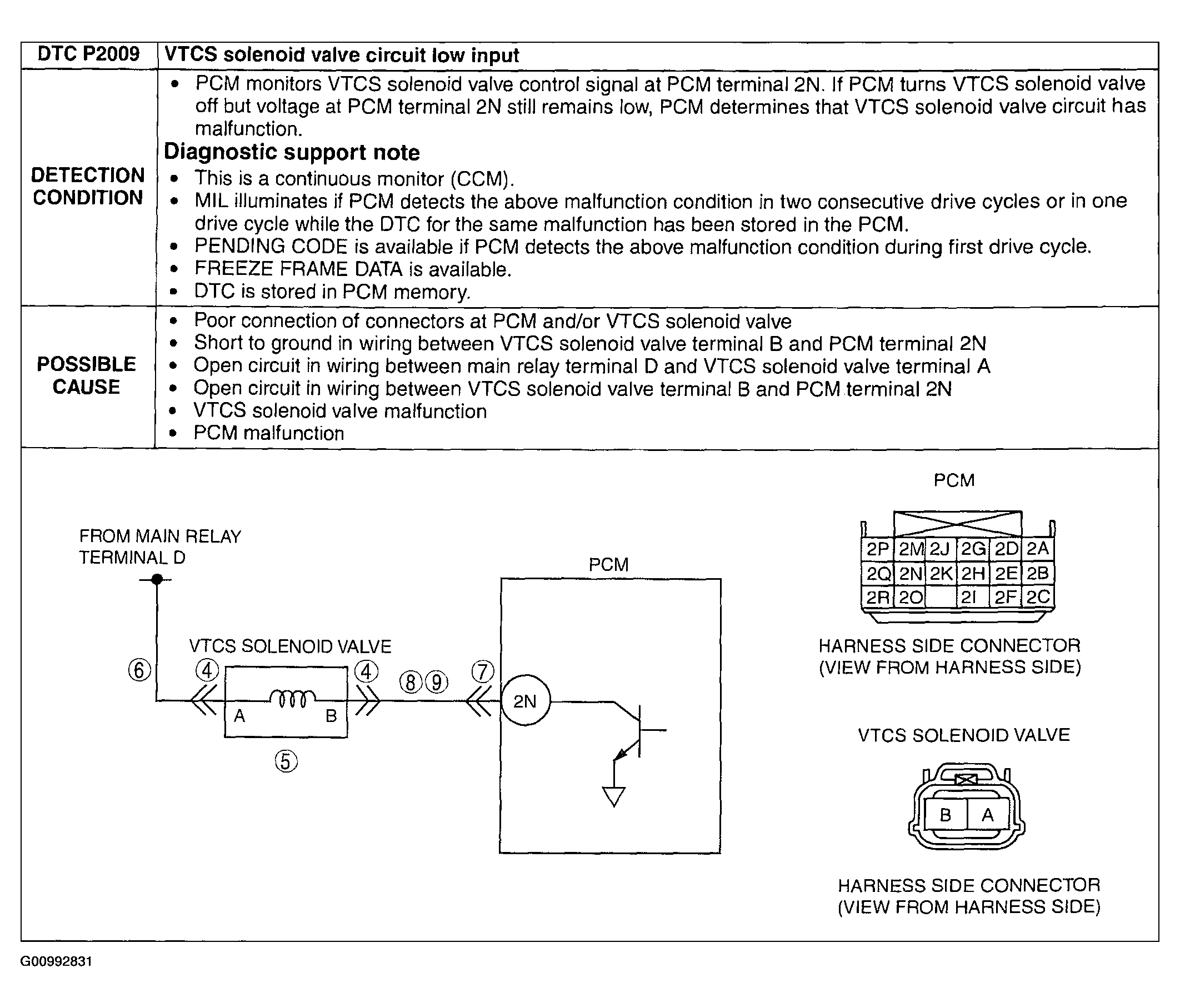

Fig 1: Possible Causes - DTC P2009 [BP, BP With TC]

G00992831

Courtesy of MAZDA MOTORS CORP.
