Home >> Mazda >> 2004 >> MX-5 Miata Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P0600: [ATX] Communication Line Error (Pcm-TCM) >> Notes

DTC P0600: [ATX] Communication Line Error (Pcm-TCM): Notes

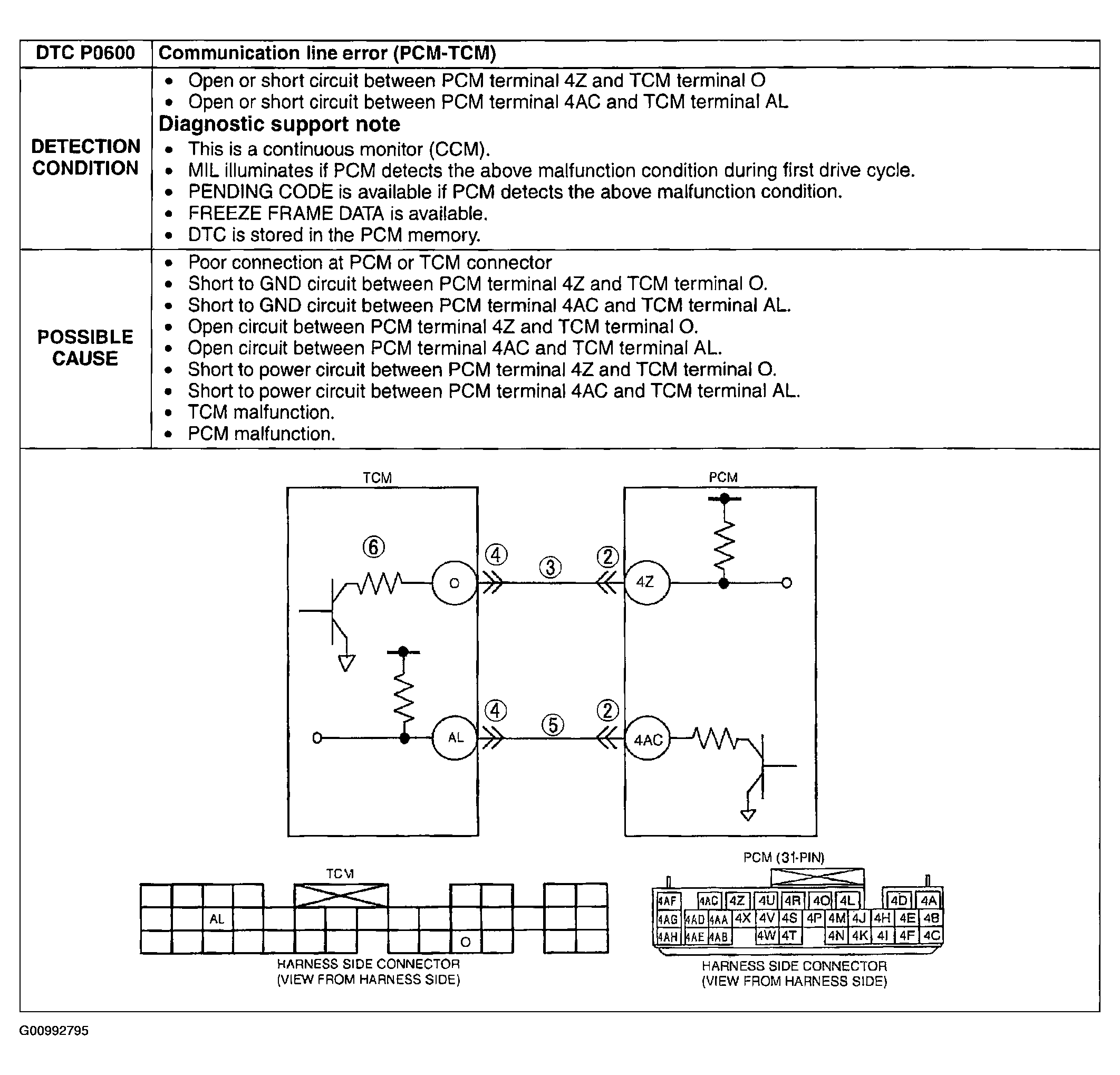

Fig 1: Possible Causes - DTC P0600 [ATX]

G00992795

Courtesy of MAZDA MOTORS CORP.
