DTC P0507: Idle Control System Rpm Higher Than Expected: Notes

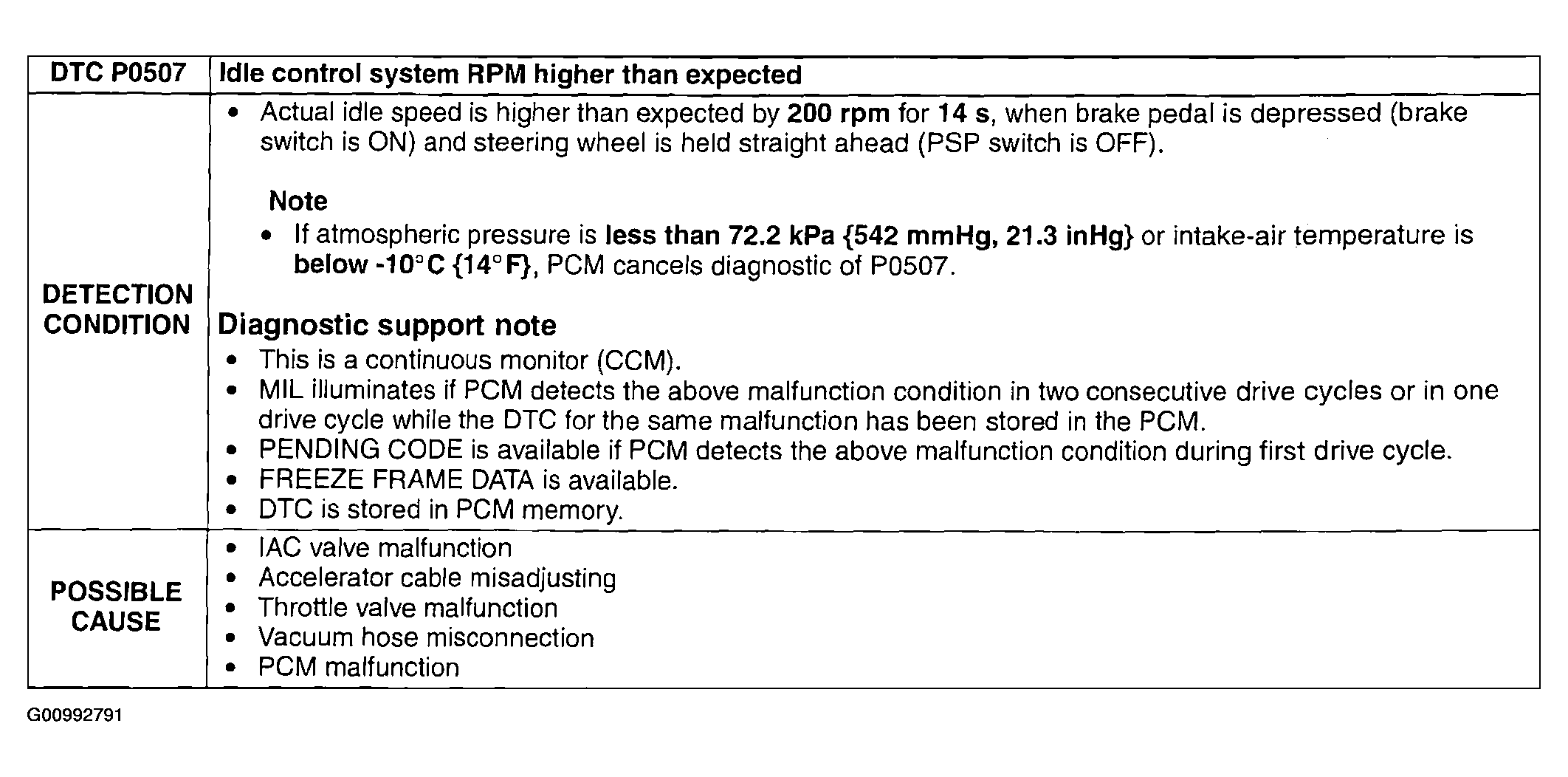

Fig 1: Possible Causes - DTC P0507 [BP, BP With TC]

G00992791

Courtesy of MAZDA MOTORS CORP.
