Diagnostic Procedure

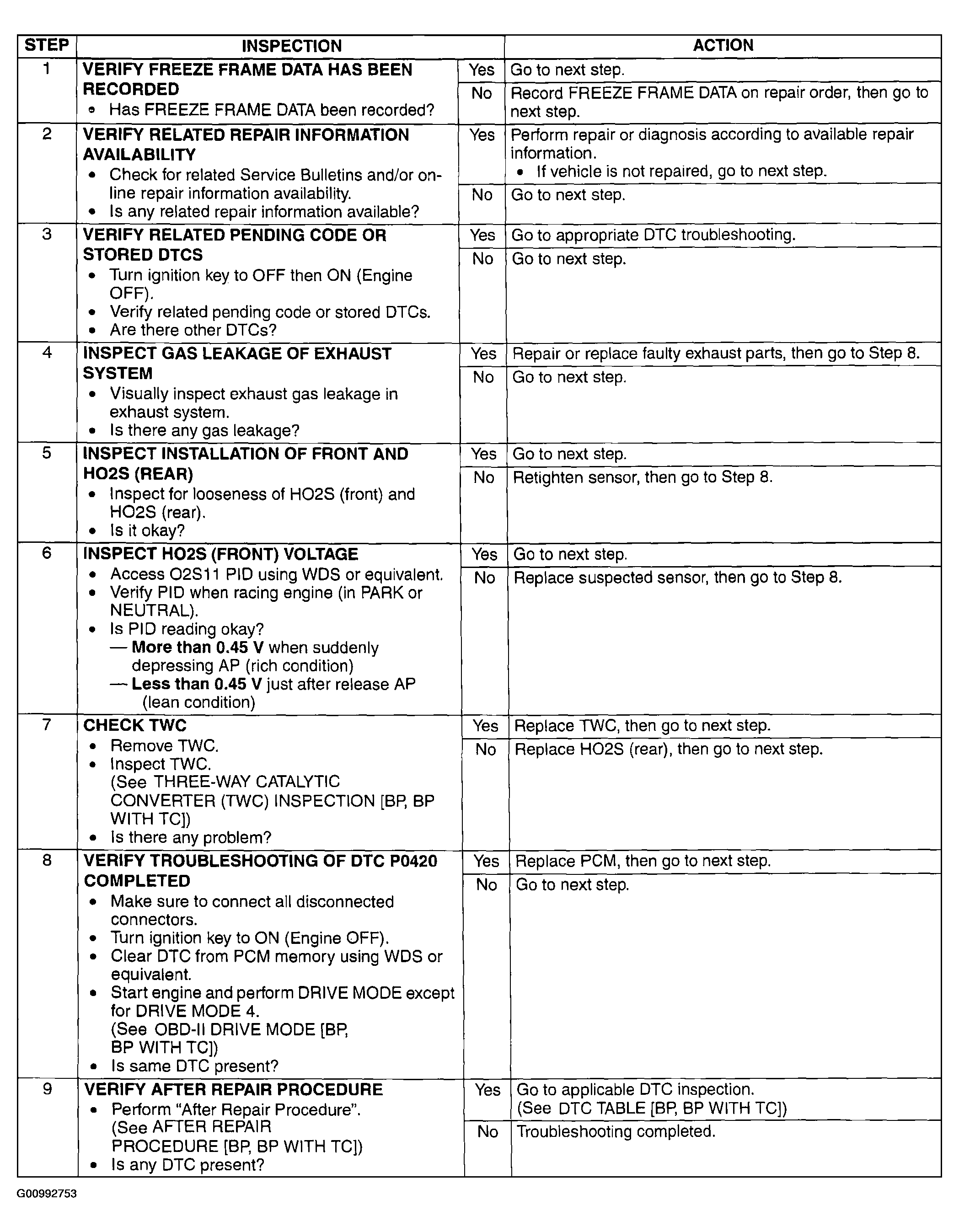

Fig 1: Diagnostic Procedure - DTC P0420 [BP, BP With TC]
G00992753Courtesy of MAZDA MOTORS CORP.
