Diagnostic Procedure

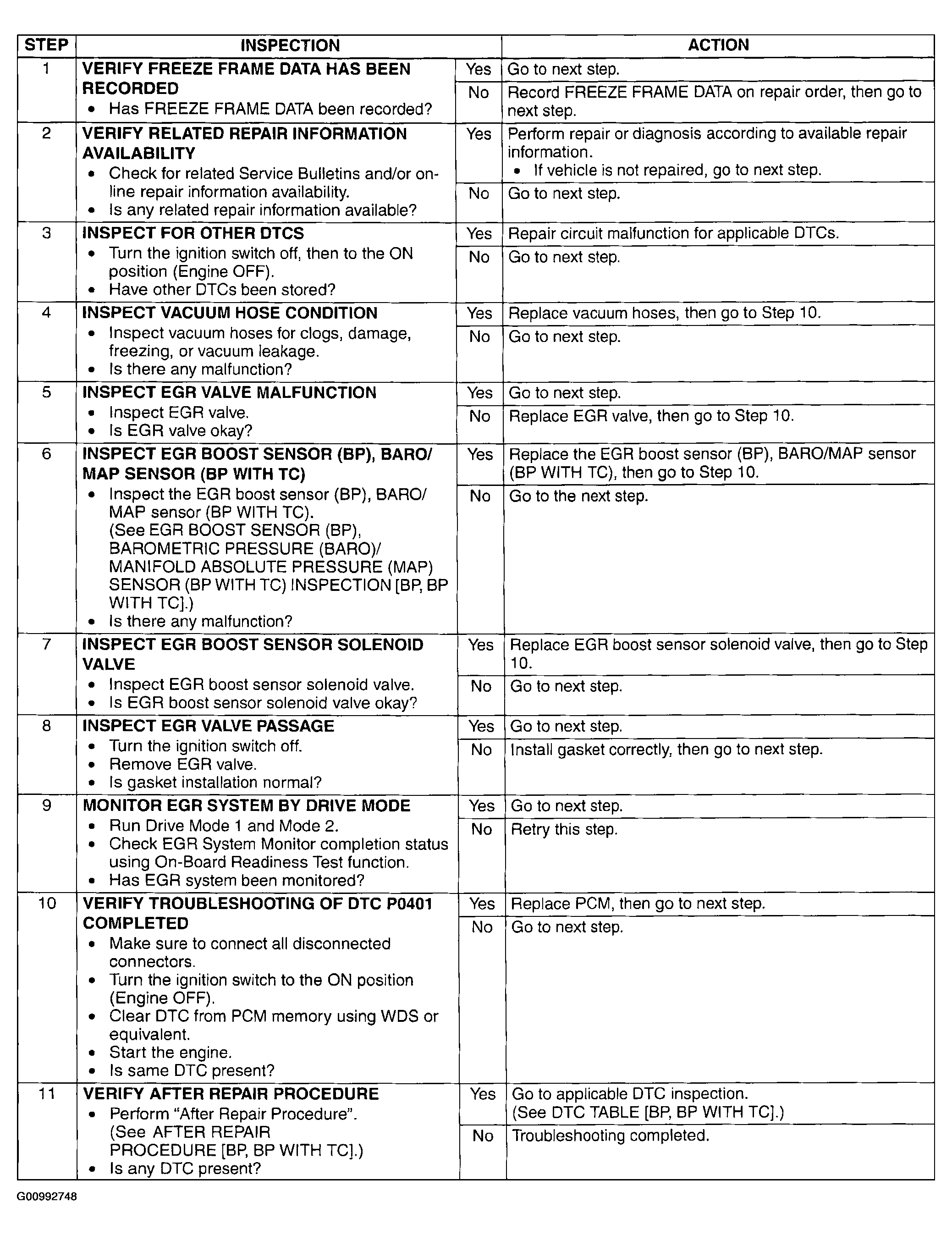

Fig 1: Diagnostic Procedure - DTC P0401 [BP, BP With TC]
G00992748Courtesy of MAZDA MOTORS CORP.
