DTC P0134: Ho2S (Front) Circuit No Activity Detected: Notes

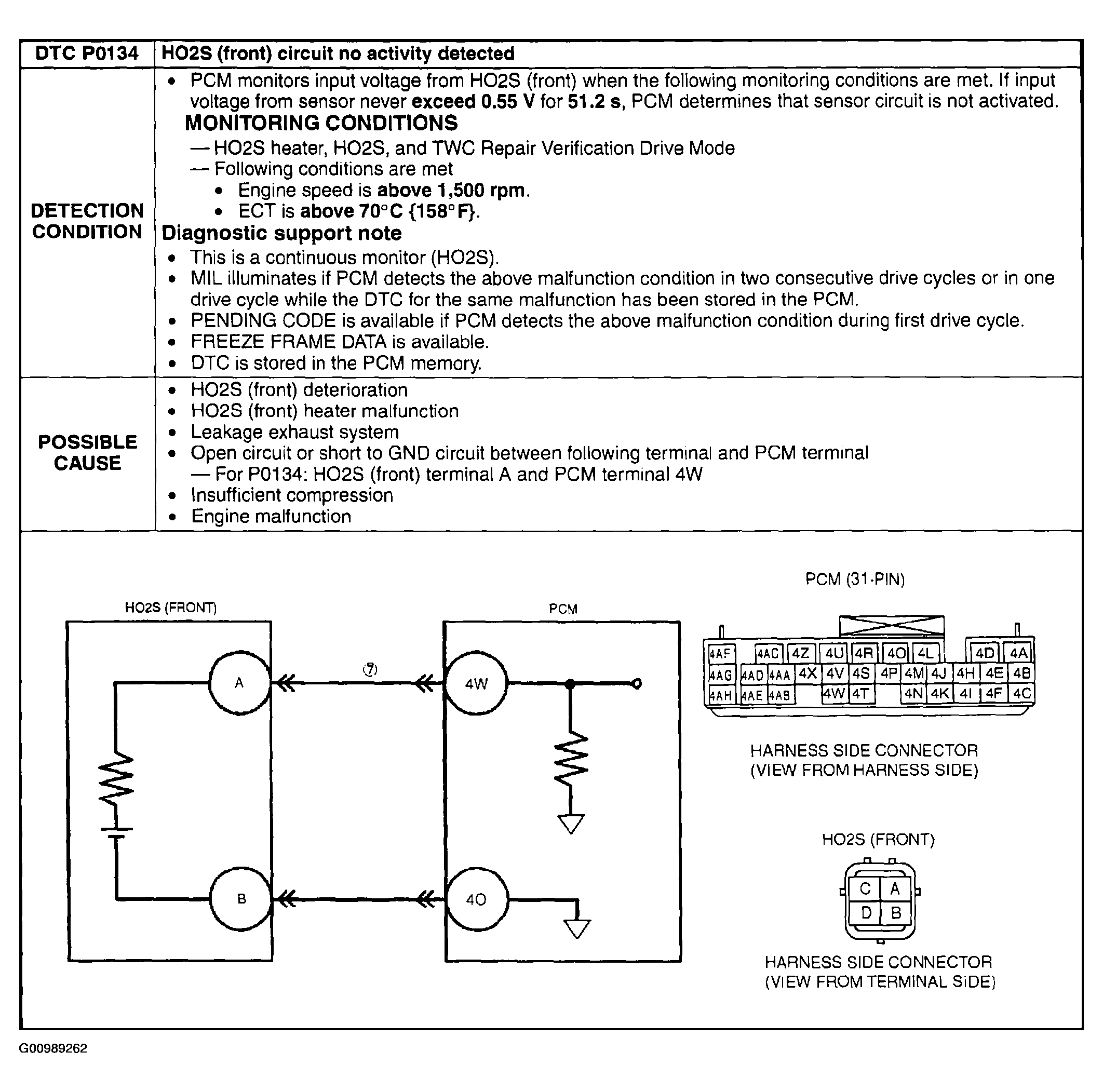

Fig 1: Possible Causes - DTC P0134 [BP, BP With TC]

G00989262

Courtesy of MAZDA MOTORS CORP.
