Home >> Mazda >> 2004 >> MX-5 Miata Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P0122: TP Circuit Low Input >> Diagnostic Procedure

Diagnostic Procedure

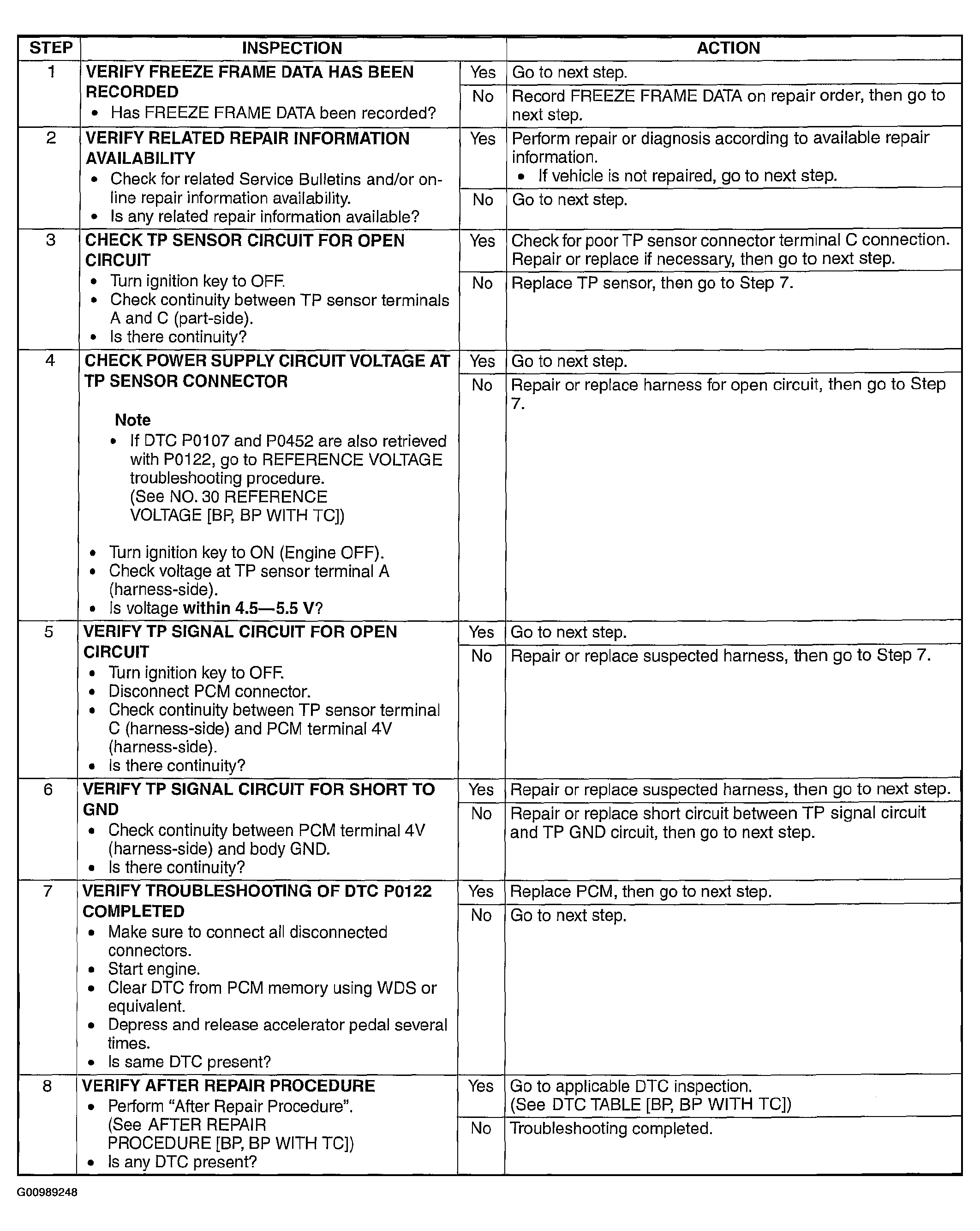

Fig 1: Diagnostic Procedure - DTC P0122 [BP, BP With TC]
G00989248Courtesy of MAZDA MOTORS CORP.
