Home >> Mazda >> 2004 >> MX-5 Miata Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P0032: Ho2S Heater Control Circuit High (Front) >> Notes

DTC P0032: Ho2S Heater Control Circuit High (Front): Notes

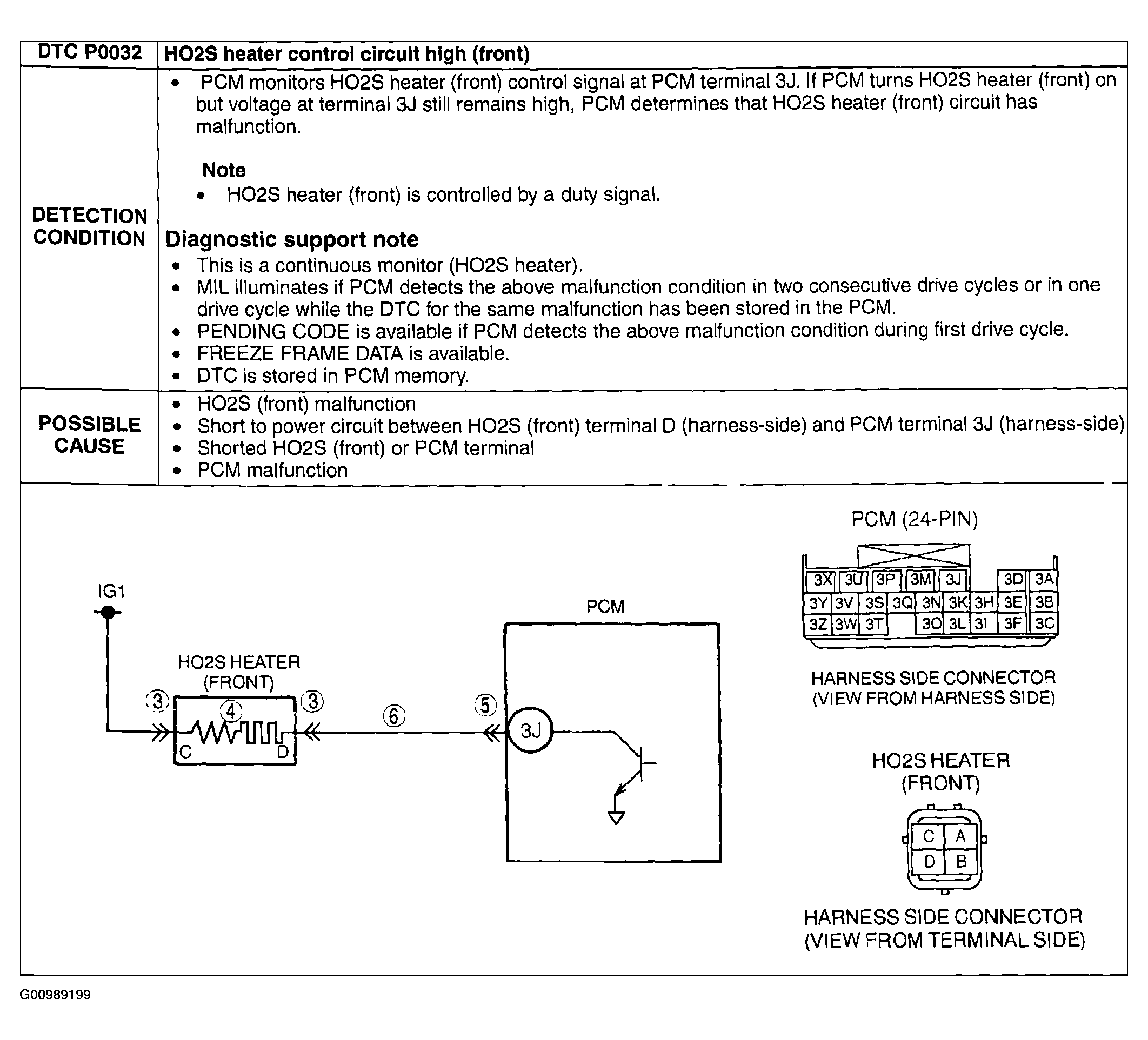

Fig 1: Possible Causes - DTC P0032 [BP, BP With TC]

G00989199

Courtesy of MAZDA MOTORS CORP.
