DTC P0031: Ho2S Heater Control Circuit Low (Front): Notes

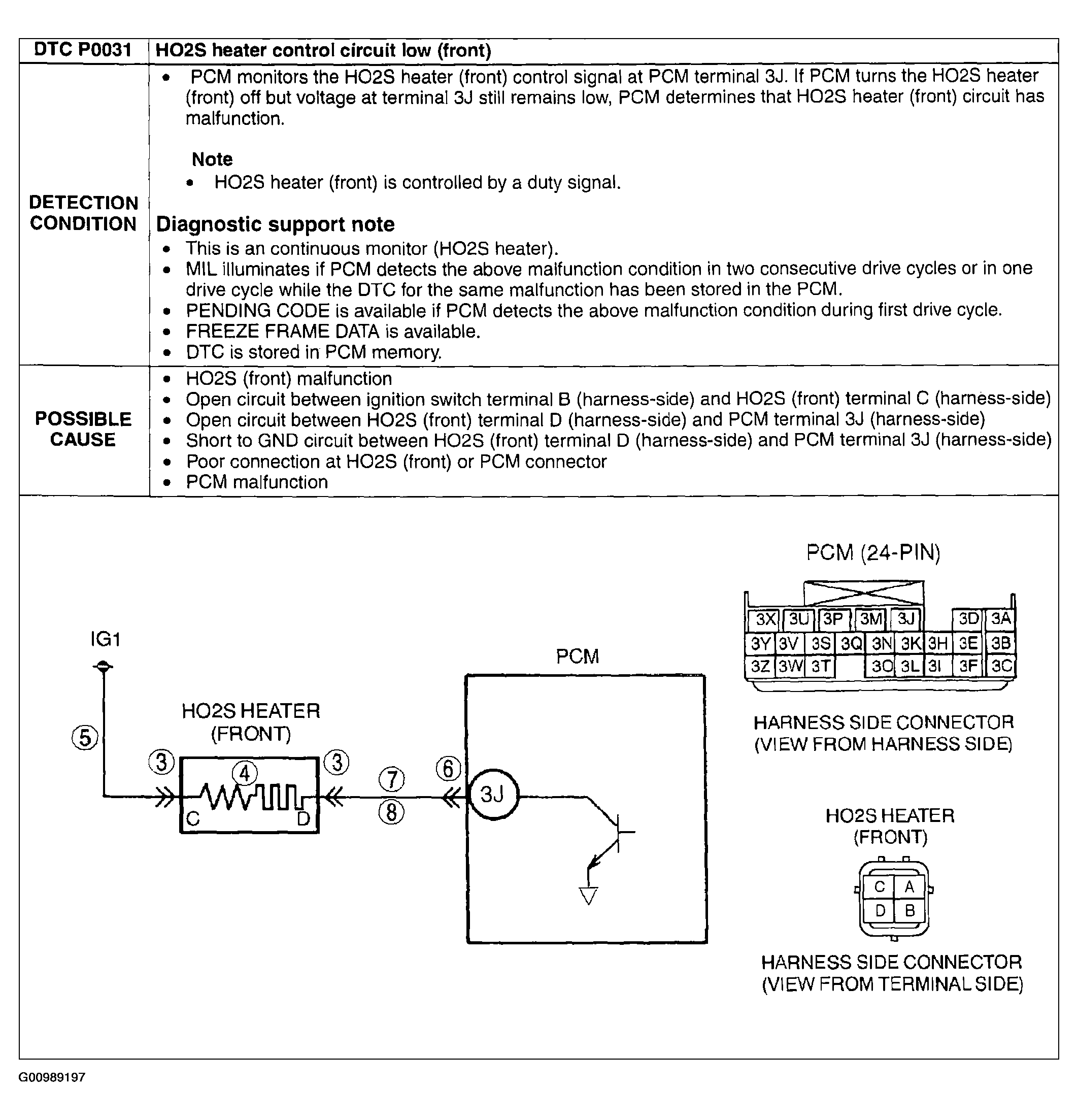

Fig 1: Possible Causes - DTC P0031 [BP, BP With TC]

G00989197

Courtesy of MAZDA MOTORS CORP.
