DTC P0012: [BP] CMP - Timing Over-Retarded: Notes

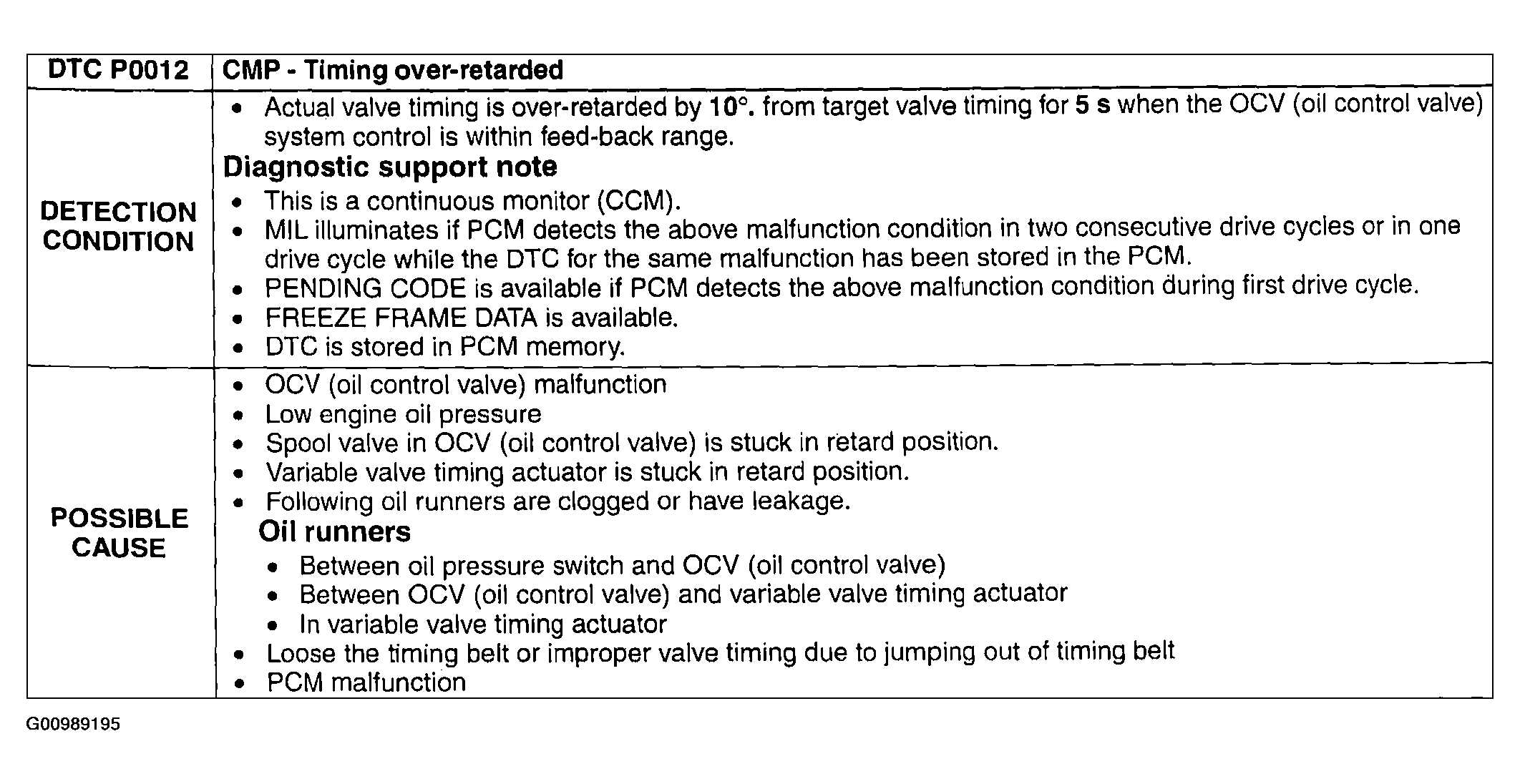

Fig 1: Possible Causes - DTC P0012 [BP]

G00989195

Courtesy of MAZDA MOTORS CORP.
